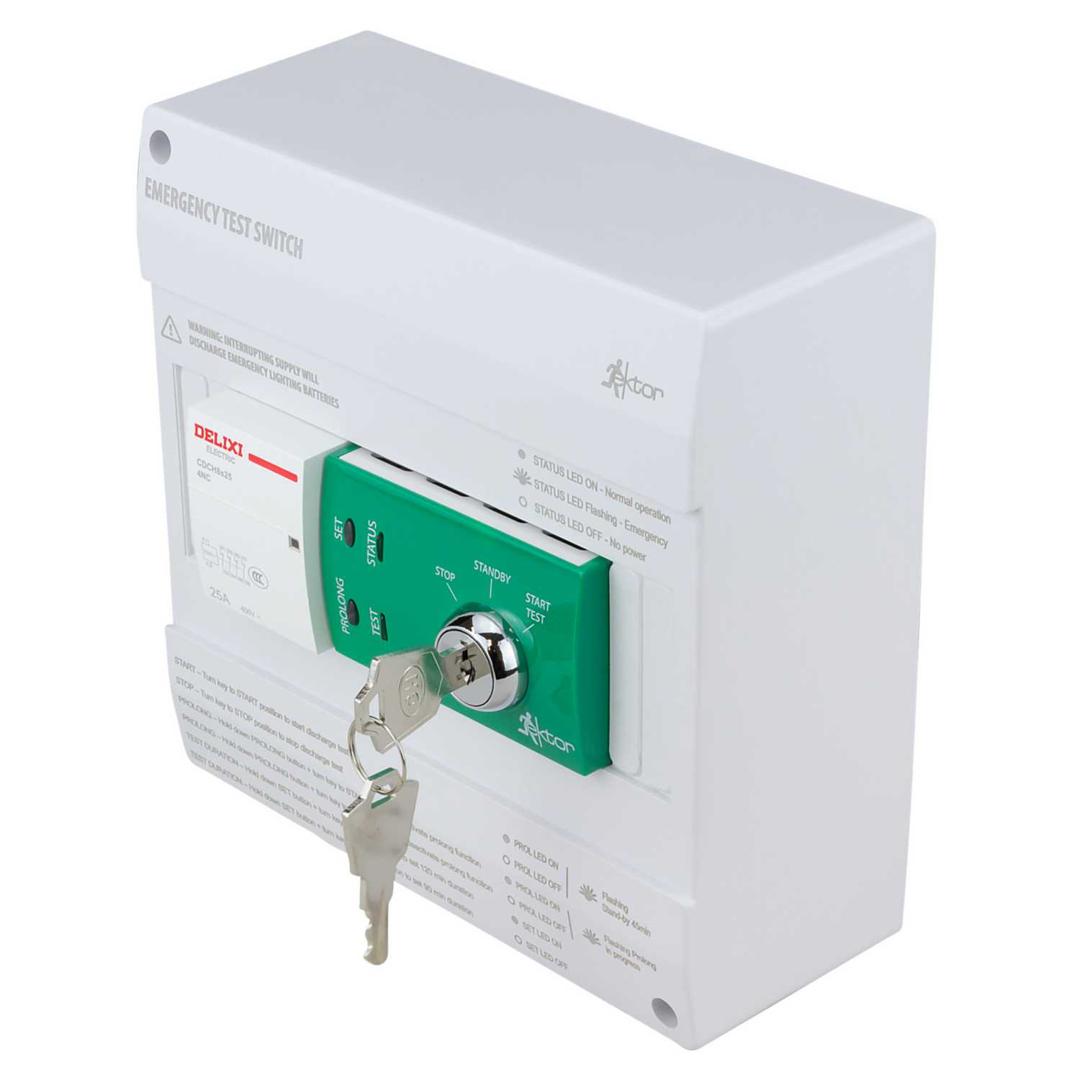

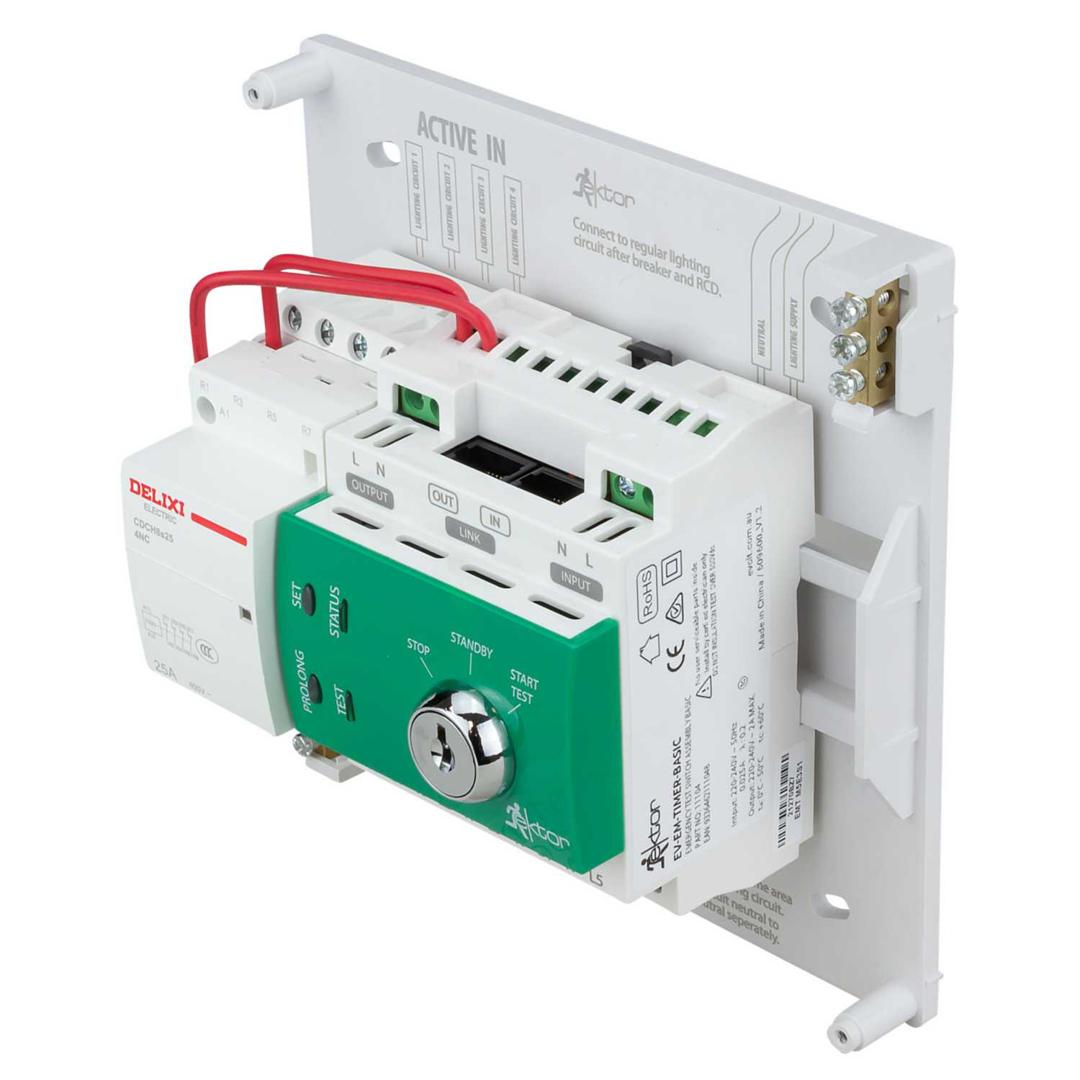

Ektor 4 Pole 25A Emergency Lighting Key Operated Test Switch
Part Number: 11104
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Manual emergency test facility with 4 pole contactor
- Key input used to start and stop emergency tests by triggering the relay/contactor
- Duration of emergency discharge test can be selected for 90 or 120 minutes
- Prolong feature allows devices to remain in emergency mode for an extended time, allowing HID lights time to relight (AS 2293.1:2005 2.3.2)
- Fully enclosed surface mount enclosure
- Fully compliant with AS/NZS 2293
- Rated 16AX for fluorescent or inductive loads
- Ambient Temperature
- 0-40°C
- Colour
- White
- Depth
- 65mm
- Dimensions
- (H)160 mm x (W)160 mm x (D)65 mm
- Guarantee
- 3 Years
- Height
- 160mm
- IP Rating
- IP20
- Material
- Polycarbonate
- Online Search Priority
- 1
- Packaging Types
- Each
- Standards
- AS/NZS 2293
- Timer Adjustment
- 90 mins or 120 mins
- Unspsc V18
- 39111710
- Unspsc V24
- 39111710
- Voltage Rating
- 240V AC
- Weight
- 0.684kg
- Width
- 160mm
