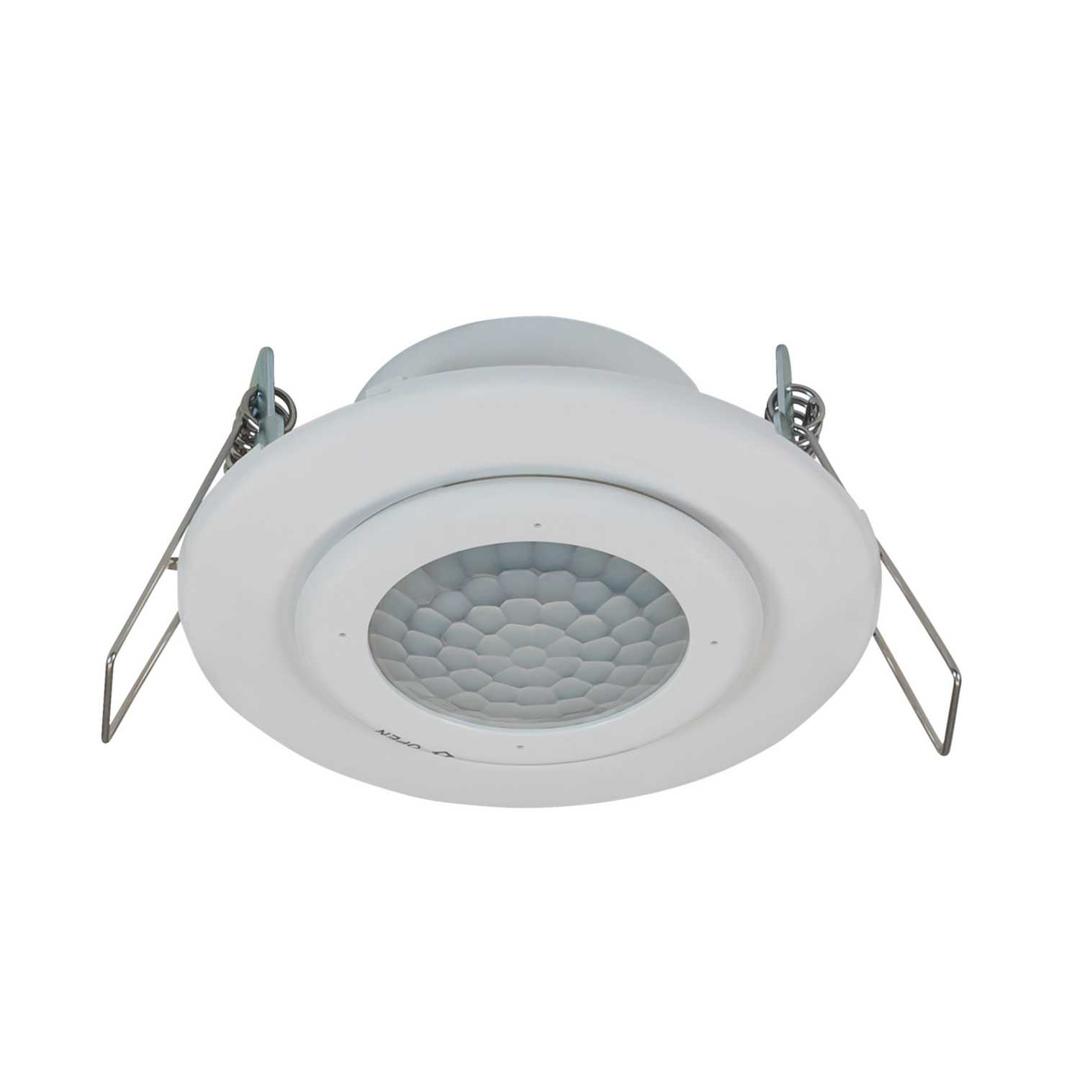

Clipsal 360° Flush Mount Sensor with One Output
Part Number: 753CF1
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Movement detection via passive infrared technology
- Sensing range of 3.5m radius, up to 7m if tilted
- Quick and easy settings for lux level and time

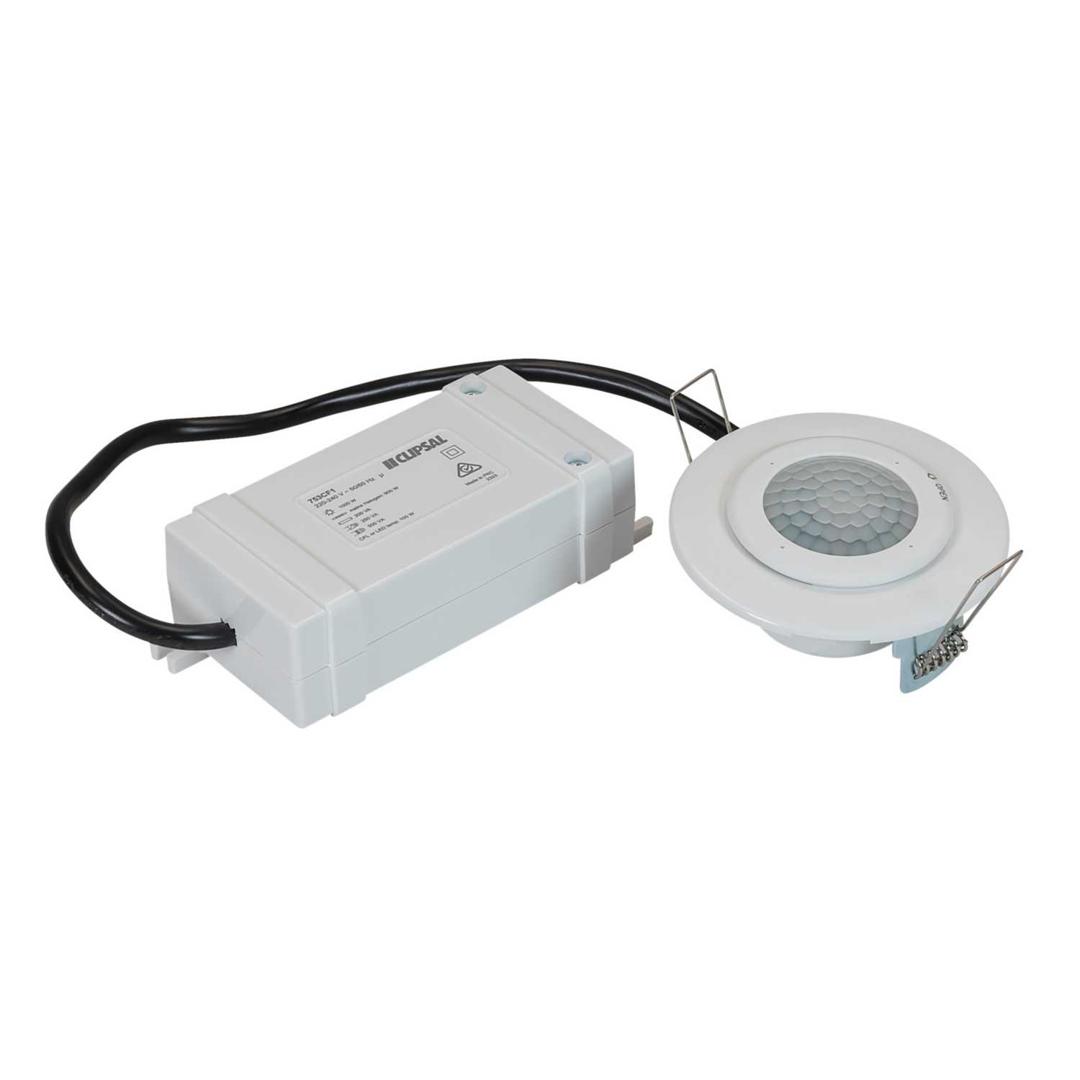

- Consists of sensor and power box to allow for low ceiling spaces

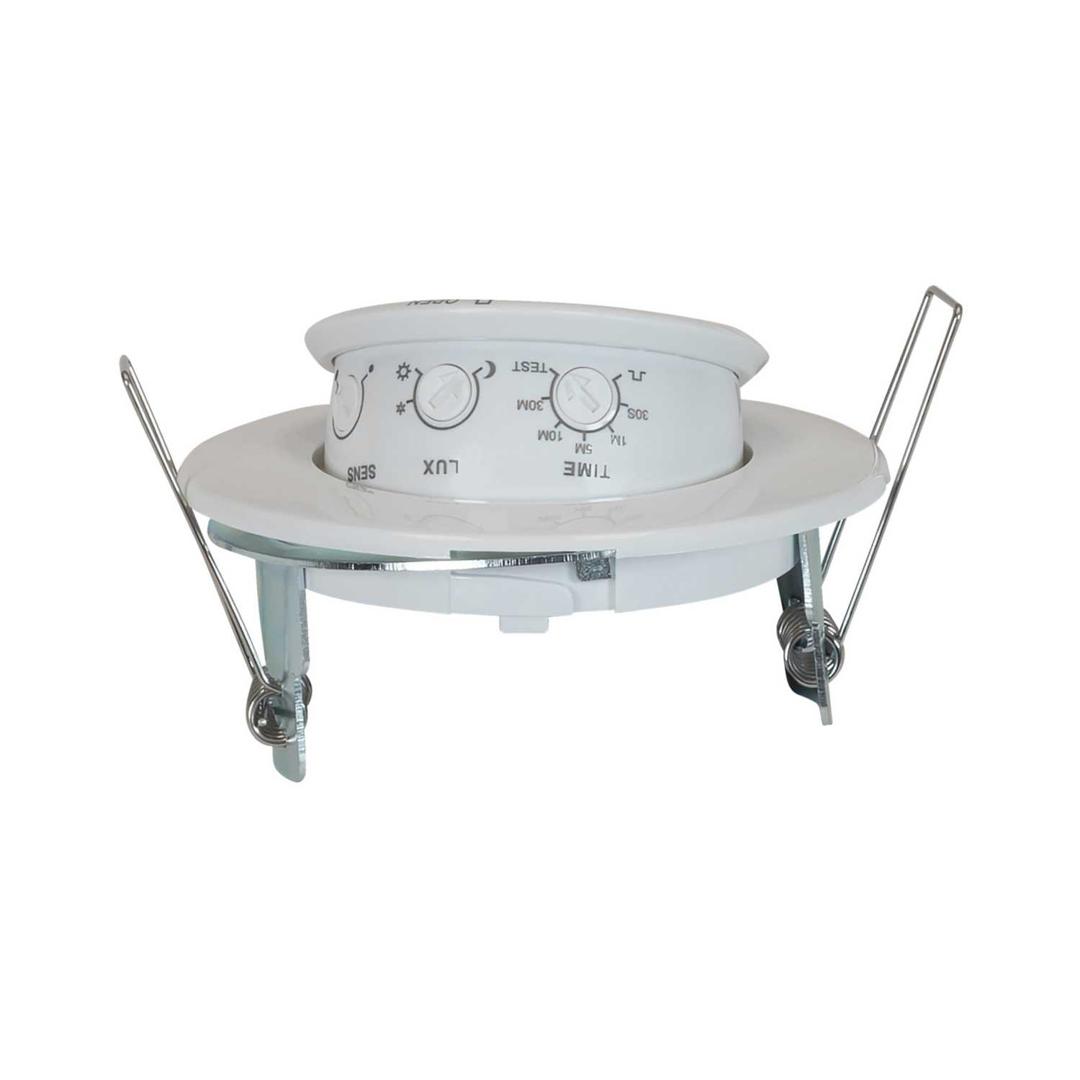

- Gimbled head for range adjustment and easy access to trimpots
- Includes PIR lens mask to shield zones if needed
- Switching capacity 100W LED, 200VA fluorescent, 1000W incandescent
- Colour
- White
- Cut Out
- 63mm
- Depth
- 45mm
- Detection Angle
- 360°
- Detection Range
- 7m
- Diameter
- 80mm
- Dimensions
- (Dia)80 mm x (D)45 mm
- Guarantee
- 1 Year
- Ip Rating
- IP20
- Material
- Metal
- Mounting
- Recessed
- Mounting Height
- 2.5m
- Number Of Wire Connections
- 3
- Override Switch
- No
- Packaging Types
- Each
- Product Range
- Infrascan
- Sensor
- PIR
- Shape
- Round
- Suitable For
- Indoor Use
- Temperature Range
- 0 - +45°C
- Type
- Motion Sensor
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 240V AC
- Weight
- 0.243kg
