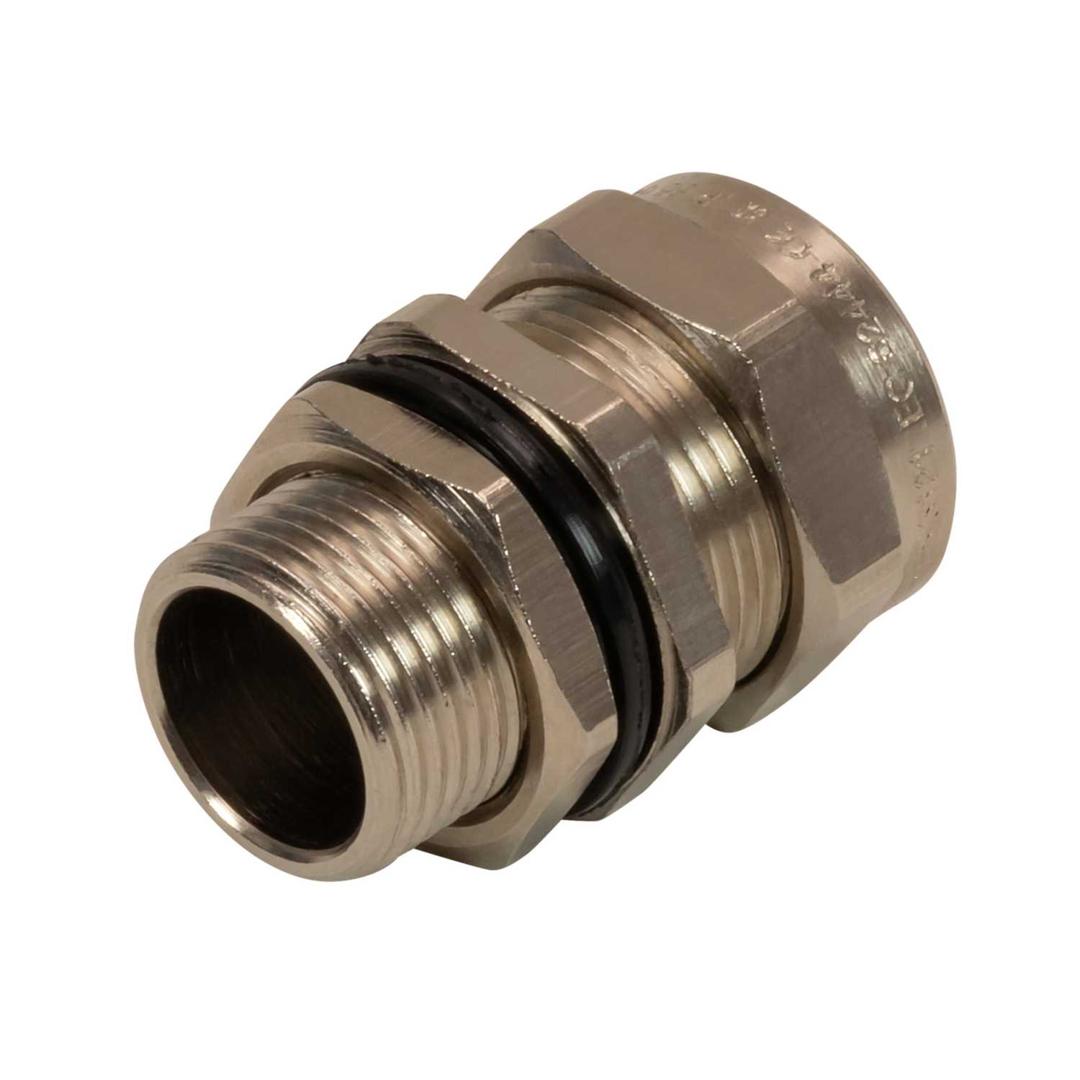

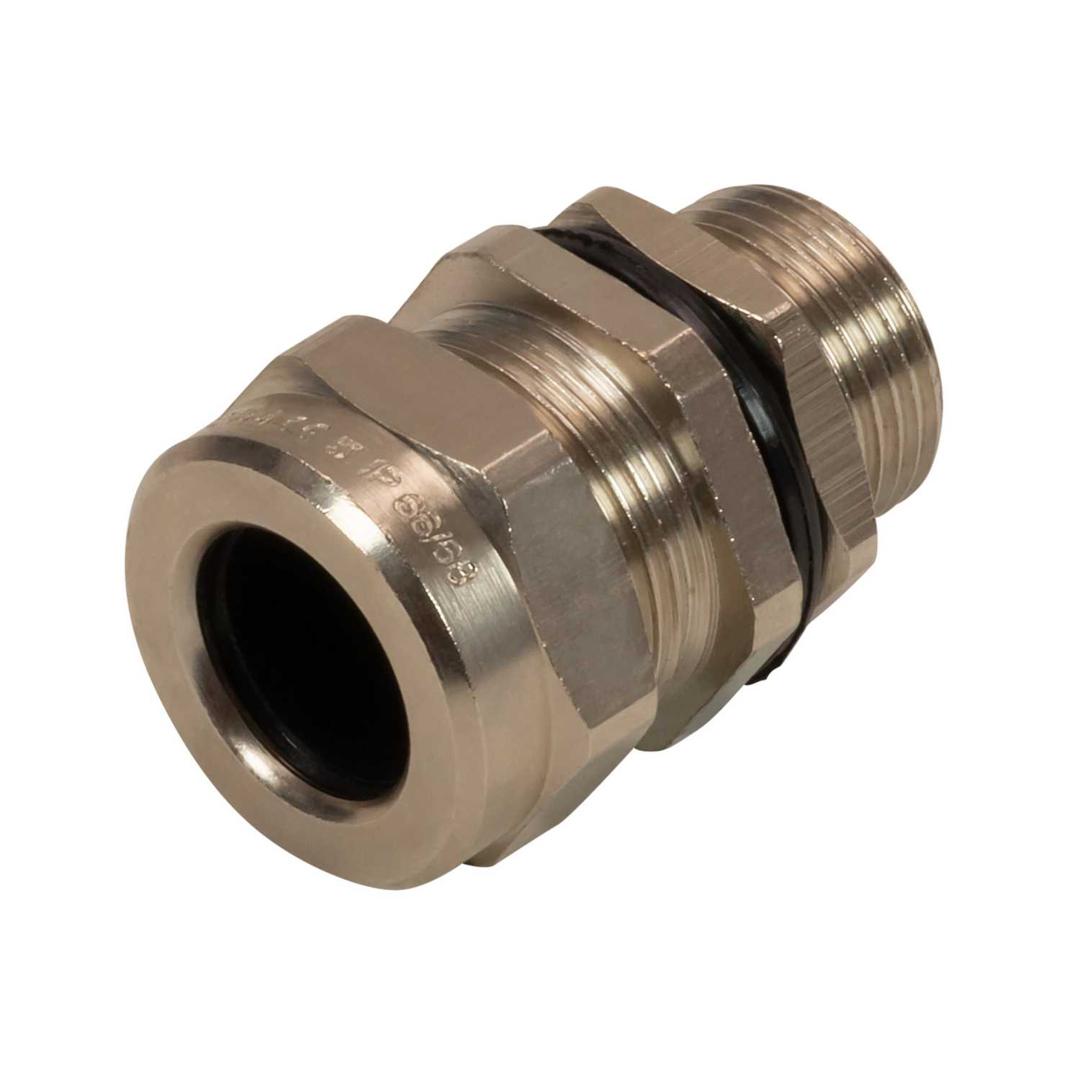

CCG 20mm Metal Compression Cable Gland with Locknut IP68
Part Number: 053501
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Size 20 compression gland for single and multicore unarmoured cable
- For indoor and outdoor use
- Seals the cable sheath to IP66/68
- Specially formulated elastomeric seals
- Precision manufactured from high-quality brass (nickel plated) available in aluminium or stainless steel 316/316L on request
- Complete with heavy-duty locknut
- Supplied with a thread-sealing gasket (parallel threads only)
- Cable Size Range
- 11-15mm²
- Colour
- Silver
- Diameter
- 20mm
- Dimensions
- (L)34 mm x (Dia)20 mm
- Finish
- Nickel Plated
- Guarantee
- 1 Year
- Ip Rating
- IP68
- Length
- 34mm
- Material
- Brass
- Packaging Types
- Each
- Product Range
- A2
- Standards
- AS/NZS 3000
- Supplied With
- Thread Sealing Gasket, Locknut
- Thread Size
- 20mm
- Type
- Metal Compression Gland
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 0.062kg
