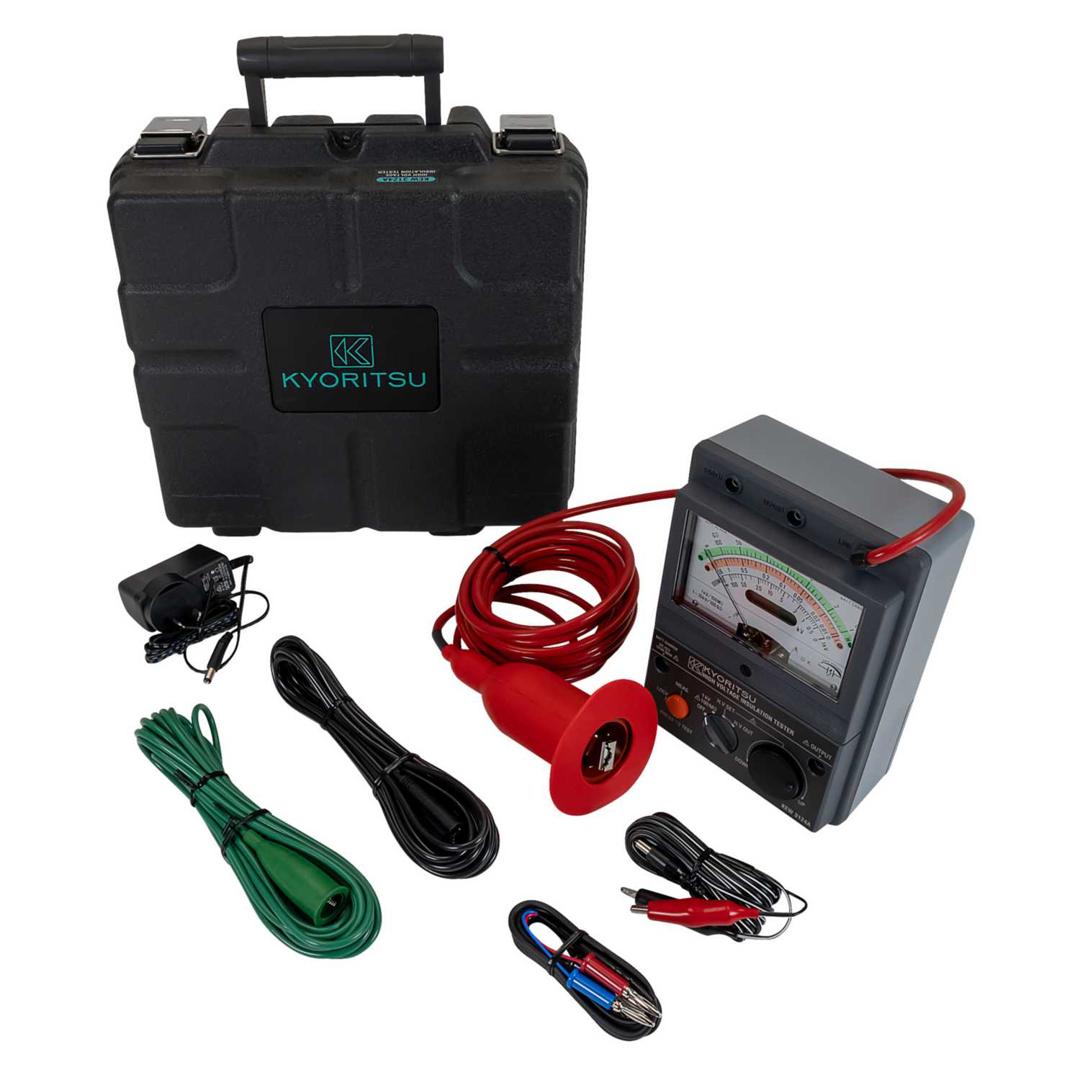

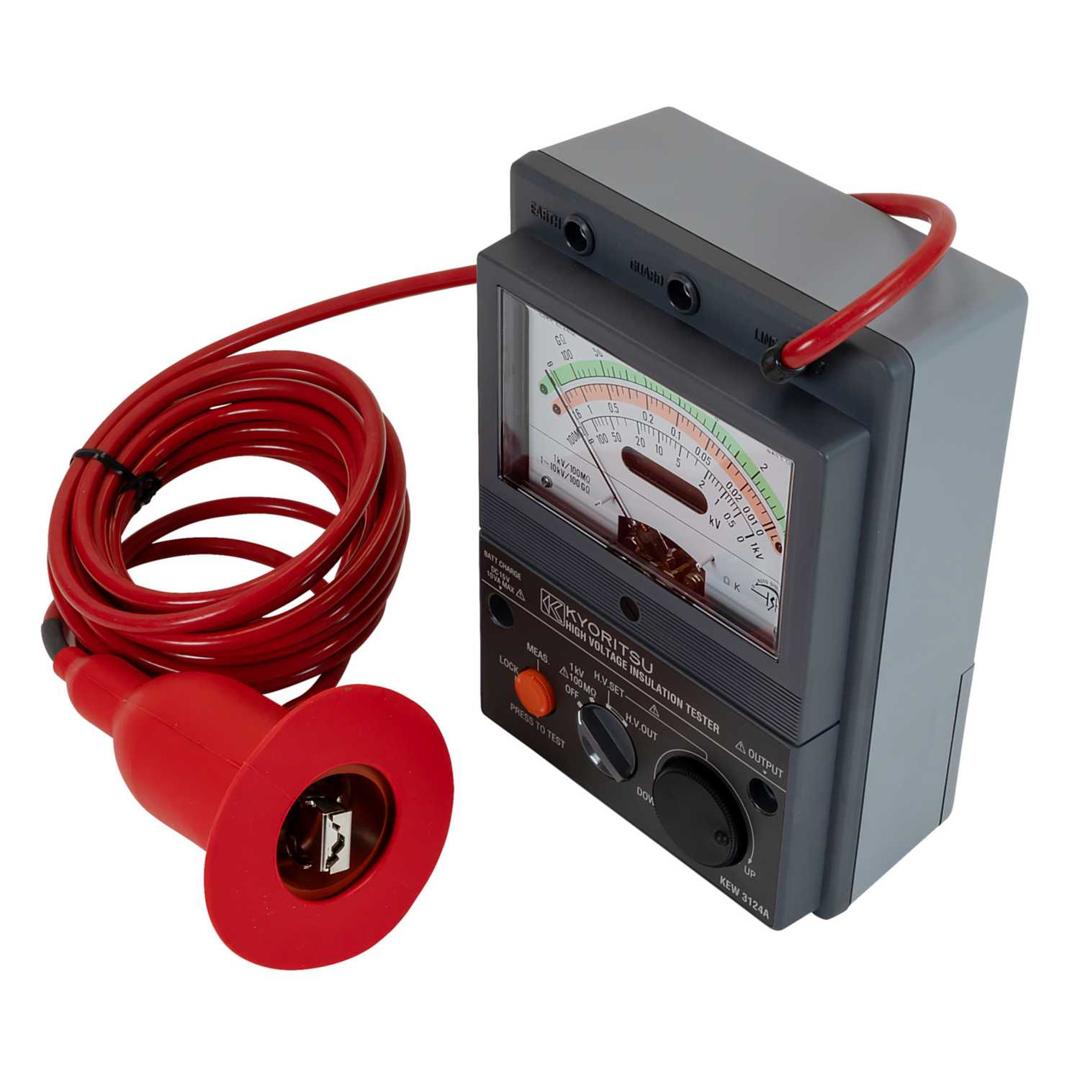

Kyoritsu 1kV-10kV High Voltage Insulation Tester
Part Number: 03124A229A
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Permits a wide range of insulation testing up to 100GΩ at variable test voltage from 1kV to 10kV
- DC voltage output for recorders
- Output voltage is shown on the digital display
- After tests, automatically discharges the charges stored in the circuit under test
- Operates with Ni-MH rechargeable batteries
- Accuracy Continuity Range
- ±10%rdg
- Battery Level Indicator
- Yes
- Battery Type
- NiMH
- Colour
- Grey/Black
- Continuity Check
- Yes
- Depth
- 80mm
- Dimensions
- (L)200 mm x (W)140 mm x (D)80 mm
- Display Type
- Analogue
- Guarantee
- 1 Year
- Length
- 200mm
- Material
- Plastic
- Number Of Batteries
- 8
- Packaging Types
- Each
- Previously Known As
- 3124A
- Product Range
- Insulation and Continuity
- Resistance
- 100 MΩ
- Type
- Insulation and Continuity Tester
- Unspsc V18
- 41113624
- Unspsc V24
- 41113624
- Weight
- 3.655kg
- Width
- 140mm
