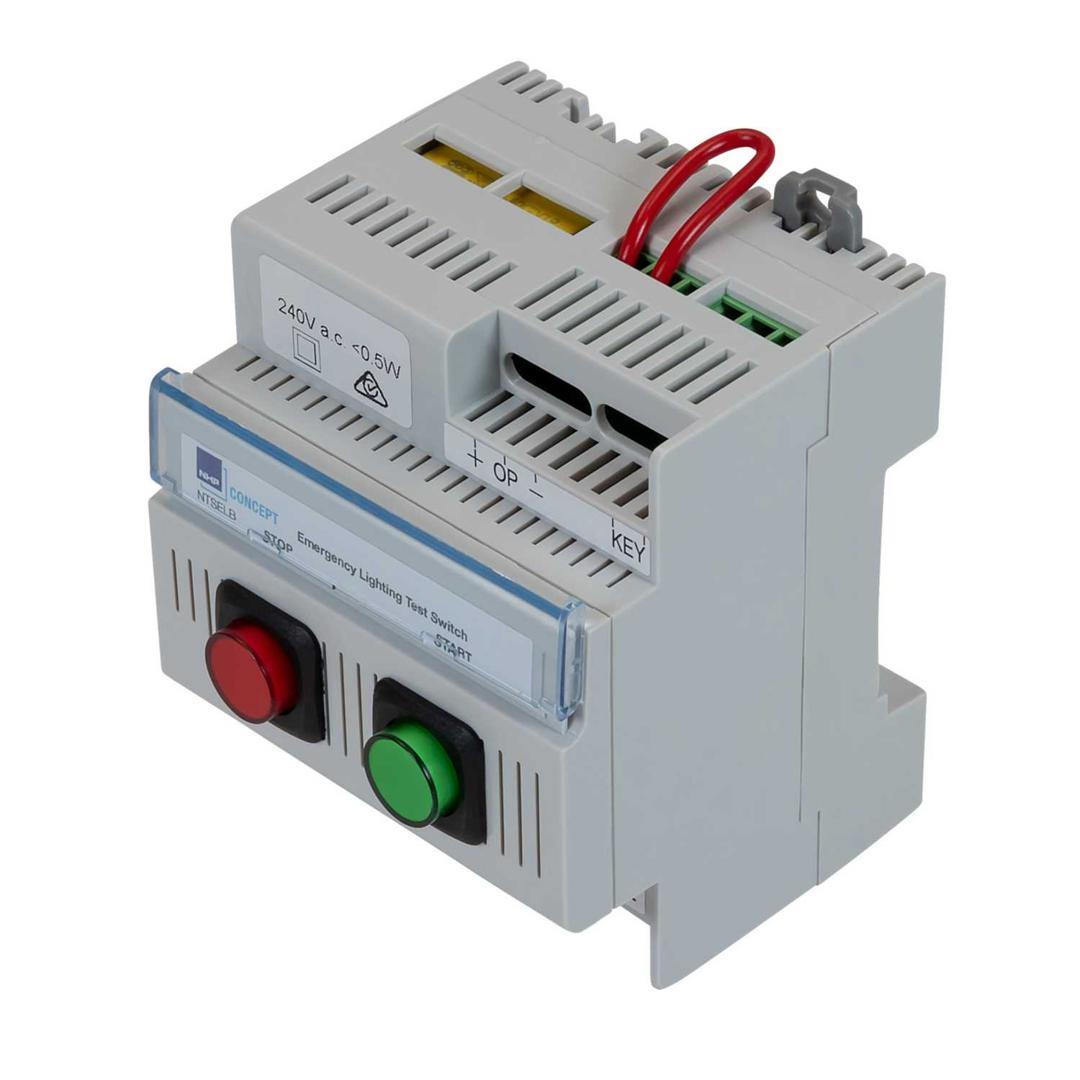

NHP Concept Panelboard Pushbutton Emergency Lighting Test Switch
Part Number: CELAELK1W
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Pushbutton operation
- Emergency lighting test switch, to semi automate the testing of emergency lighting
- Test switch is one central point to trigger emergency lights for required regular testing
- Easily able to be retrofit into panelboards to allow regular maintenance testing of single point emergency lights

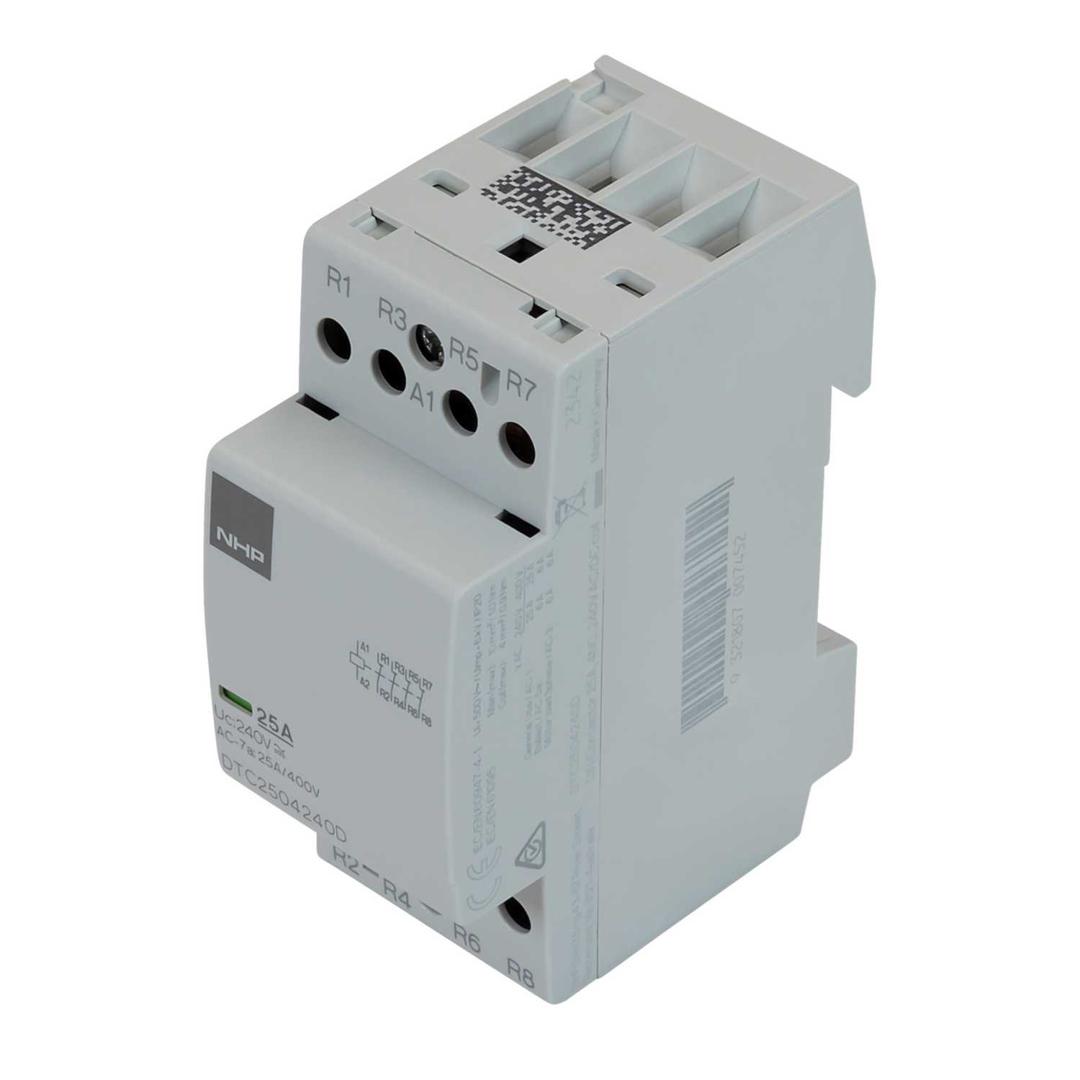

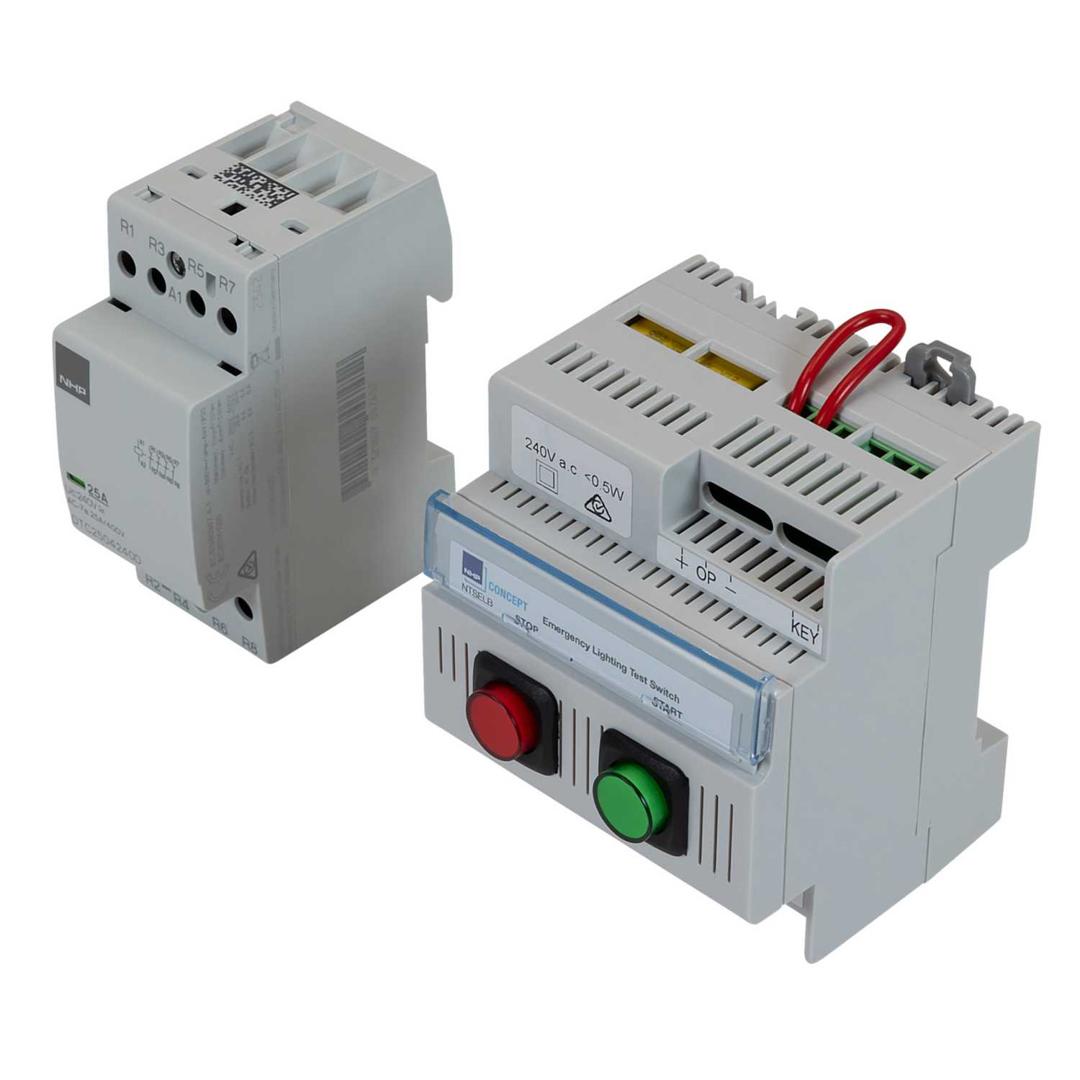

- Kit comes complete with contactor with 4 N/C contacts, rated at 25A additional contactors can be piggybacked
- Timer can be set for 120mins (initial test) or 90 mins (regular test)
- Unit comes complete with labels to easily identify supply MCBs
- Ambient Temperature
- 10-40°C
- Colour
- White
- Current Rating
- 25A
- Dimensions
- (H)78 mm x (W)160 mm
- Guarantee
- 1 Year
- Height
- 78mm
- Ip Rating
- IP20
- Material
- Plastic
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- Concept
- Remote Control
- No
- Shape
- Rectangular
- Timer Adjustment
- 90 mins or 120 mins
- Type
- Emergency Lighting Test Unit
- Unspsc V18
- 39111710
- Unspsc V24
- 39111710
- Voltage Rating
- 240V AC
- Weight
- 0.503kg
- Width
- 160mm
