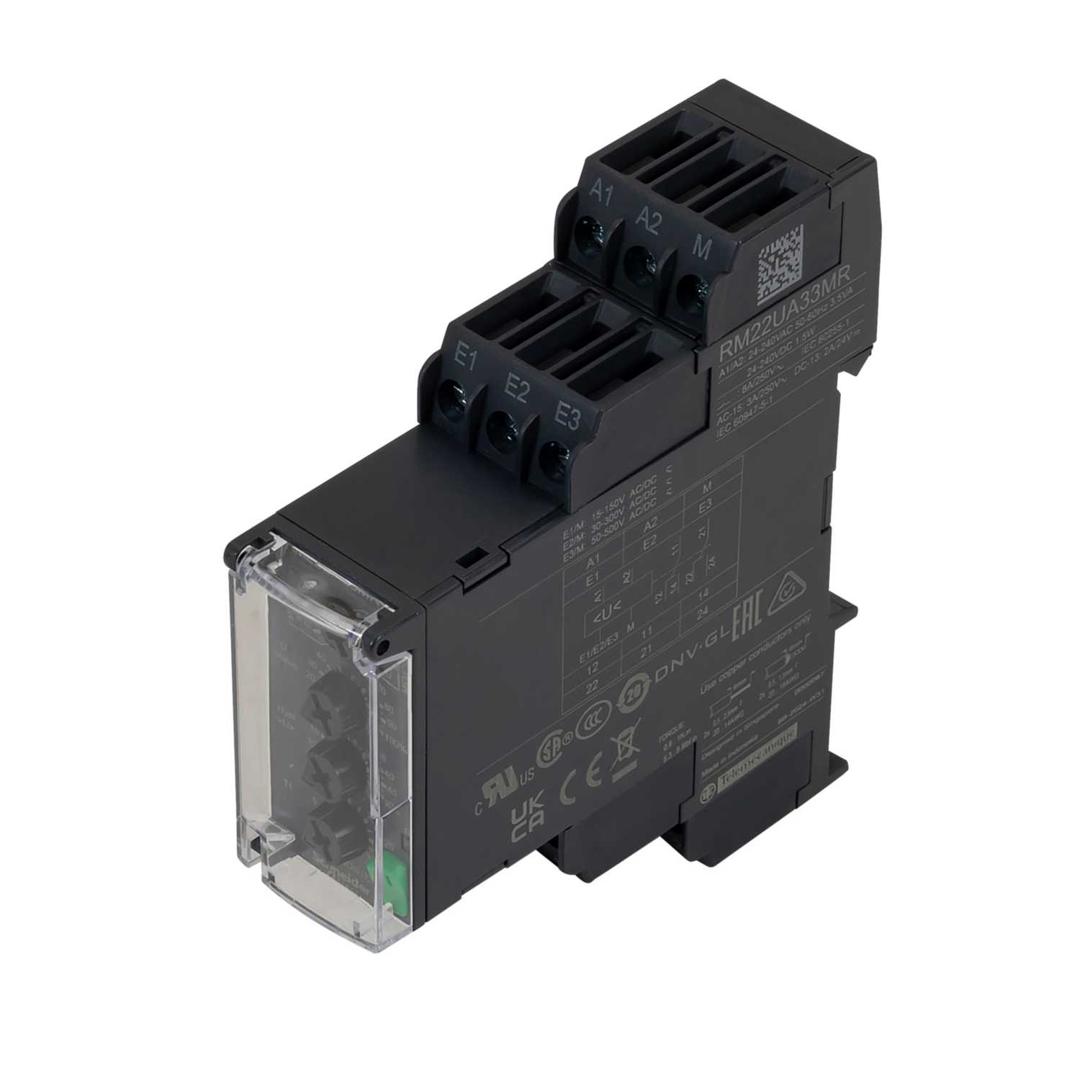

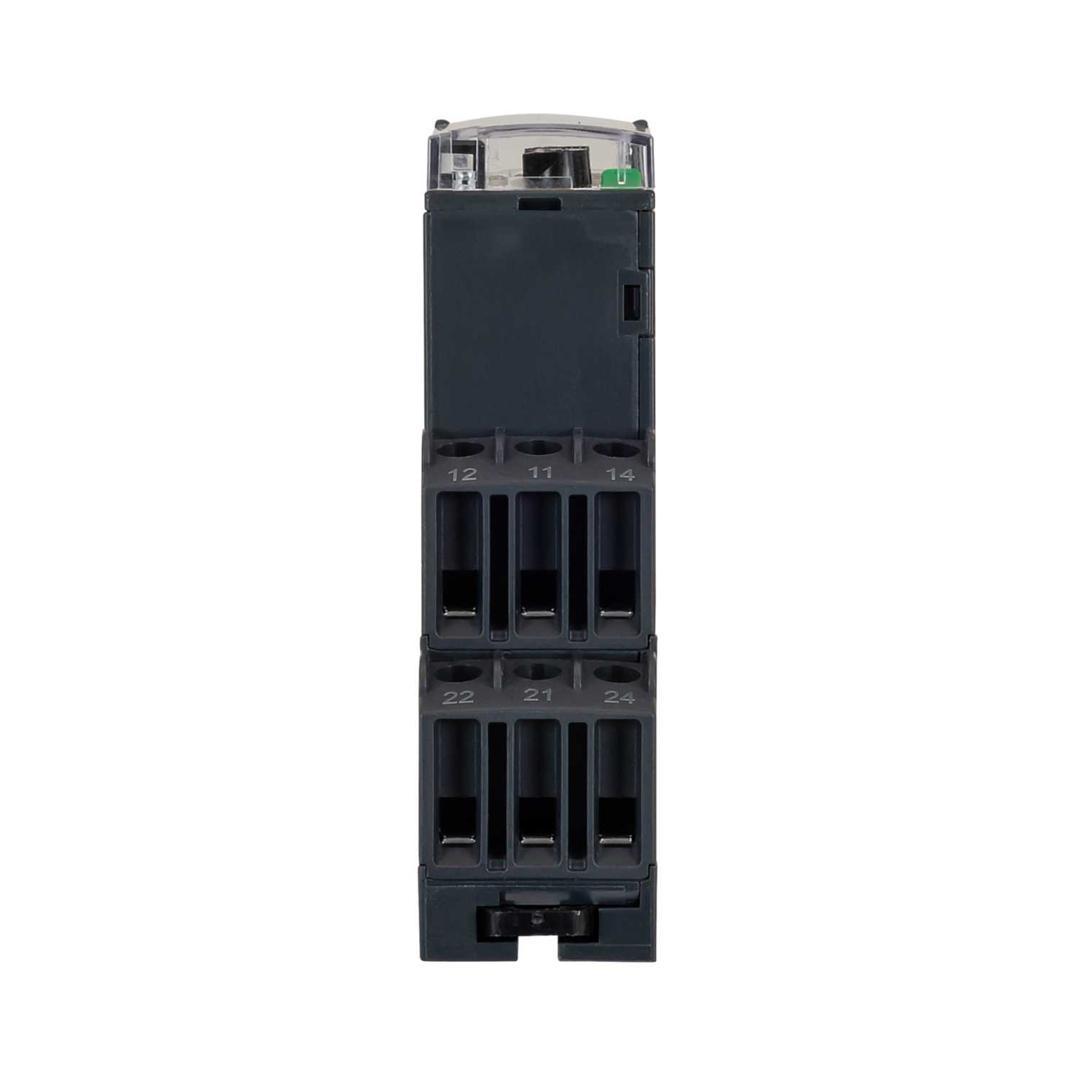

Schneider Harmony 2CO 15-500V AC/DC 8A 1 Phase Voltage Control Relay
Part Number: RM22UA33MR
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Overvoltage or undervoltage detection
- Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
- 2,000VA switching capacity
- DIN rail mounted
- IEC 60947
- Changeover
- Yes
- Colour
- Dark Grey
- Contact Configuration
- 2 CO
- Current Rating
- 8A
- Depth
- 79.5mm
- Dimensions
- (H)90 mm x (W)22.5 mm x (D)79.5 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 90mm
- Ip Rating
- IP20
- Material
- Self-Extinguishing Plastic
- Mounting
- Din Rail
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- Harmony
- Standards
- IEC 60255-1
- Type
- Control Relay
- Unspsc V18
- 39122331
- Unspsc V24
- 39122331
- Voltage Range
- 15-500V AC/DC
- Voltage Rating
- 500
- Weight
- 0.124kg
- Width
- 22.5mm
