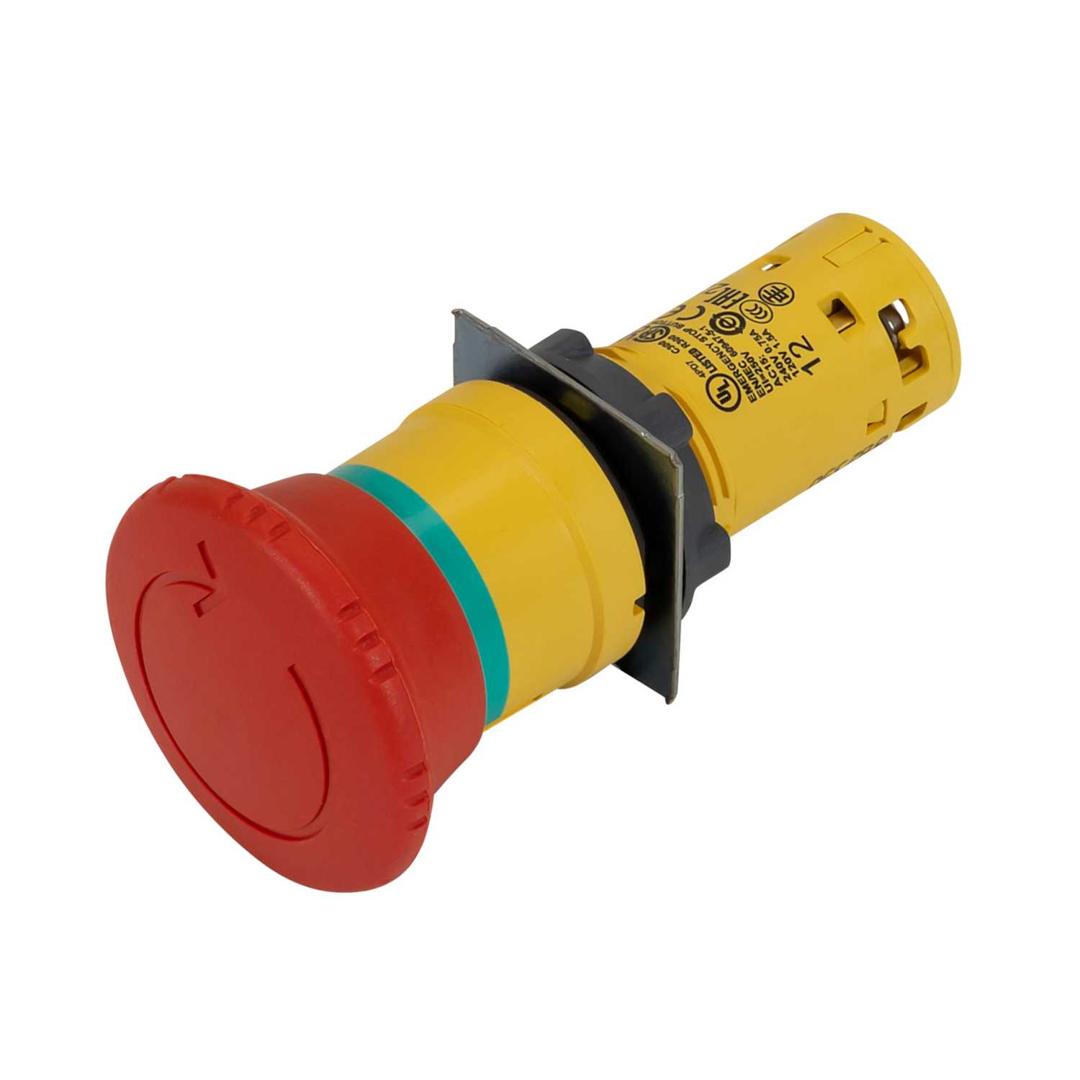

Schneider Harmony XB7 40mm Monolithic Emergency Stop Twist to Release Pushbutton Red
Part Number: XB7NS8444
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Emergency Stop Ø 40mm turn to release red 2NC
- Emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off)

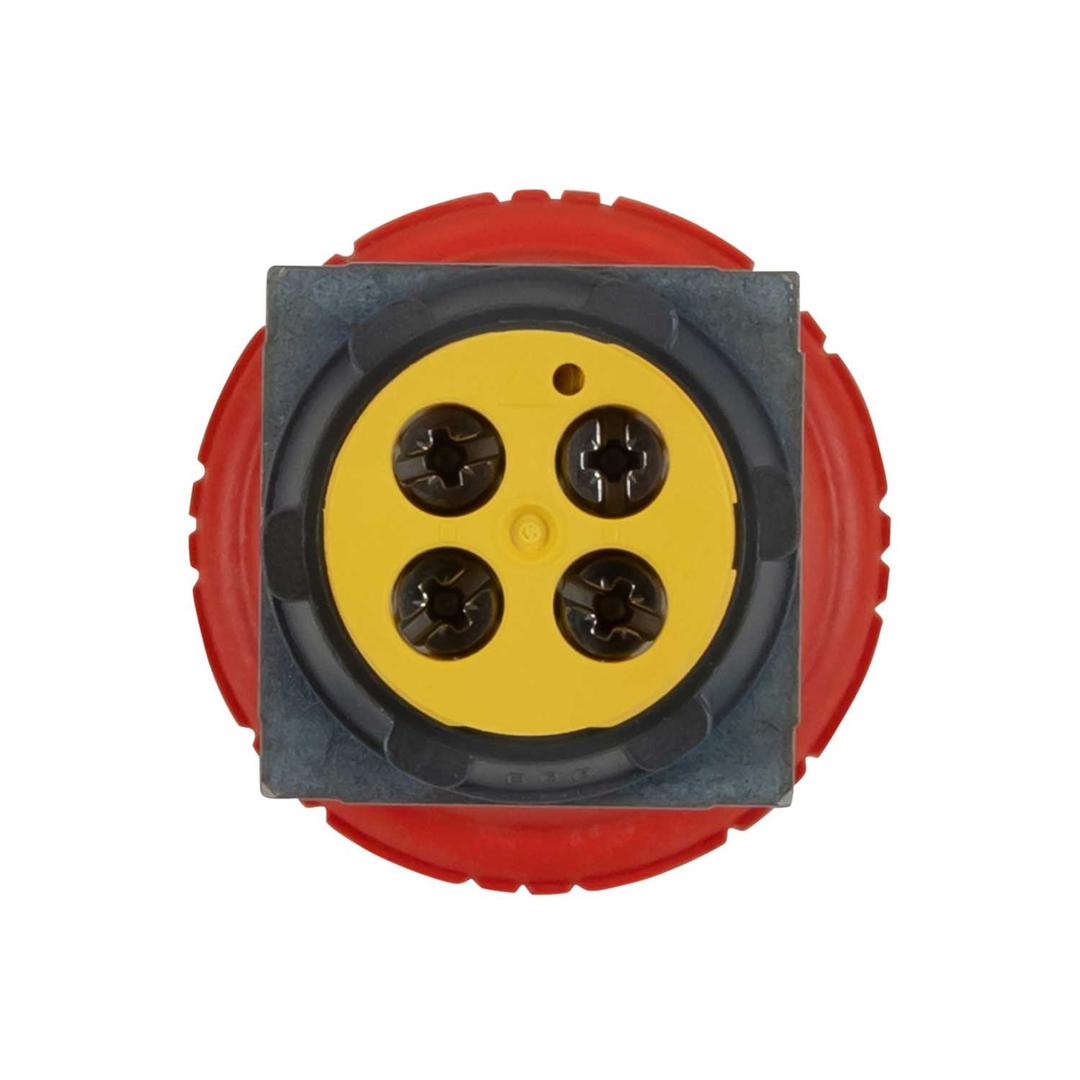

- Easily installed into a standard 22.5mm diameter cut-outs and connected with simple screw-clamp connections
- Clearly distinguishable visually at a distance due to a red colour and a prominent 40mm mushroom shape
- Impact resistant, dust resistant, water resistant and vibration resistant
- Colour
- Red/Yellow
- Contact Configuration
- 2 NC
- Cut Out
- 22.5mm
- Depth
- 43mm
- Diameter
- 40mm
- Dimensions
- (Dia)40 mm x (H)38 mm x (D)43 mm
- Guarantee
- 18 Months
- Height
- 38mm
- Ip Rating
- IP66
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Operation Type
- Latching Turn Release
- Packaging Types
- Each
- Product Range
- Harmony XB7
- Standards
- IEC 60204-1 IEC 60947-5-1 IEC 60947-1 IEC 60947-5-5 IEC 60364-5-53
- Storage Temperature Range
- -40-70°C
- Type
- Emergency Stop
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.054kg
