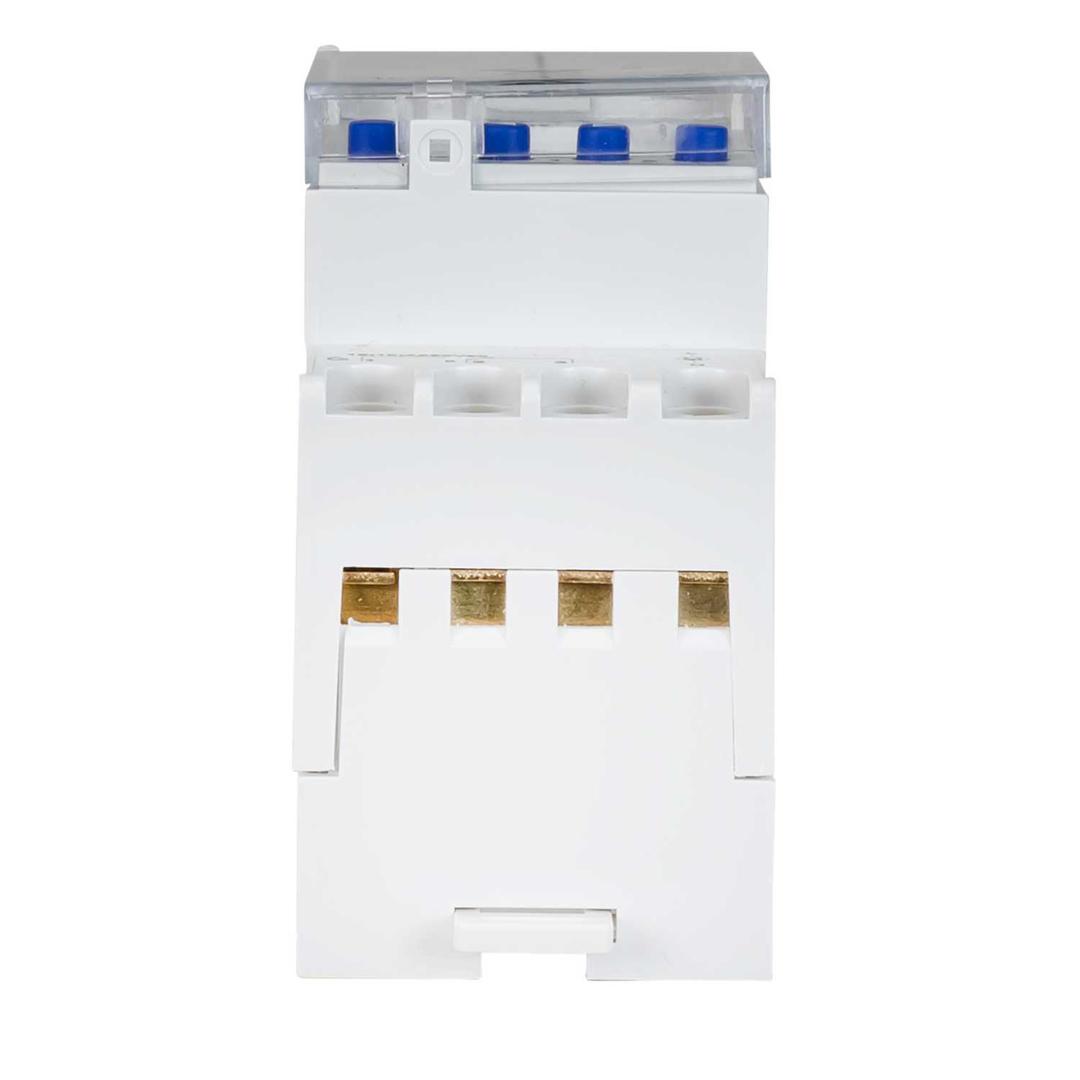

IMO 24 Hour 7 Day DIN Mount Timer
Part Number: SDT-20-1C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- General purpose timer switch
- 85-265VAC
- 16amps max. switching current (Resistive)
- Single pole changeover
- Daily, weekly, pulse and cycle programs
- Repeat program (multiple daily settings)
- DIN rail mounting (TS 35)
- LCD display
- Battery backup (up to 5 years)
- Manual override button
- Battery Back Up
- No
- Changeover
- Yes
- Colour
- Grey
- Contact Configuration
- 1 CO
- Cover Type
- Transparent Hinged Cover
- Current Rating
- 16A
- Depth
- 65.5mm
- Dimensions
- (H)86.5 mm x (W)36 mm x (D)65.5 mm
- Frequency
- 50/60 Hz
- Guarantee
- 2 Years
- Height
- 86.5mm
- IP Rating
- IP20
- Manual Override
- Yes
- Material
- Self-extinguishing Plastic
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- -10°C
- Minimum Time Settings
- 1s
- Mounting
- DIN Rail
- Operation Type
- Timer
- Packaging Types
- Each
- Resistive Load
- 16A
- Standards
- EN 60730-1
- Timer Configuration
- 1 sec - 7 days
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Rating
- 250V AC
- Weight
- 0.141kg
- Width
- 36mm
