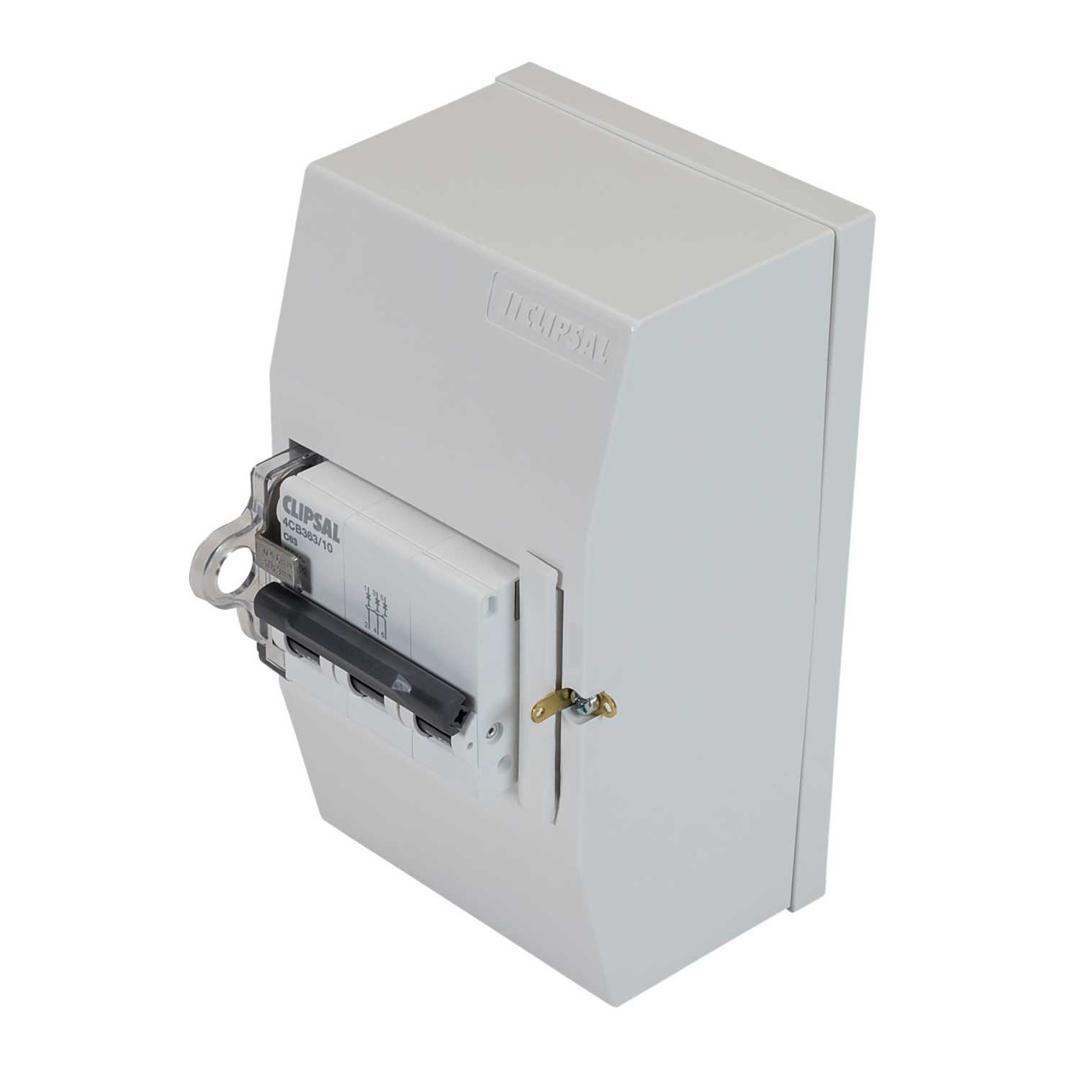

Clipsal 63A 3 Pole 10kA C Curve MAX4 Enclosed MCB White
Part Number: SAUPW363
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

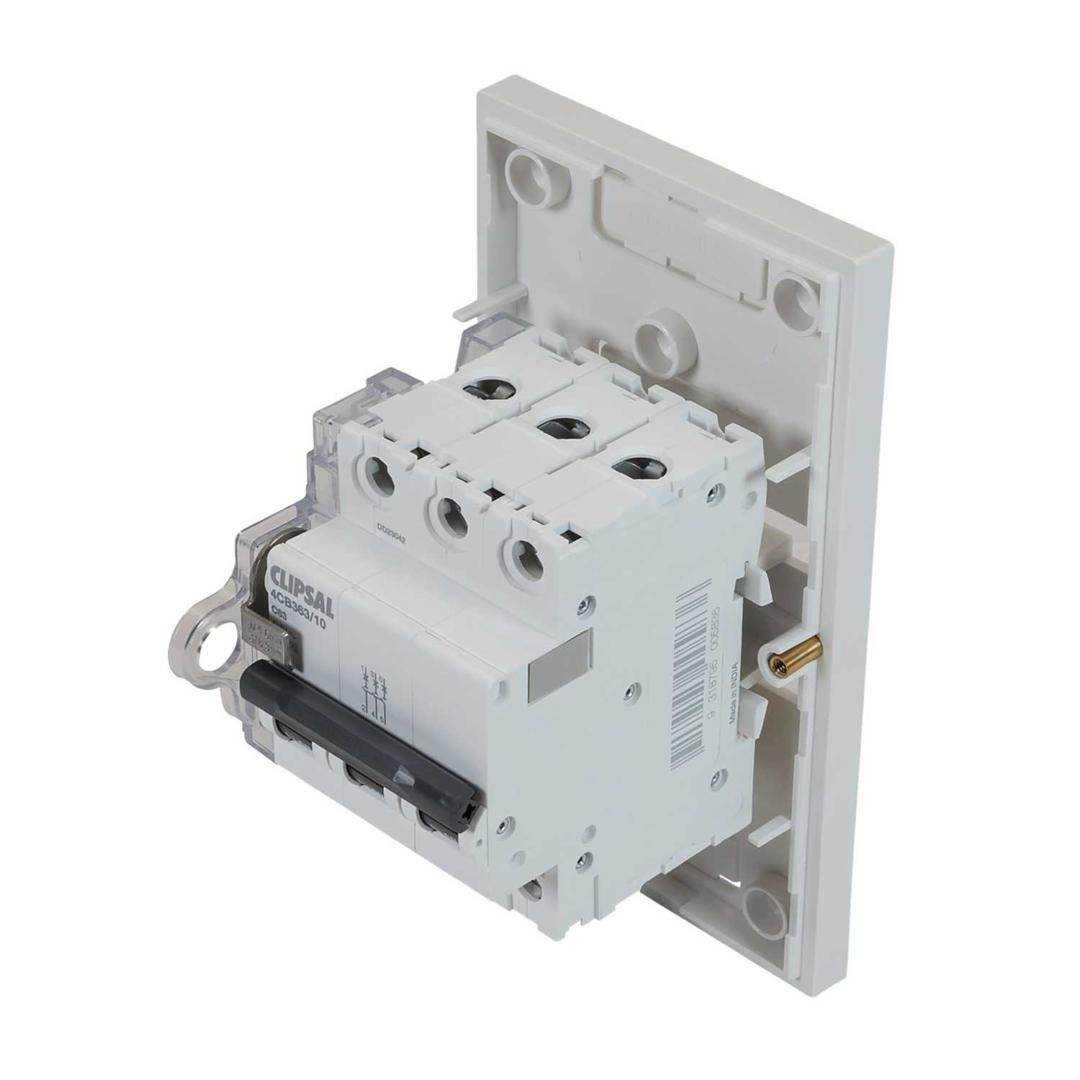

- MCB installed in an enclosure
- 3 phase miniature circuit breaker
- Thermal-magnetic tripping for overload and short circuit protection
- Positive contact indication
- Lift-up terminals. ‘no hot spot’ terminations and all cable strands are locked in
- Clipsal MCBs allow line or load cables to be connected at either top or bottom for greater installation flexibility
- Includes, sealing kit, pole filler and padlock kit
- Colour
- White
- Current Rating
- 63A
- Depth
- 95mm
- Dimensions
- (H)153 mm x (W)88 mm x (D)95 mm
- Guarantee
- 1 Year
- Height
- 153mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 3
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- MAX9
- Short Circuit Rating
- 10kA
- Standards
- AS/NZS 60898
- Tripping Characteristics
- C Curve
- Type
- Enclosed MCB
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 415V AC
- Weight
- 0.54kg
- Width
- 88mm
