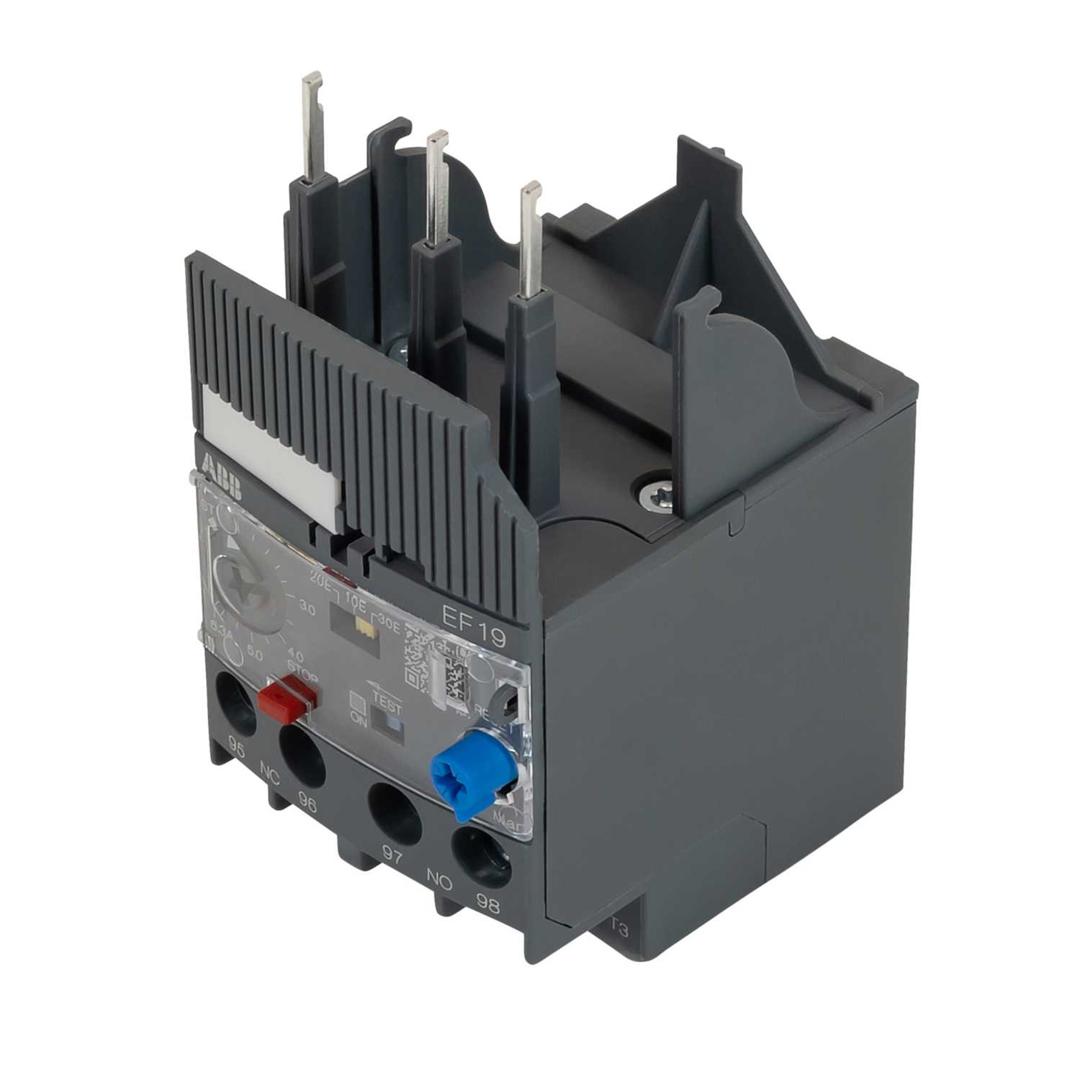

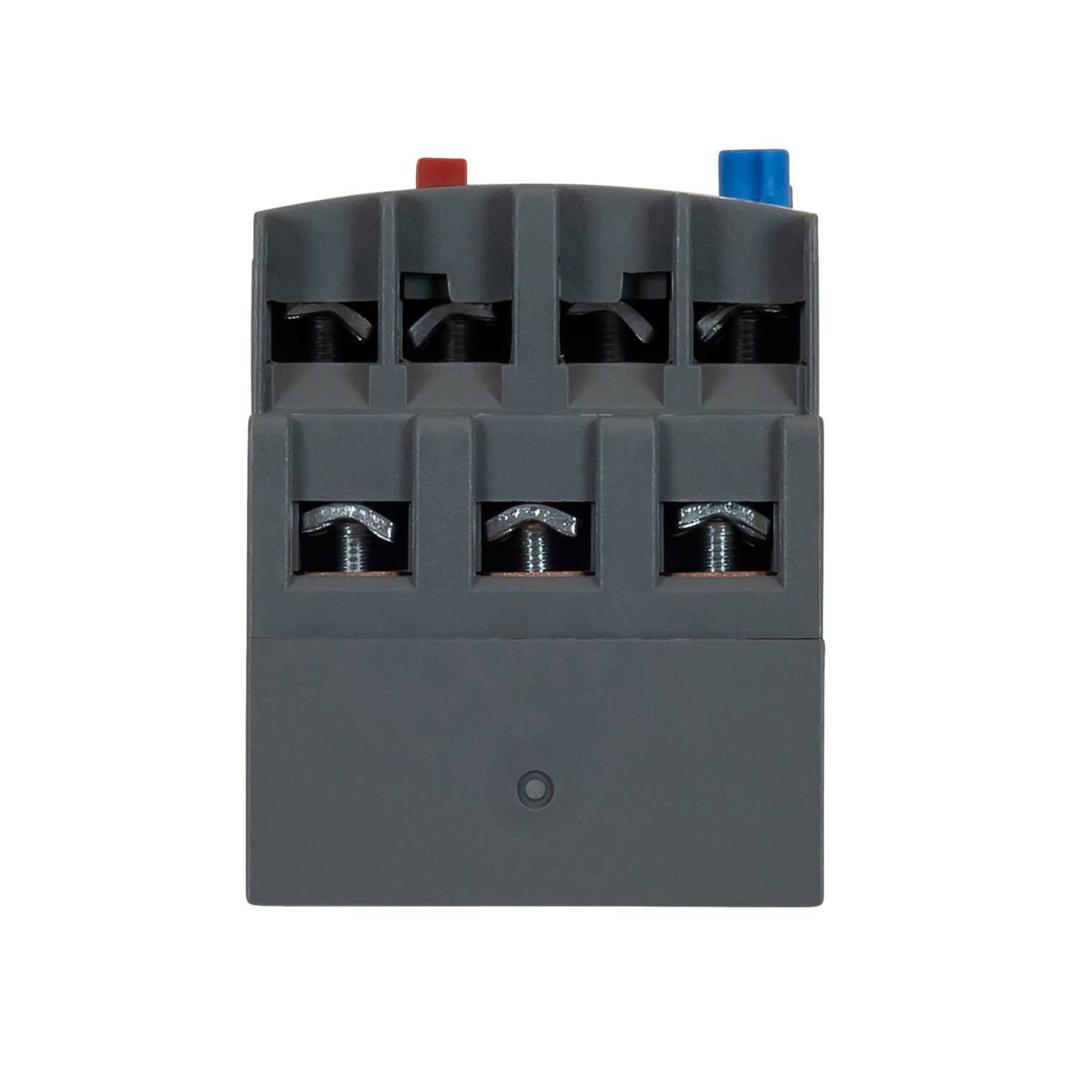

ABB 1.9-6.3A EF19 Electronic Overload Relay
Part Number: EF19-6.3
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Self-supplied electronic overload relay, connected directly to the contactor which means no extra external supply is needed
- Overload protection with phase loss sensitivity
- Selectable trip class (10E, 20E, 30E)
- Adjustable current setting ranges
- Temperature compensation up to 70°C
- Automatic or manual reset, sealable
- Suitable for AF09, AF12, AF16 and AF26 contactors
- Colour
- Grey
- Depth
- 59.3mm
- Dimensions
- (H)85 mm x (W)44.4 mm x (D)59.3 mm
- Guarantee
- 1 Year
- Height
- 85mm
- Material
- Plastic
- Mounting
- Bottom
- Number Of Pins
- 3
- Operating Temperature Range
- -25 - 70°C
- Overload Rating
- 1.9 - 6.3A
- Packaging Types
- Each
- Product Range
- EF
- Standards
- EN 60947-1 EN 60947-4-1 EN 60947-5-1 UL 60947-1 UL 60947-4-1
- Torque Settings
- 1.5 N m
- Type
- Electronic Overload Relay
- Unspsc V18
- 39122330
- Unspsc V24
- 39122330
- Weight
- 0.158kg
- Width
- 44.4mm
