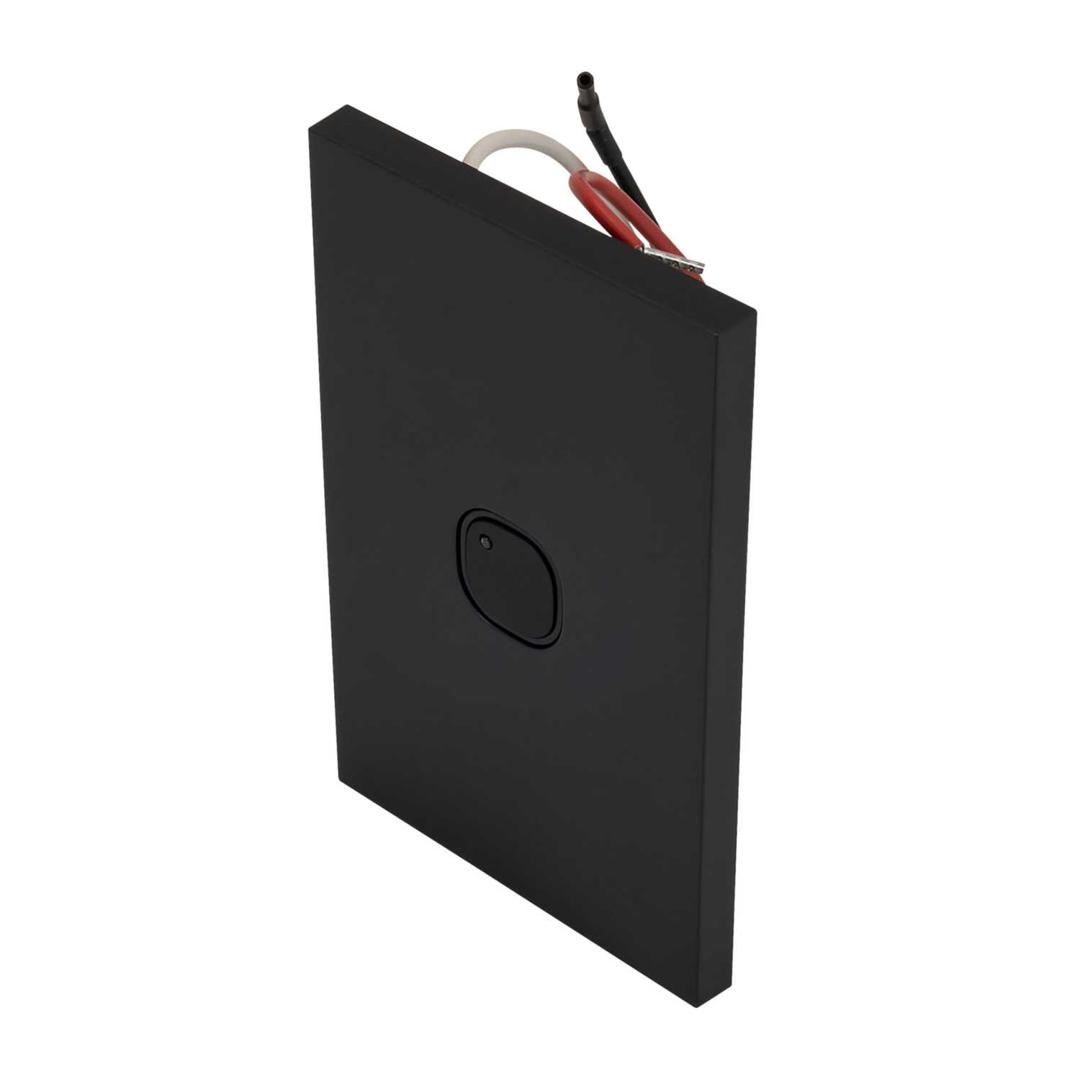

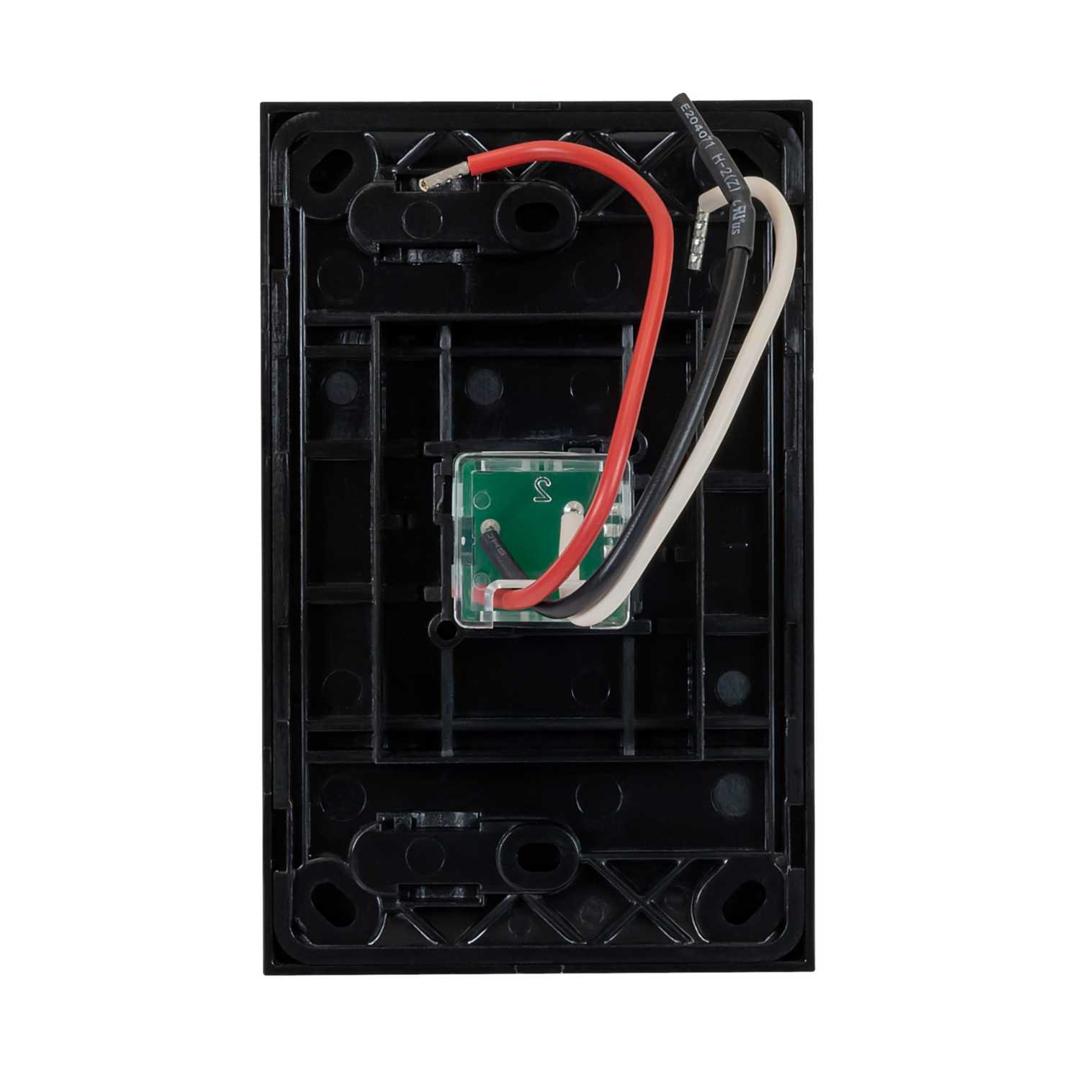

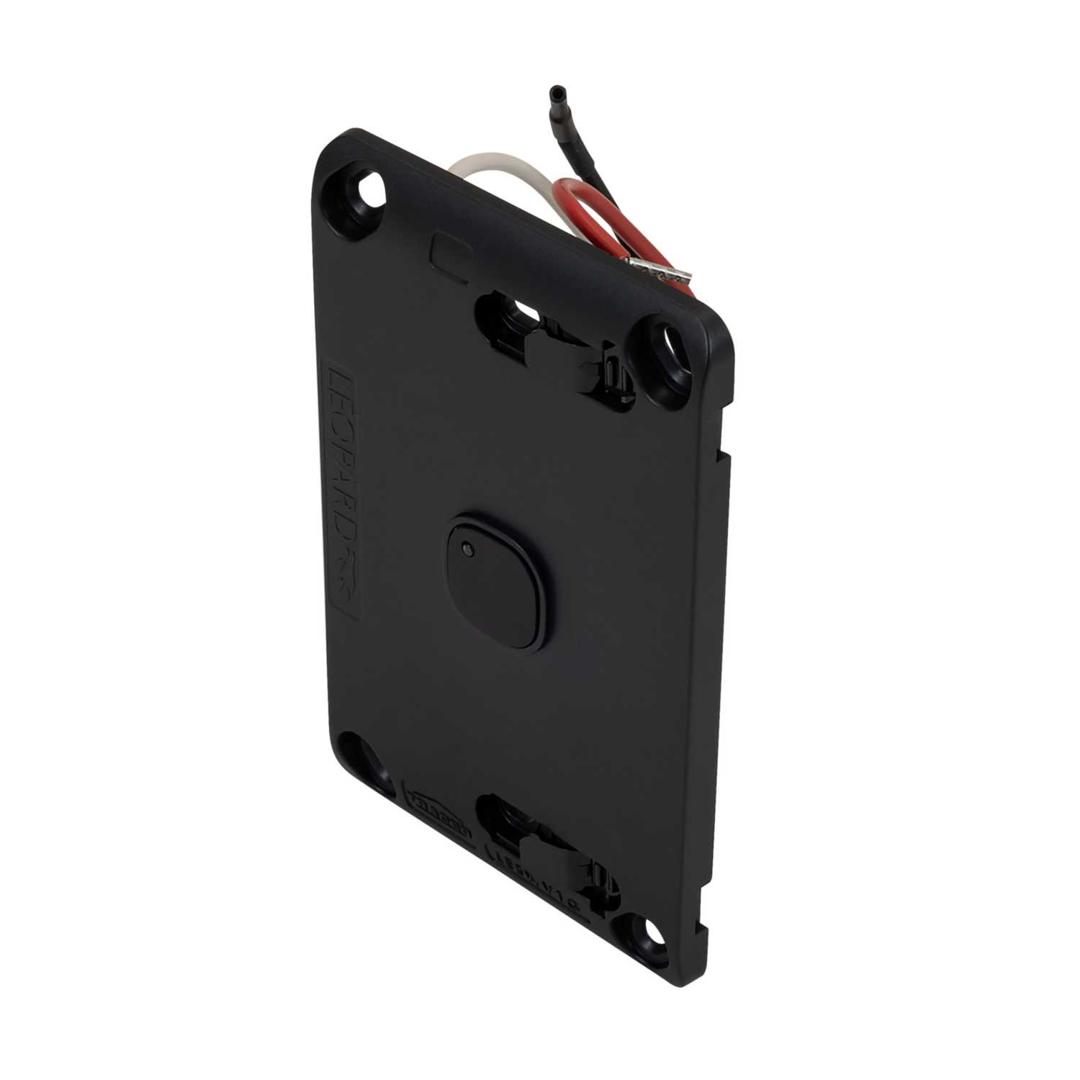

Trader 1 Gang Vertical Electronic Pushbutton Switch Clouded Leopard Matt Black
Part Number: CLSWV1GPBEMBK
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Slim, matt range that projects only 7.5mm off the wall
- Prepopulated with MEPBE electronic pushbutton switch and fitted with the special MEBUCMBK flat button
- Multi-way switching, compatible with the MEPBMW pushbutton
- Vertical mounting
- Blue LED indicator
- Maximum load: 1200W / 500VA
- Maximum current capacity: 5A
- Fits standard mounting accessories as screw mounting area is not recessed
- Screw terminals suit 0.5mm² to 1.5mm² stranded cable (bootlace terminal recommended)
- Colour
- Matt Black
- Current Rating
- 5A
- Depth
- 7.5mm
- Dimensions
- (H)115 mm x (W)73 mm x (D)7.5 mm
- Finish
- Matt Finish
- Fixing Centres
- 84mm
- Frequency
- 50 Hz
- Guarantee
- 10 Years
- Height
- 115mm
- Material
- Polycarbonate
- Mounting
- Flush
- Mounting Depth
- 42mm
- Neon
- Yes
- Number Of Gangs
- 1
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- Clouded Leopard
- Shape
- Rectangular
- Standards
- AS/NZS3133 AS/NZS60669-1
- Terminal Capacity Live Neutral
- 1.5mm²
- Type
- Light Switch
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 240V AC
- Weight
- 0.088kg
- Width
- 73mm
