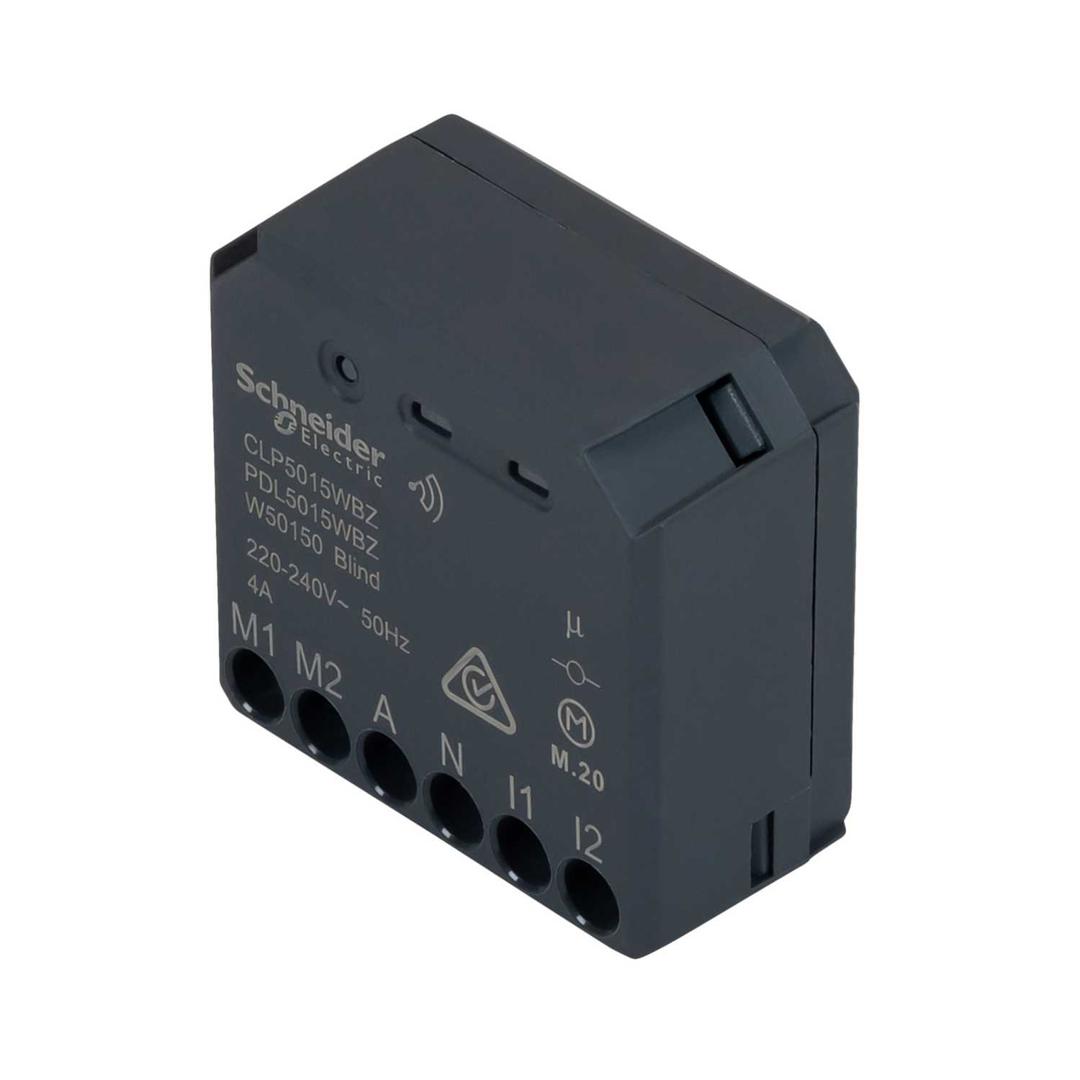

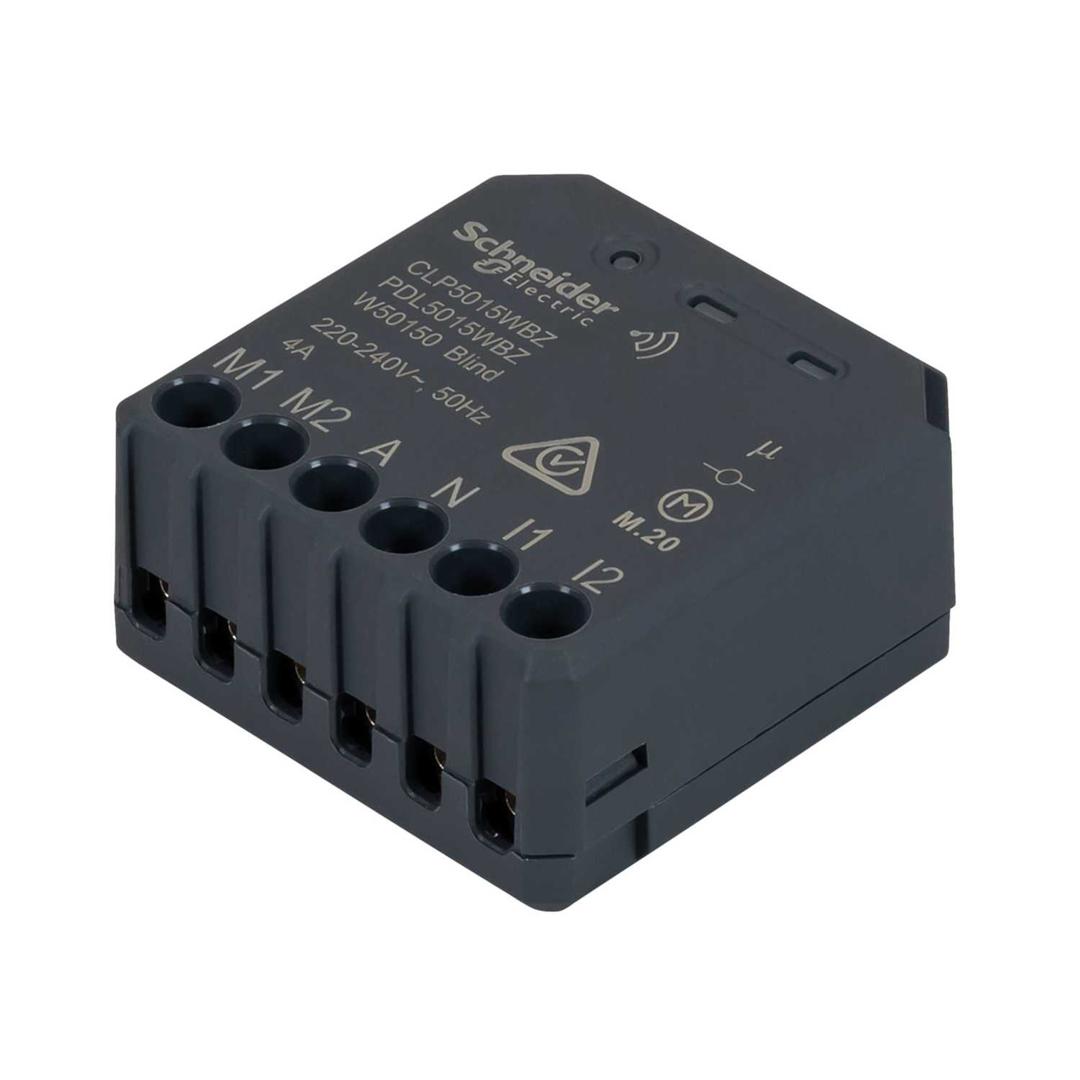

Clipsal Wiser Blind Micro Control Module 240V AC
Part Number: CLP5015WBZ
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Wiser Micro module blind controller combines the advantages of smart shutter functionality with ordinary momentary (bell press) push-button switches
- Designed to control 240 V twin active blind and shutter motors equipped with an end position switch
- Up to 10 double momentary push-button switches or 3 position switches can be connected to one Wiser Micro module blind controller to control a connected blind or roller shutter
- Relay contacts mechanically locked against each other help to prevent simultaneous triggering of the two relay outputs
- Colour
- Grey
- Current Rating
- 4A
- Depth
- 22mm
- Dimensions
- (H)43 mm x (W)43 mm x (D)22 mm
- Finish
- Matt Finish
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 43mm
- Ip Rating
- IP20
- Material
- Plastic
- Operation Type
- Wired / Wireless
- Packaging Types
- Each
- Product Range
- Wiser
- Shape
- Square
- Standards
- AS/NZS 60669.2.1 EN 300 328
- Suitable For
- Clipsal Iconic
- Type
- Switch Module
- Unspsc V18
- 39122221
- Unspsc V24
- 39122221
- Voltage Range
- 220 - 240 V
- Voltage Rating
- 240V
- Weight
- 0.06kg
- Width
- 43mm
