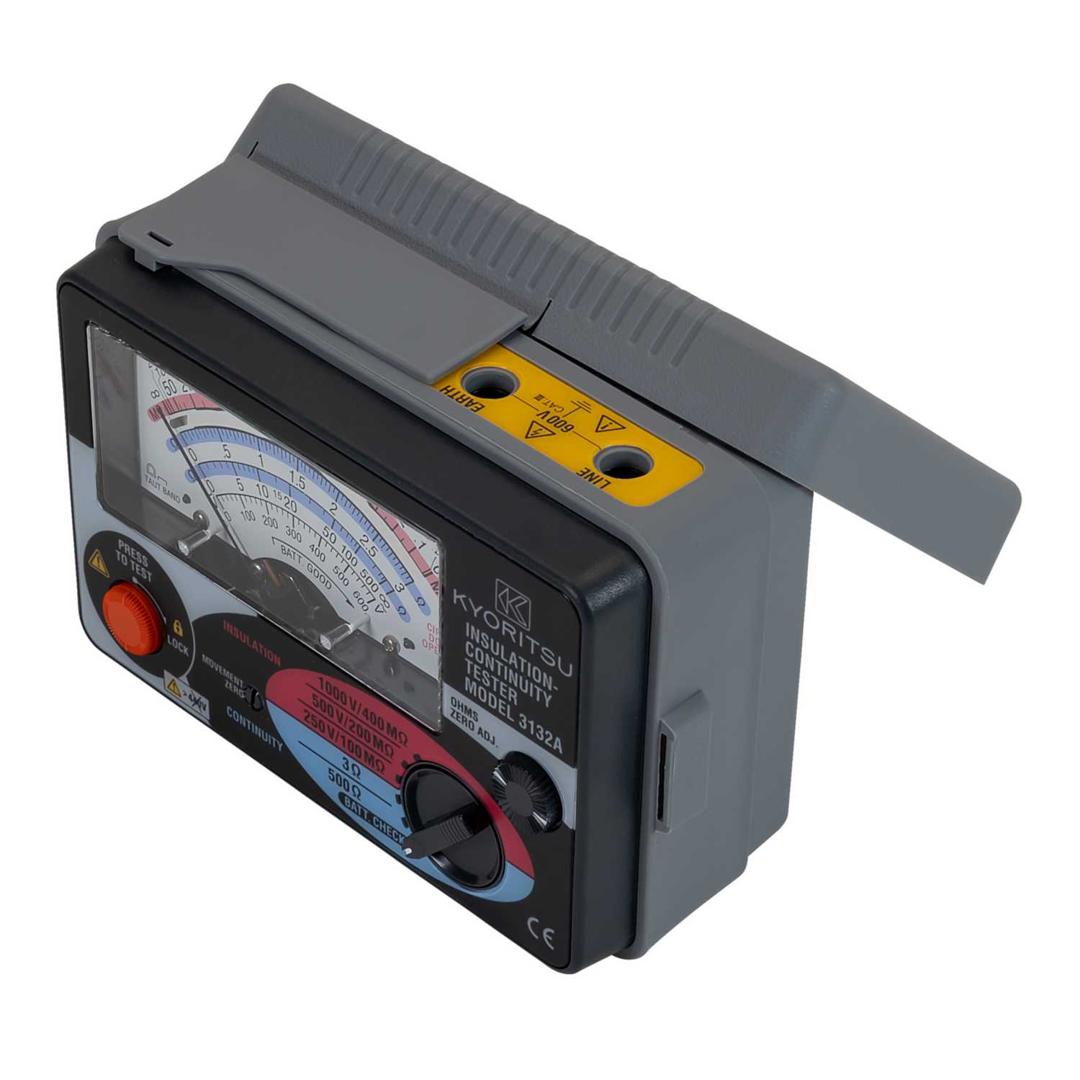

Kyoritsu 1000V Analog Insulation and Continuity Tester
Part Number: 3132A
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Designed to meet IEC 61010-1 and IEC 61557 safety standard
- 1mA rated test current at the minimum resistance
- 200mA measuring current on continuity testing
- Automatic discharge of circuit capacitance
- Live circuit warning buzzer and neon lamp
- Small and lightweight. Shock resistant case material
- AC voltmeter with linear, easy-to-read scale
- Dust and drip-proof construction (designed to IEC 60529 IP54)
- Operates on AA, R6 × 6 dry batteries
- Ac Voltage Measurement
- 600V AC
- Battery Size
- AA
- Battery Type
- Alkaline
- Colour
- Grey/Black
- Continuity Check
- Yes
- Depth
- 72mm
- Dimensions
- (L)106 mm x (W)160 mm x (D)72 mm
- Display Type
- Analogue
- Guarantee
- 1 Year
- Ip Rating
- IP54
- Length
- 106mm
- Material
- Plastic
- Number Of Batteries
- 6
- Packaging Types
- Each
- Product Range
- Instruments
- Resistance
- 400 MΩ
- Safety Range
- IEC 61010-1 CAT III 600V Pollution Degree 2 IEC 61010-2-034, IEC 61557-1,2,4 IEC 61557-1/2/4
- Standards
- IEC 61010-1 and IEC 61557
- Supplied With

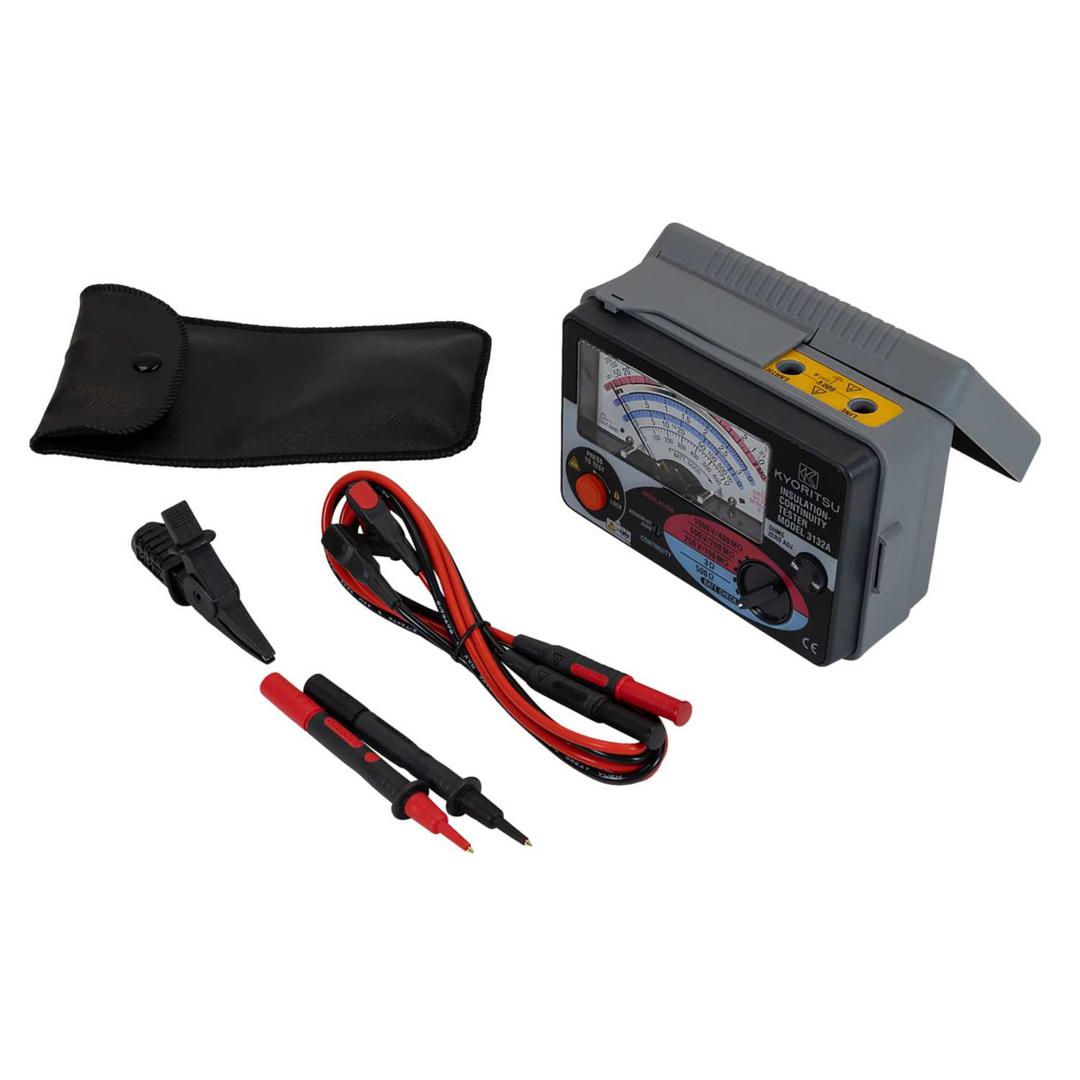

- 7122B (Test Leads) 9074 (Cord Case) 8923 (Fuse [0.5A/600V]) × 1 (Included), 1 (Spare) R6 (AA) × 6 9121 (Shoulder Strap) Instruction Manual
- Type
- Insulation Tester
- Unspsc V18
- 41113624
- Unspsc V24
- 41113624
- Voltage Rating
- 1000V AC
- Weight
- 0.843kg
- Width
- 160mm
