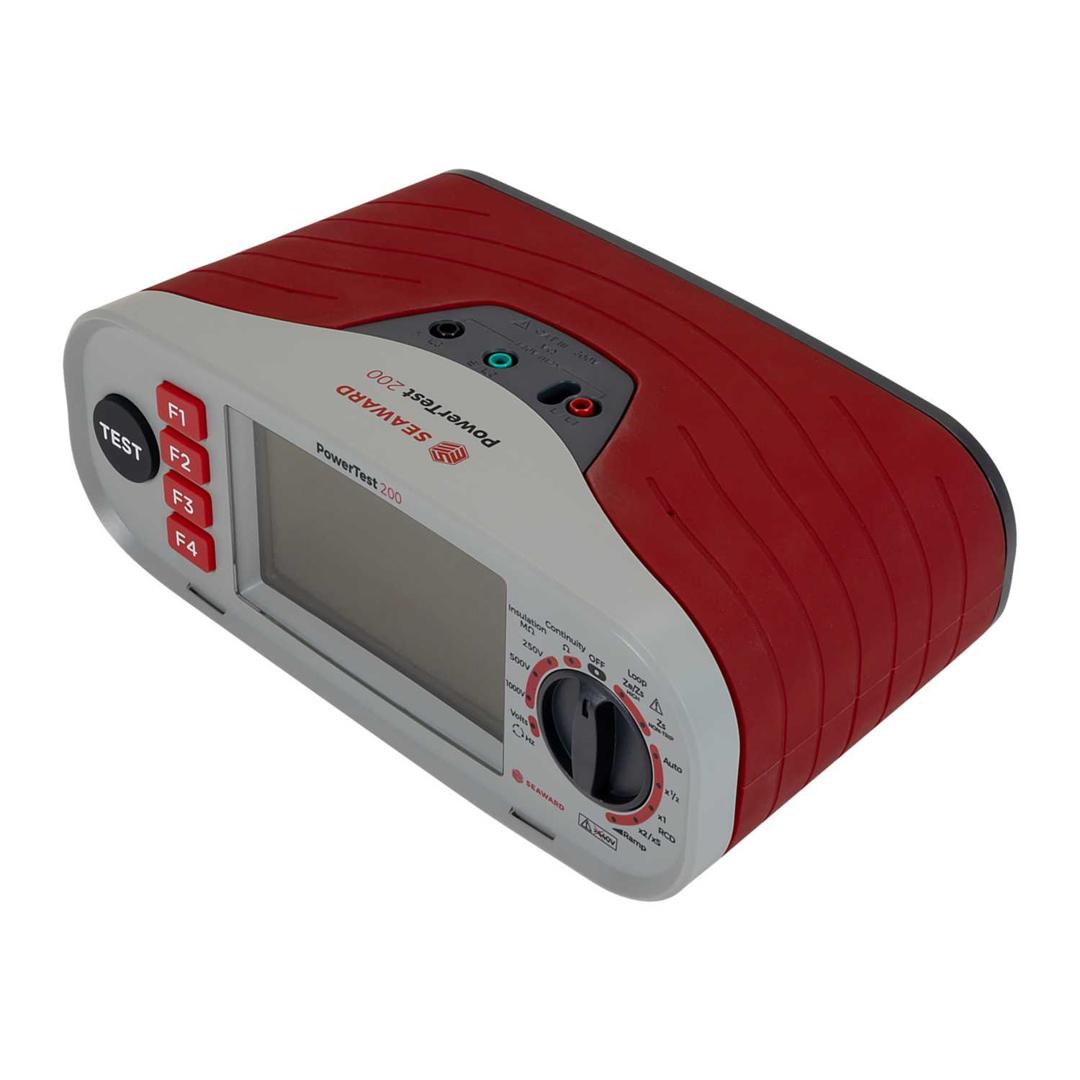

Seaward Multifunction Electrical Tester

Part Number: POWERTEST-200

Features

Voltage measurement up to 440V
Continuity test with autostart and null facility to zero out lead resistance
Insulation resistance measurement with 250, 500 & 1000V test voltages
RCD testing: trip time, trip current (0.5, 1, 2 and 5 times the rating, dependent on device), auto test and ramp test
Test RCDs in auto mode and simply recall the test results once finished
Loop impedance and PSC or PFC readings can be shown on one screen
Non-trip loop impedance
Loop impedance - high current with auto start and direct readout of PSC
Phase rotation test will indicate the correct phase sequence
Integrated socket probe for easier testing
Large backlight screen improving visibility even in difficult lighting conditions

Specifications

Accuracy Continuity Range: +/-2% +/-5 digits
Accuracy Insulation Resistance Measuring: ± 5 % + 5 digits
Accuracy Loop Impedance: ± 5% + 5 digits
Batteries Included: Yes
Battery Size: AA
Battery Type: Alkaline
Colour: Red/Grey
Continuity Check: Yes
Continuity Range: 0.01 Ω - 200 Ω
Depth: 105mm
Dimensions: (H)55 mm x (W)260 mm x (D)105 mm
Guarantee: 1 Year
Height: 55mm
Insulation Test Voltage: 250V / 500V / 1000V
Loop Impedance Range: 0.01 Ω - 2000 Ω
Material: Plastic
Number Of Batteries: 6
Packaging Types: Each
Product Range: Instruments
Resistance: 1000V
Safety Range: 300V Cat III

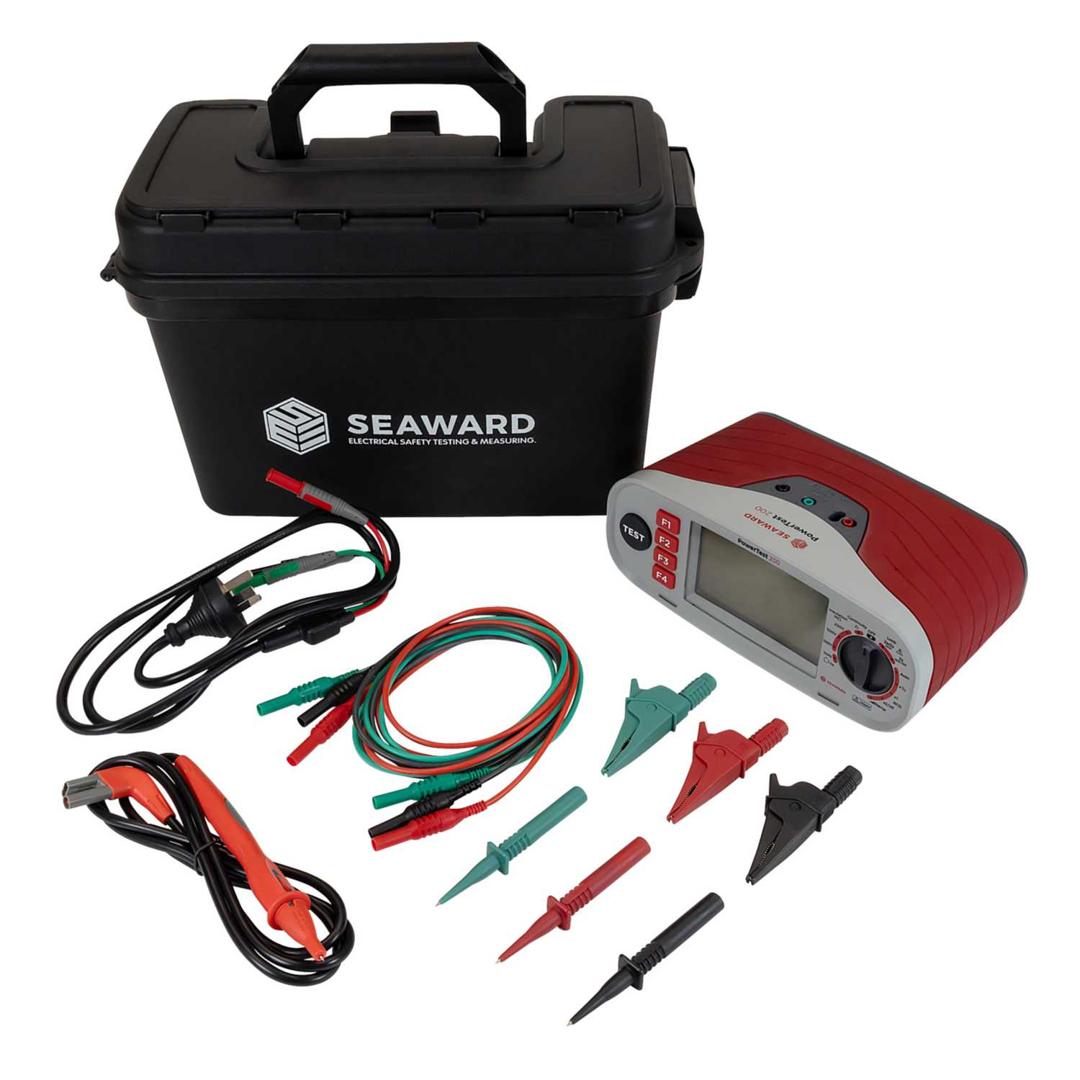

Supplied With: Seaward PowerTest 200 Instrument Professional Carry Case Padded Neck Strap Mains Lead 1.2M Black Test Lead 1.2M Red Test Lead 1.2M Green Test Lead Black Crocodile Clip Red Crocodile Clip Green Crocodile Clip Remote Probe with Test Buttons 6 x MN1500 (LR6) (AA) 1.5v Batteries Spare 1.6A 1000V HRC FF Fuse User Manual
Test Voltage: 250V/ 500V/ 1000V
Type: Multifunction Tester
Unspsc V18: 41113681
Unspsc V24: 41113681
Voltage Rating: 440V AC
Weight: 3.296kg
Width: 260mm
