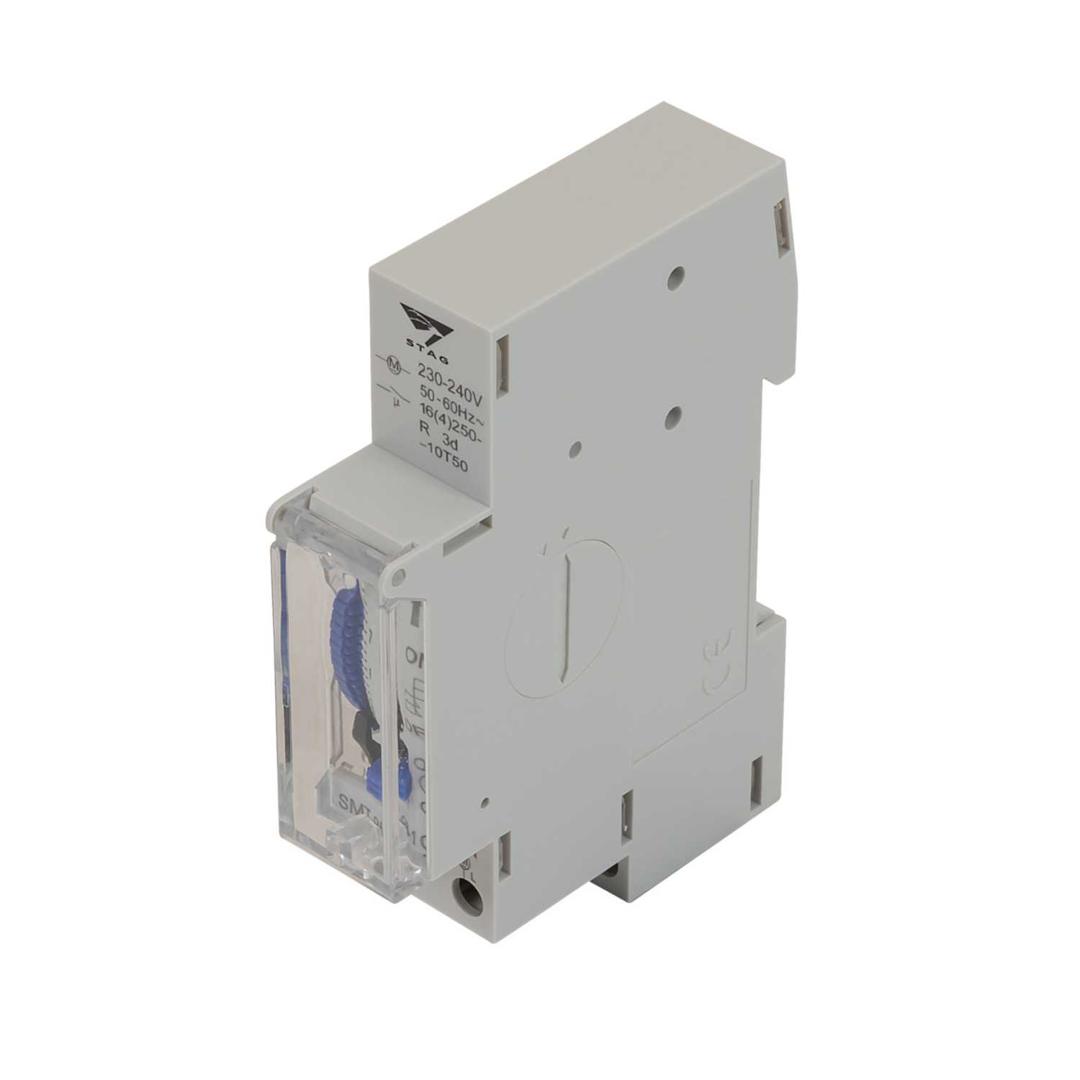

IMO Single Channel 24 Hour Mechanical Time Switch
Part Number: SPT2
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- General purpose mechanical timer switch
- Daily program (on/auto/continuous off)
- 96 switching segments
- DIN rail mounting
- Quartz controlled
- Manual switch with 3 positions
- 72 hour rechargeable battery backup (3 Days)
- Battery Back Up
- Yes
- Colour
- Grey
- Cover Type
- Transparent Hinged Cover
- Current Rating
- 16A
- Depth
- 65.65mm
- Dimensions
- (H)92.75 mm x (W)18 mm x (D)65.65 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 92.75mm
- IP Rating
- IP20
- Material
- Self-extinguishing Plastic
- Maximum Operating Temperature
- 55°C
- Minimum Operating Temperature
- -10°C
- Minimum Time Settings
- 15min
- Mounting
- DIN Rail
- Number Of Channels
- 1
- Number Of Modules
- 1
- Number Of Pins
- 96
- Operation Type
- Timer
- Packaging Types
- Each
- Product Range
- Stag
- Programming Type
- Manual
- Resistive Load
- 16A
- Type
- Mechanical Timer
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Rating
- 220V AC
- Weight
- 0.85kg
- Width
- 18mm
