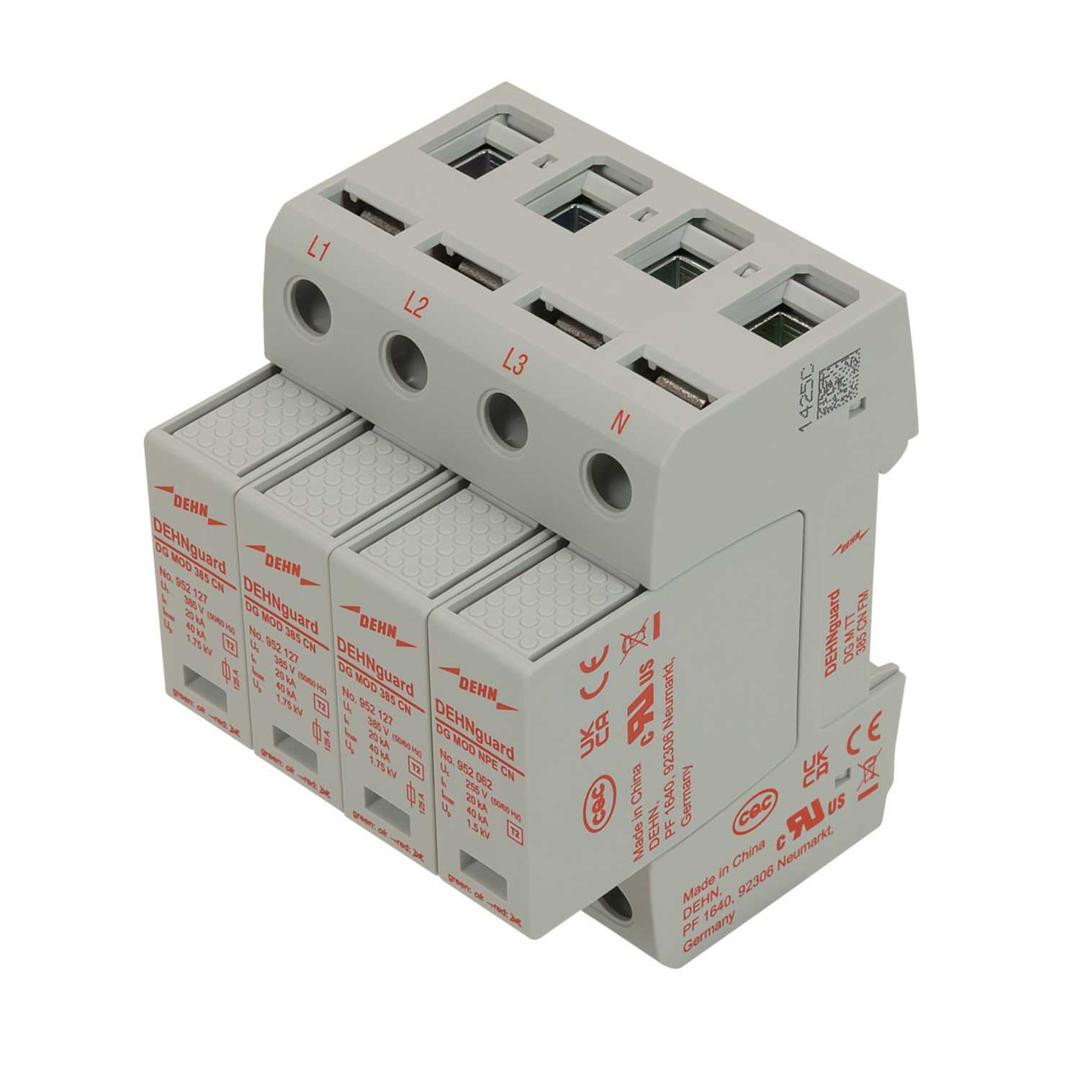

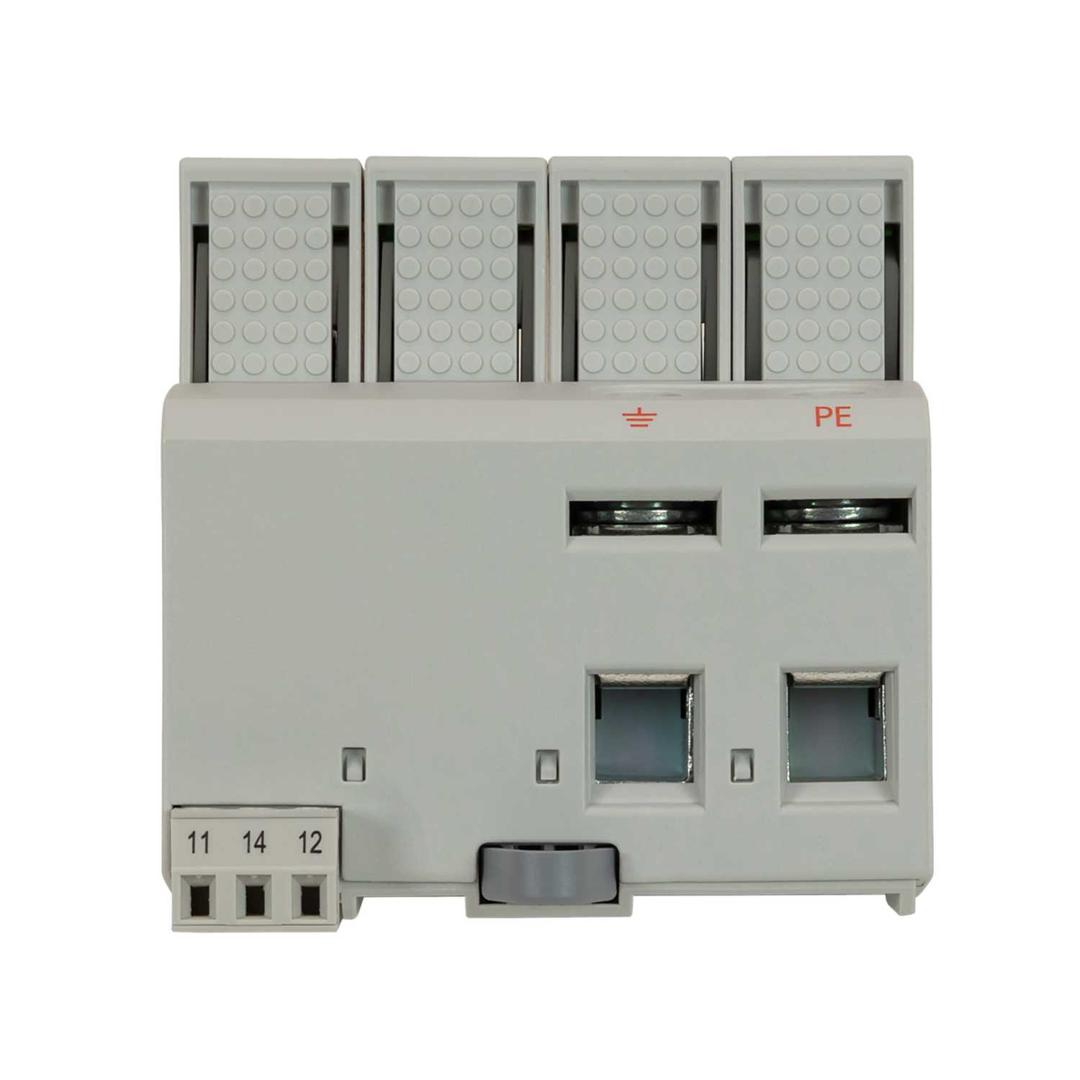

IPD 50kA 4 Pole Type 2 Surge Arrester with Signal Contact
Part Number: DGMTT385CNFM
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- MOV modular surge protection for 385V AC systems
- 50kA Imax
- 20kA In
- Module can be replaced after an event
- Red / green fault indication window
- Alarm contact
- Type 2 surge protection for electrical systems
- Sensitive electronic equipment requires Type 3 surge protection downstream of Type 2
- Colour
- Red
- Depth
- 66mm
- Dimensions
- (H)90 mm x (W)72 mm x (D)66 mm
- Guarantee
- 1 Year
- Height
- 90mm
- Ip Rating
- IP20
- Material
- Plastic
- Maximum Discharge Current
- 50kA
- Mounting
- DIN Rail
- Number Of Modules
- 4
- Number Of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- DEHN
- Standards
- EN 61643-11
- Type
- Surge Protection Device
- Unspsc V18
- 39121634
- Unspsc V24
- 39121634
- Voltage Rating
- 385V AC
- Weight
- 0.434kg
- Width
- 72mm
