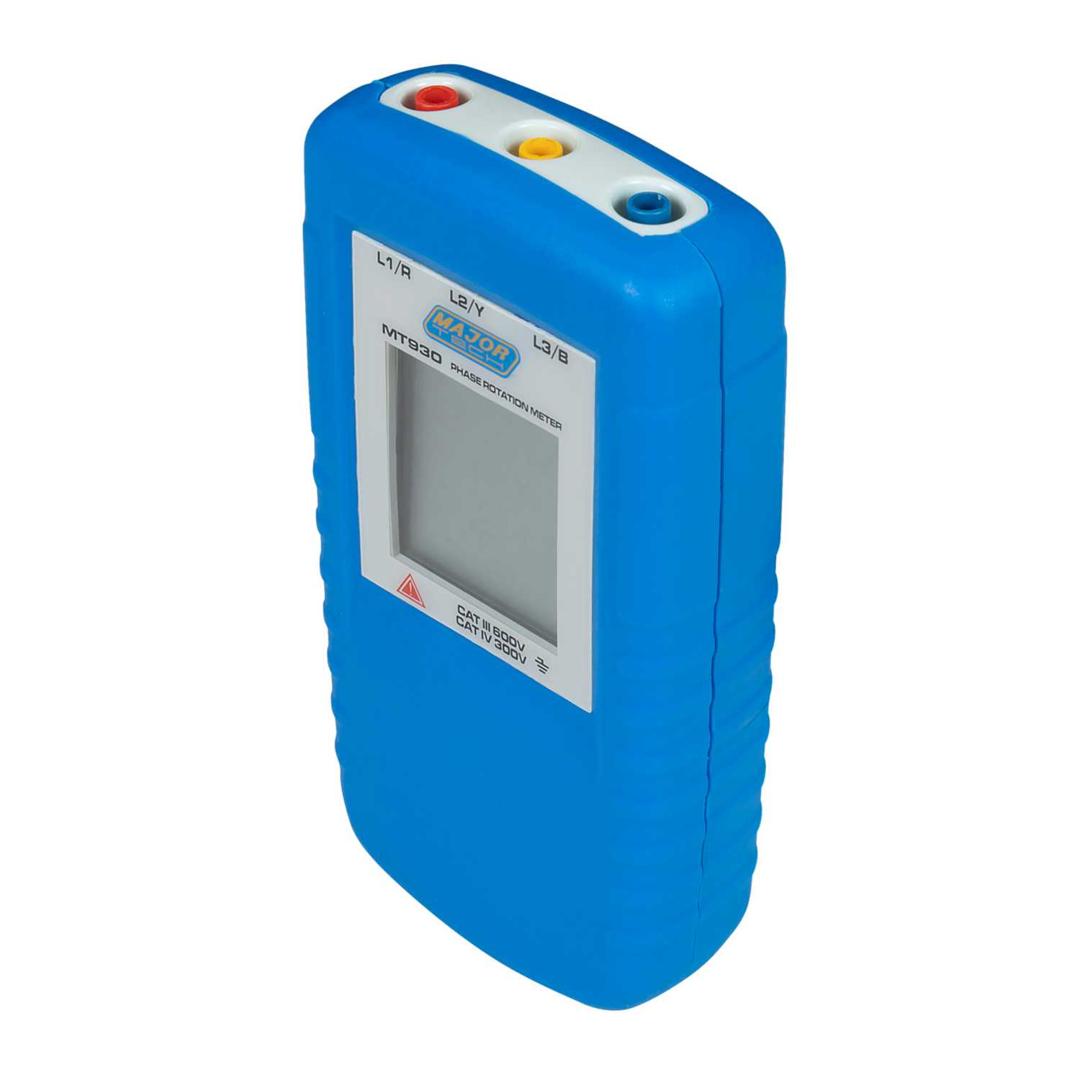

Major Tech Phase Rotation Meter
Part Number: MT930
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Handheld phase rotation indicator that has a large LCD to indicate the phase presence and rotation
- Large LCD display
- AC voltage 690V
- Measuring frequency 400Hz
- Phase rotation indication
- Three phase indication
- Checks phase sequence and open phase simultaneously
- Double injection rubber housing
- Small lightweight and portable
- Can check a wide range of three phase power source
- Large size crocodile clips
- Ac Voltage Measurement
- 690V AC
- Colour
- Blue/White
- Depth
- 32mm
- Dimensions
- (H)130 mm x (W)69 mm x (D)32 mm
- Display Type
- Large LCD Display
- Frequency Measurement
- 15 Hz - 400 Hz
- Guarantee
- 2 Years
- Height
- 130mm
- Material
- Plastic/Rubber
- Packaging Types
- Each
- Product Range
- Instruments
- Safety Range
- CAT IV 300V and CAT III 600V
- Standards
- IEC 61010-1

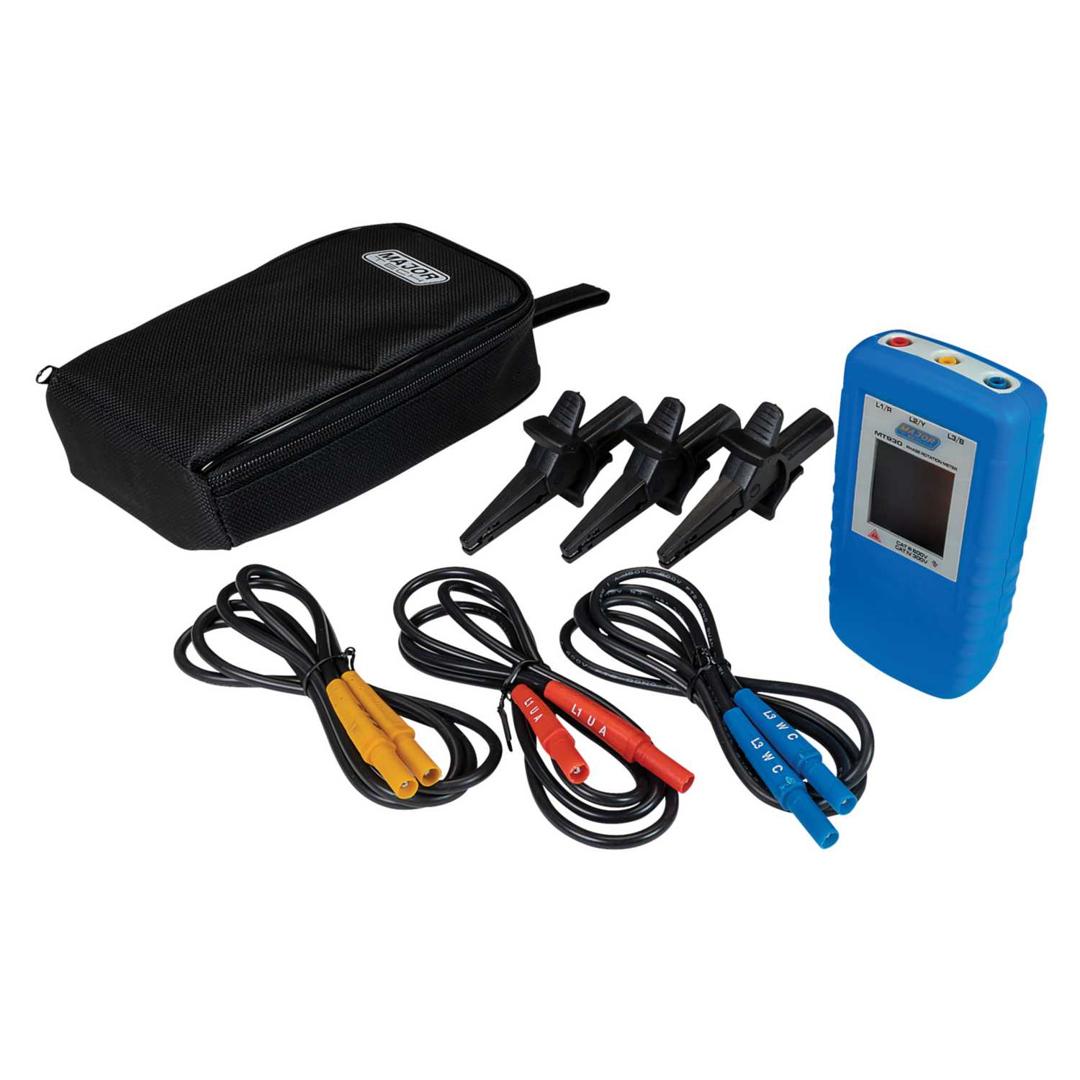

- Supplied With
- Set of Large Sized Croc Clips Instruction Manual
- Type
- Phase Rotation Meter
- Voltage Rating
- 690V AC
- Weight
- 0.439kg
- Width
- 69mm
