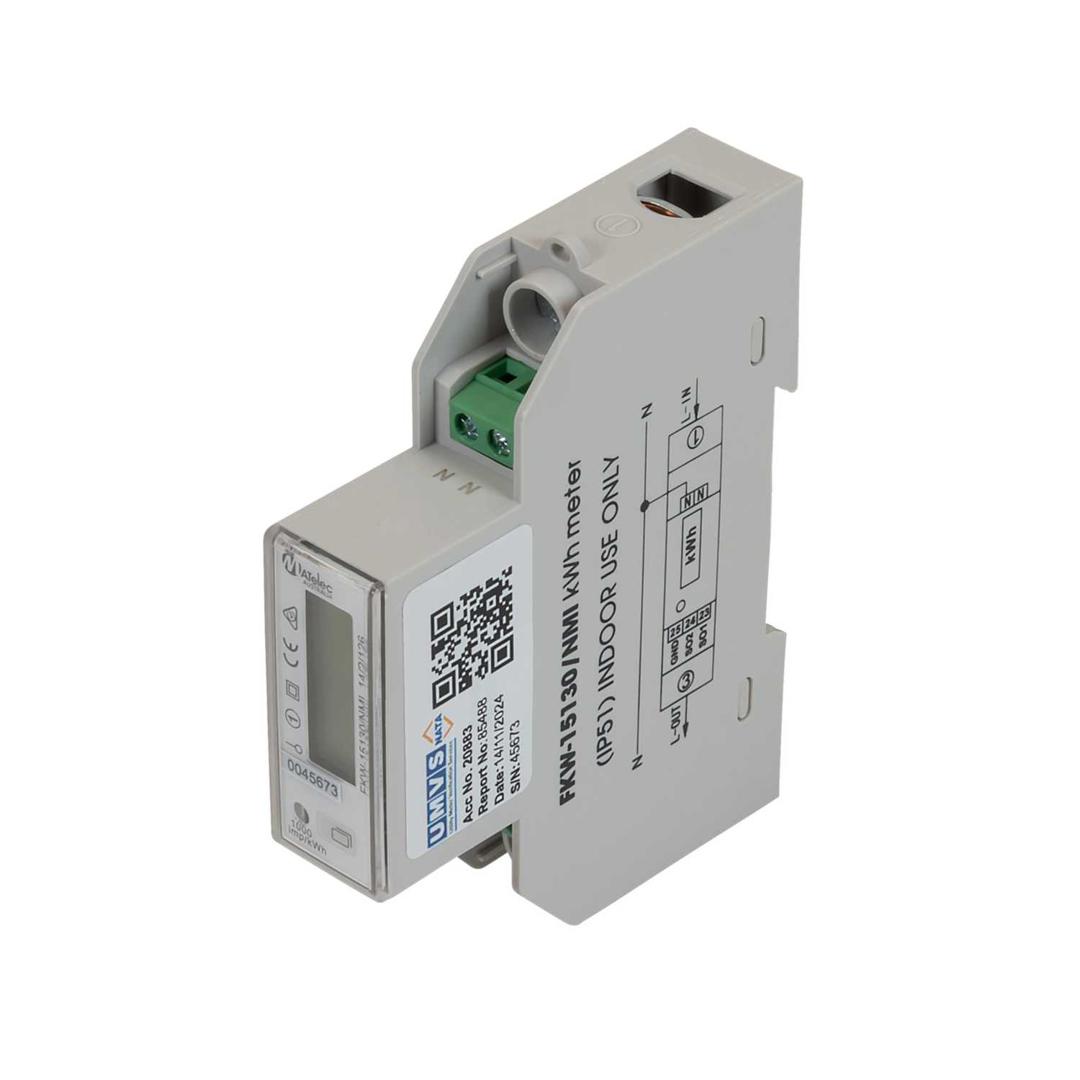

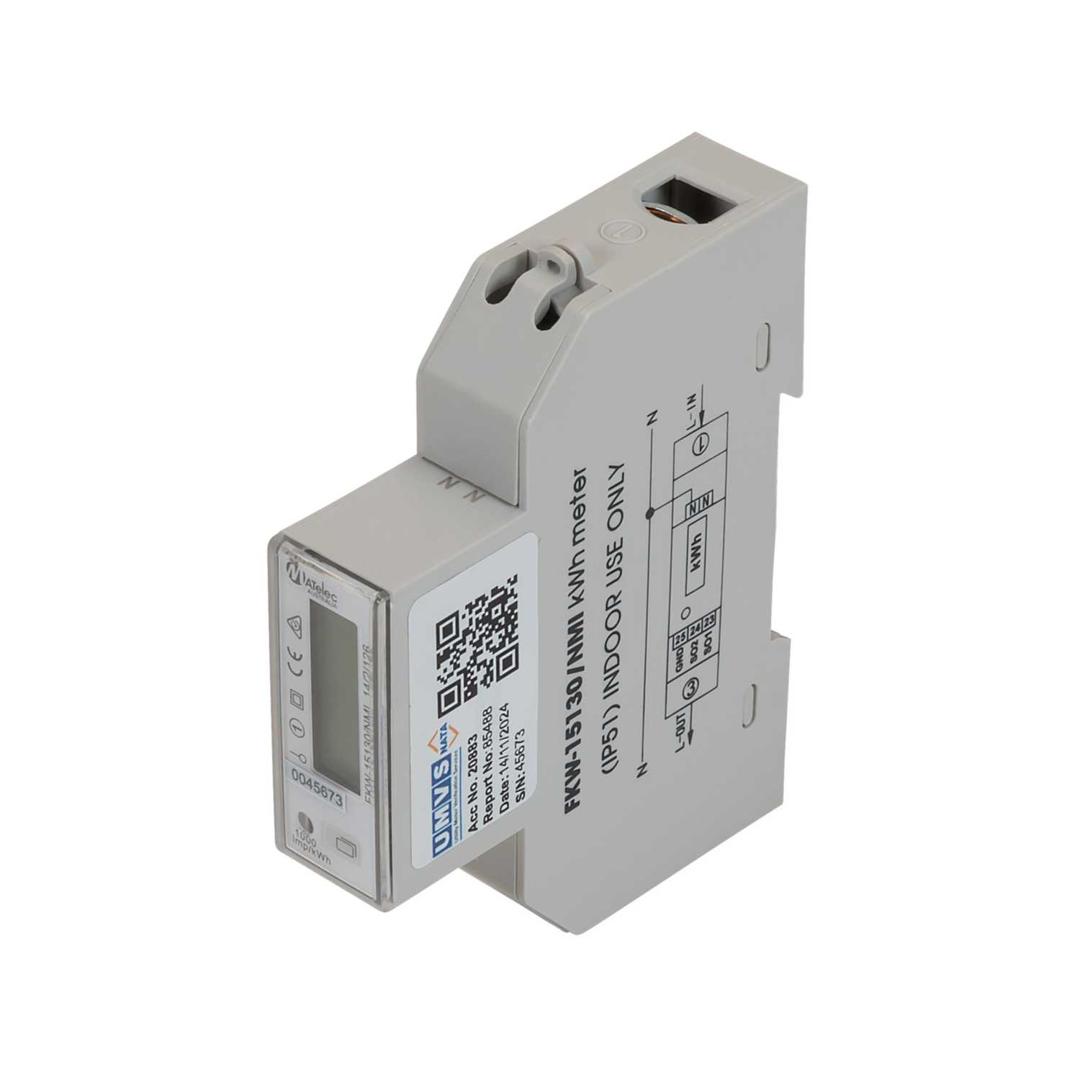

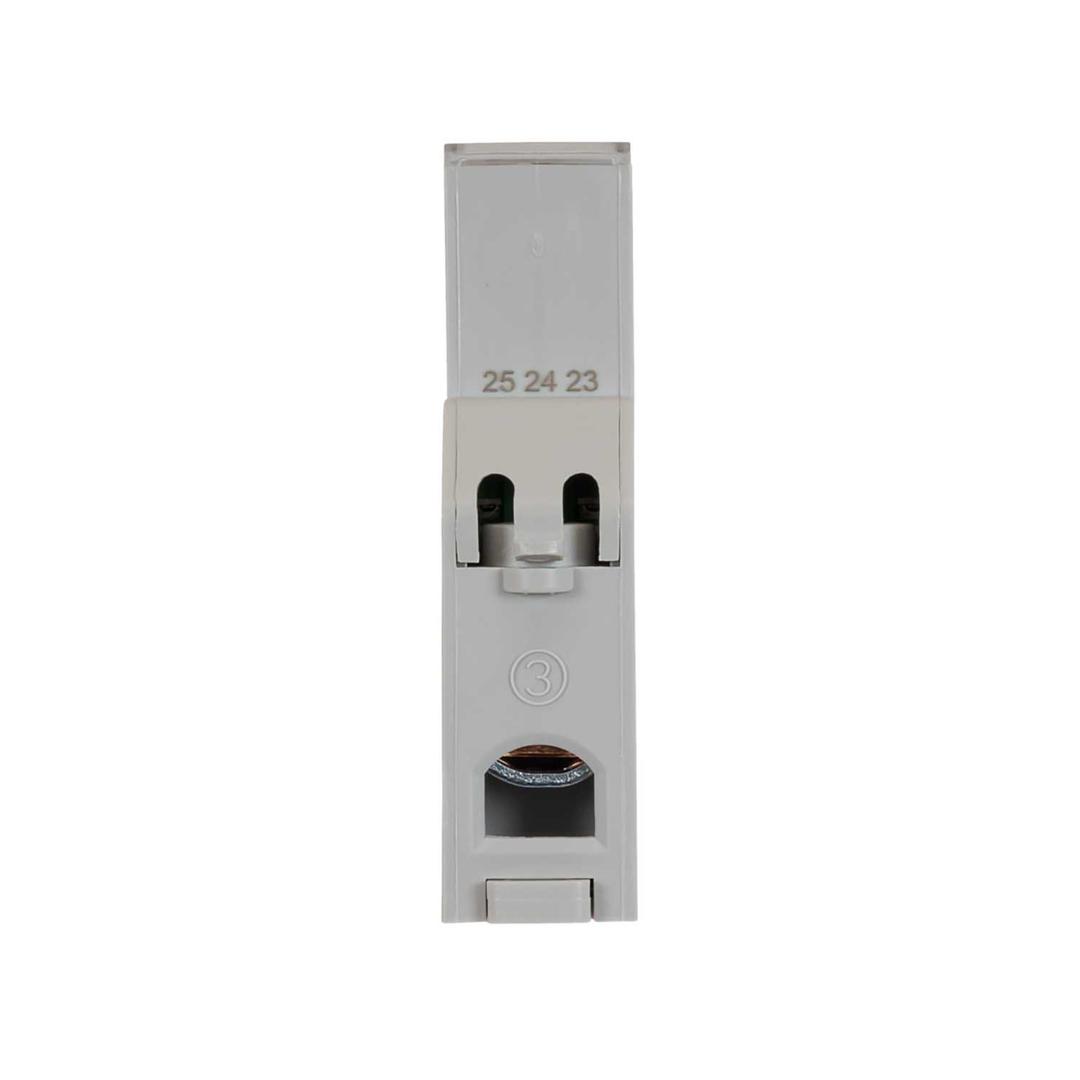

Matelec 100A 1 Phase DIN Mounted Kilowatt Hour Meter
Part Number: FKW-15130/NMI
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Bi-directional kilowatt hour meter
- Digital, backlit LCD display
- NMI approved for billing applications
- Accuracy Class 1
- Insulation Class 2
- Current range 0.25 - 100A
- Tamper seal kit supplied
- Suitable for solar applications
- Accuracy
- Class 1
- Cable Capacity
- 25mm²
- Colour
- Grey
- Current Rating
- 100A
- Depth
- 72mm
- Dimensions
- (H)90 mm x (W)18 mm x (D)72 mm
- Display Type
- Backlit Blue LCD
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 90mm
- Material
- ABS
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Phases
- 1
- Operating Temperature Range
- -20 -+65°C
- Packaging Types
- Each
- Product Range
- FKW
- Type
- Energy Meter
- Unspsc V18
- 39121106
- Unspsc V24
- 39121106
- Voltage Rating
- 230V AC
- Weight
- 0.147kg
- Width
- 18mm
