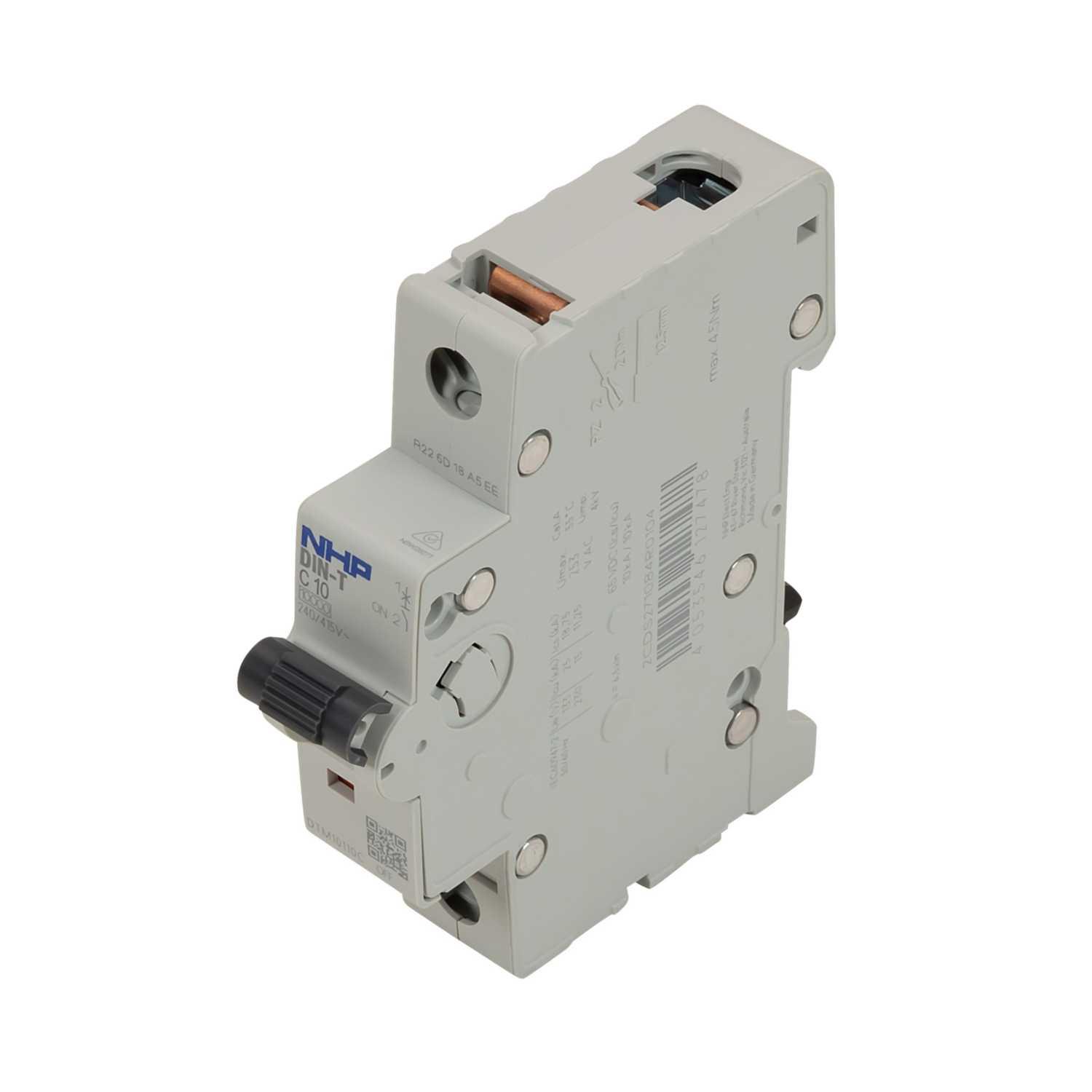

NHP 10A 1 Pole 10kA C Curve DIN-T MCB
Part Number: DTM10110C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 1 phase miniature circuit breaker
- Thermal-magnetic tripping for overload and short circuit protection
- 4.5 N m max tightening torque on top or bottom connections
- Provision for pad lock or seal to restrict unauthorised action
- Fast connection pin/fork busbar comb or NC or GB busbar chassis
- Suits the Concept panelboard range
- Colour
- Grey
- Current Rating
- 10A
- Depth
- 75mm
- Dimensions
- (H)85 mm x (W)17.5 mm x (D)75 mm
- Guarantee
- 1 Year
- Height
- 85mm
- Incoming Terminal Capacity
- 35mm²
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 1 Pole
- Outgoing Terminal Capacity
- 35mm²
- Packaging Types
- Each
- Product Range
- DIN-T
- Short Circuit Rating
- 10kA
- Standards
- AS/NZS 60898.1 AS/NZS 60947-2
- Tripping Characteristics
- C Curve
- Type
- MCB
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 240V AC
- Weight
- 0.108kg
- Width
- 17.5mm
