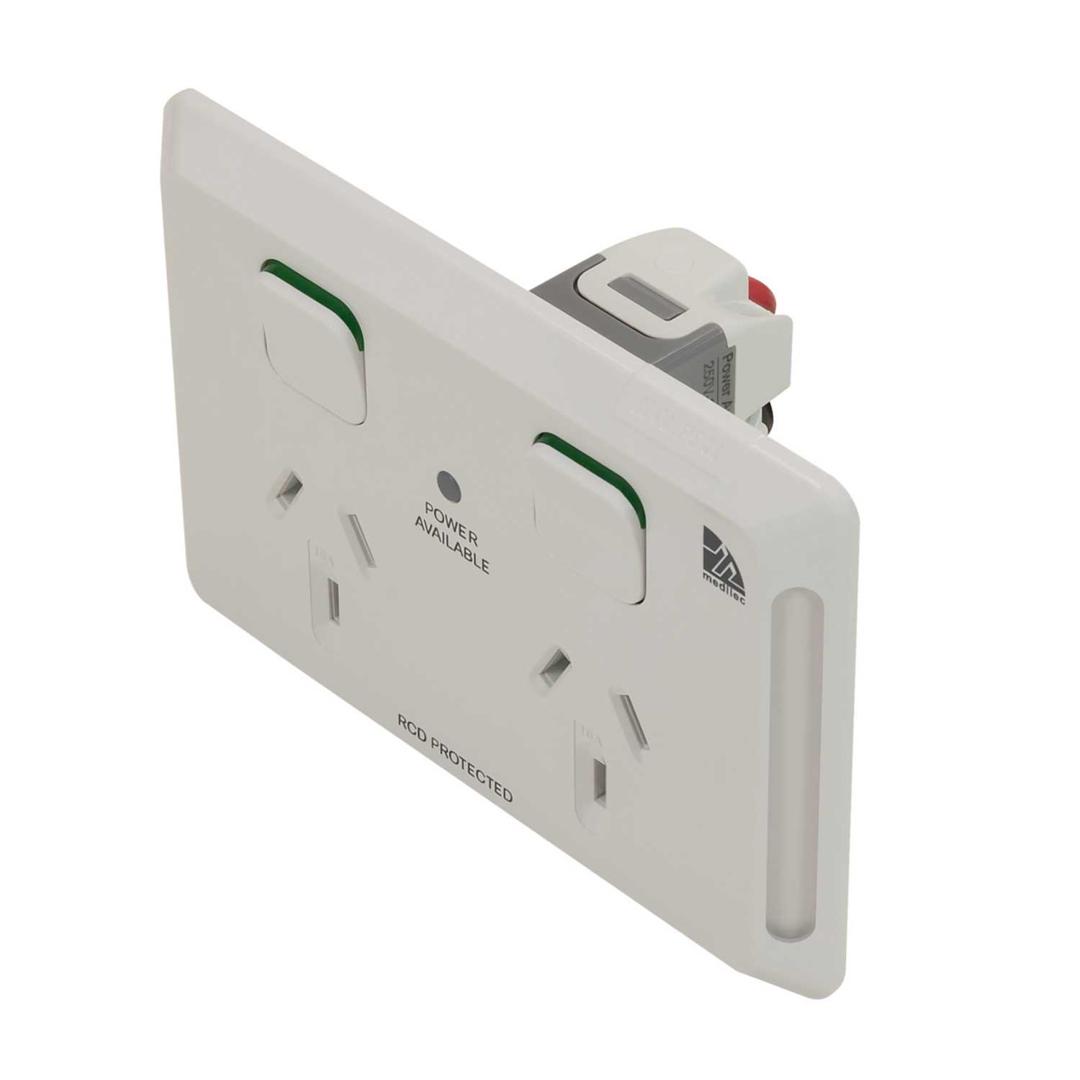

Clipsal 10A Double Power Point Medilec White
Part Number: MLP3025PA-WE
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Medilec switched socket designed for patient areas in medical buildings
- Twin socket marked with RCD PROTECTED and must be installed downstream of separate RCD protection
- Maximum of six twin sockets can be installed downstream of an RCD
- Antibacterial properties
- White denotes general power outlet
- Amber LED indicator is marked POWER AVAILABLE to show the trip status of the RCD that is installed upstream
- Colour
- White
- Current Rating
- 10A
- Depth
- 9mm
- Dimensions
- (H)78.2 mm x (W)116 mm x (D)9 mm
- Finish
- Gloss Finish
- Fixing Centres
- 84mm
- Frequency
- 50 Hz
- Guarantee
- 2 Years
- Height
- 78.2mm
- Material
- Plastic
- Mounting
- Flush
- Mounting Depth
- 34.6mm
- Neon
- Yes
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- Medilec Double Power Point
- Shape
- Rectangular
- Standards
- AS/NZS 3112 AS/NZS 3190 AS/NZS 3133 AS/NZS 3100 AS/NZS 3121
- Switched Unswitched
- Switched
- Terminal Capacity Earth
- 4 x 2.5mm² / 3 x 4 mm² screw terminal
- Terminal Capacity Live Neutral
- 4 x 2.5mm² / 3 x 4 mm² screw terminal
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 240V AC
- Weight
- 0.125kg
- Width
- 116mm
