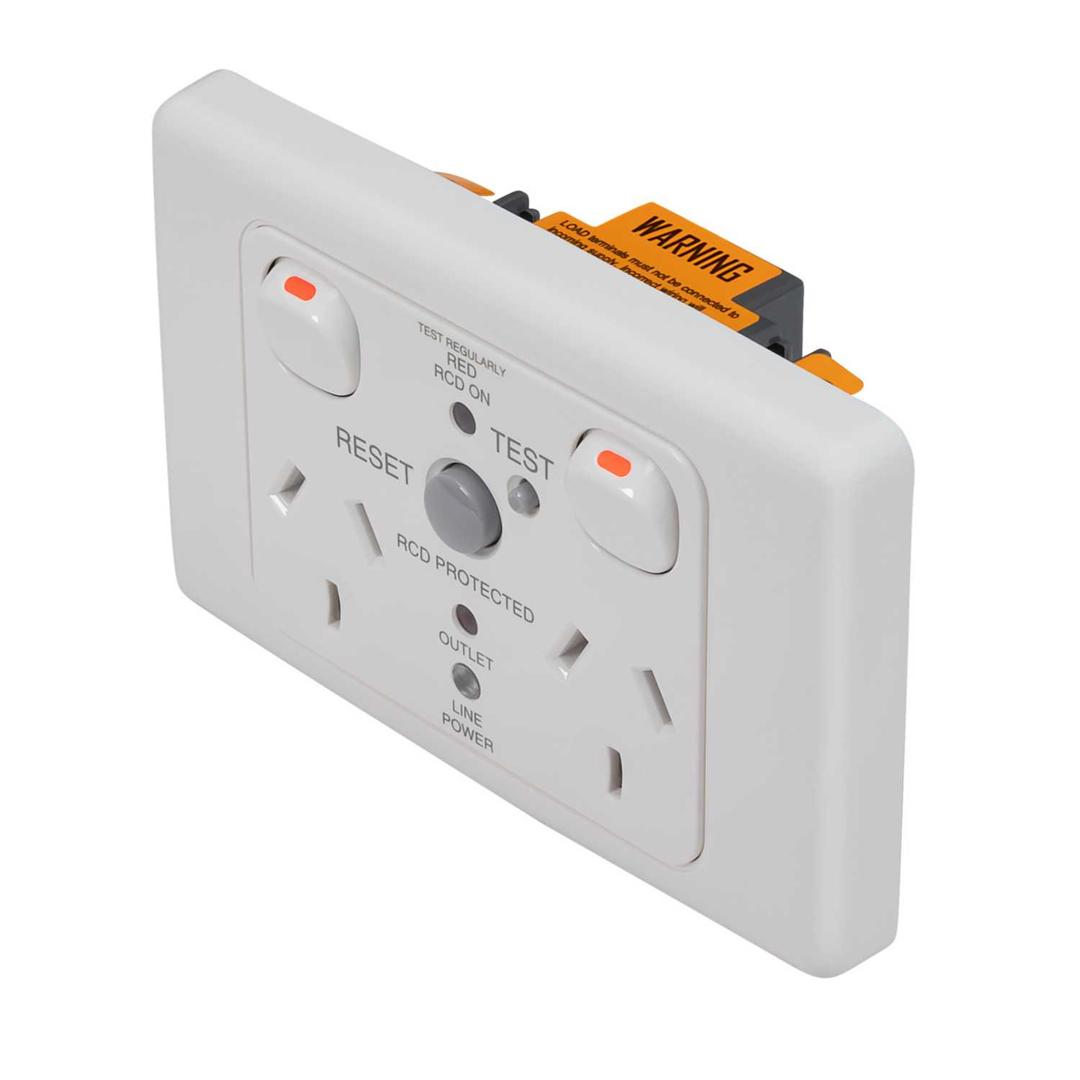

Clipsal 30mA 10A DP RCD Double Power Point 2000 Series White
Part Number: 2025RCD30-WE
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Horizontal mount, RCD protected twin switched socket
- Capable of protecting any device that is hard wired directly to the load terminals and any socket connected downstream of the load terminals
- Double pole switched
- Colour
- White
- Current Rating
- 10A
- Depth
- 13mm
- Dimensions
- (H)76 mm x (W)116 mm x (D)13 mm
- Finish
- Gloss Finish
- Fixing Centres
- 84mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 76mm
- Material
- Plastic
- Mounting
- Flush
- Mounting Depth
- 34mm
- Number Of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- 30mA RCD Socket
- Rcd Rating
- 30mA
- Shape
- Rectangular
- Standards
- AS/NZS 3112 AS/NZS 3190 AS/NZS 3133 AS/NZS 3100 AS/NZS 3121
- Switched Unswitched
- Switched
- Terminal Capacity Earth
- 4 x 2.5mm²
- Terminal Capacity Live Neutral
- 4 x 2.5mm²
- Test Button
- Yes
- Type
- RCD Protected Power Point
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 250V AC
- Weight
- 0.151kg
- Width
- 116mm
