Schneider Harmony 9001K 3 Hole Stainless Steel Empty Control Station
Part Number: 9001KYSS3
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

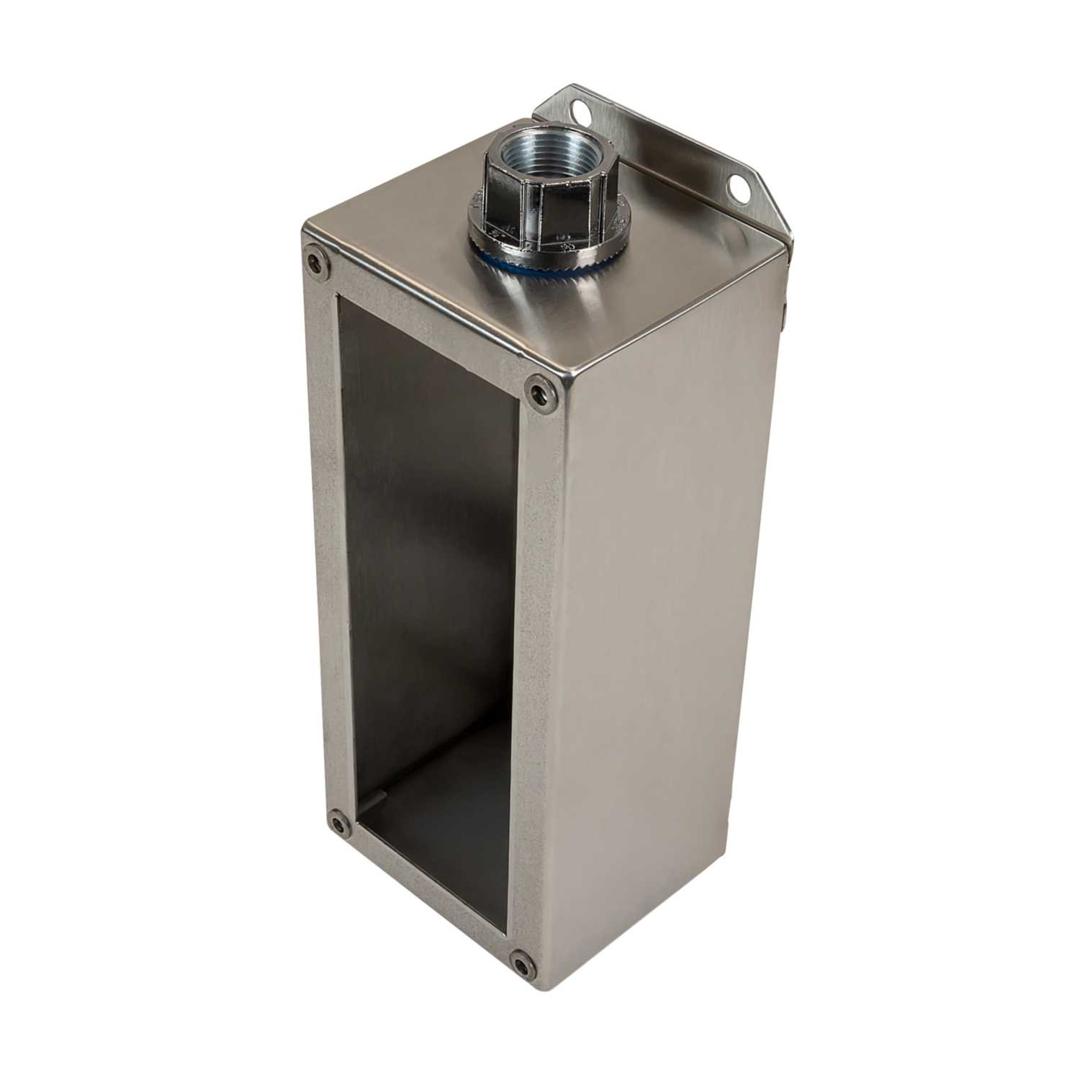

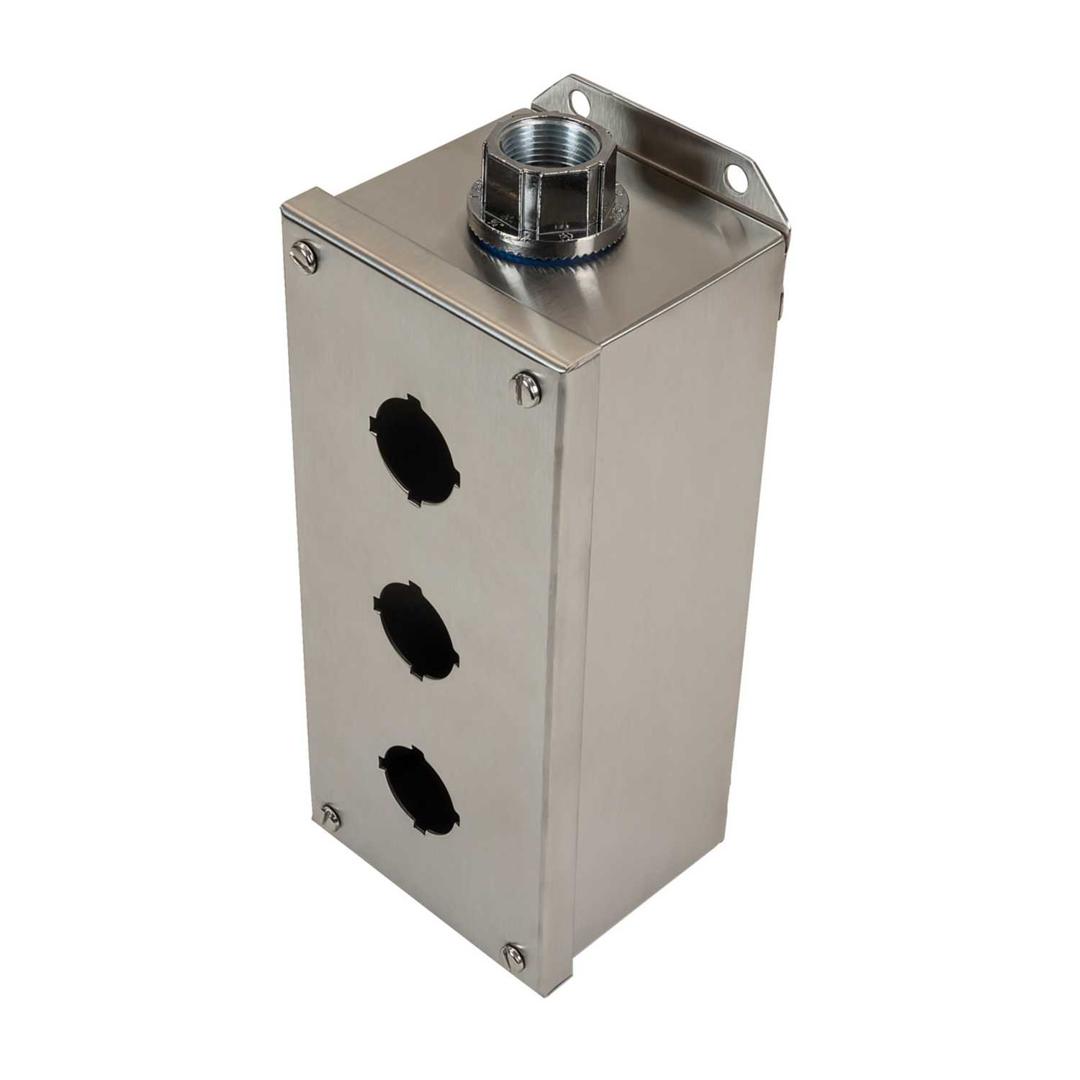

- Stainless steel empty control station for use with Harmony 9001K or 9001SK series 30mm control and signalling units
- Complies with the requirements of NEMA 1/13/3/4/4X ratings
- 1 entry tapped for 3/4'' knockout
- IP66 rated
- Mechanical impact protection IK10
- Cable Entry
- 1 entry tapped for 3/4'' knockout
- Colour
- Stainless Steel
- Cut Out
- 30mm
- Depth
- 92mm
- Dimensions
- (H)260 mm x (W)106 mm x (D)92 mm
- Guarantee
- 18 Months
- Height
- 260mm
- Ip Rating
- IP66
- Material
- Stainless Steel
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Number Of Ways
- 3
- Packaging Types
- Each
- Product Range
- Harmony 9001K
- Standards
- IEC 61140 NEMA 1 NEMA 12 NEMA 3 NEMA 4 NEMA 4X
- Storage Temperature Range
- -40 - 70°C
- Type
- Control Station
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 1.591kg
- Width
- 106mm
