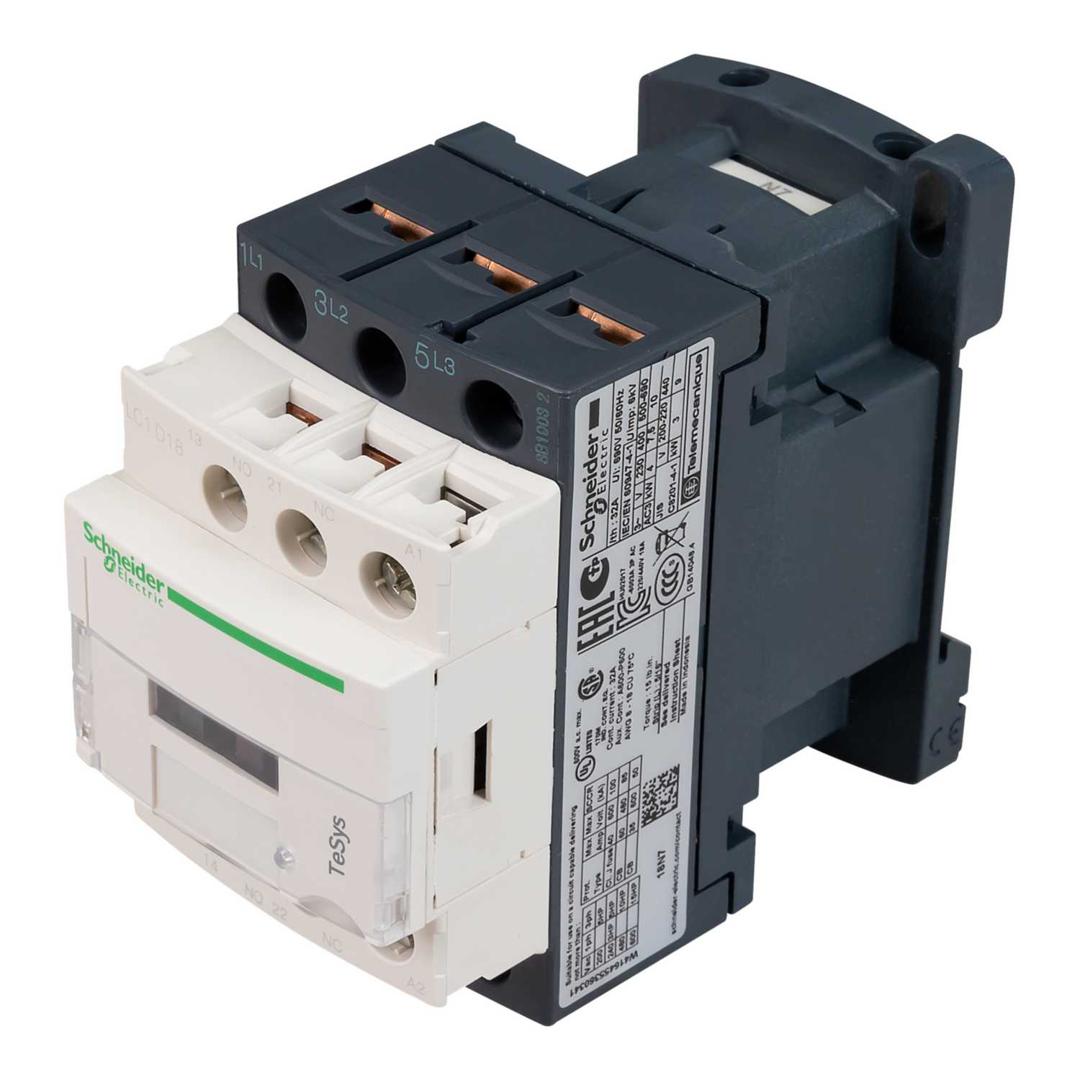

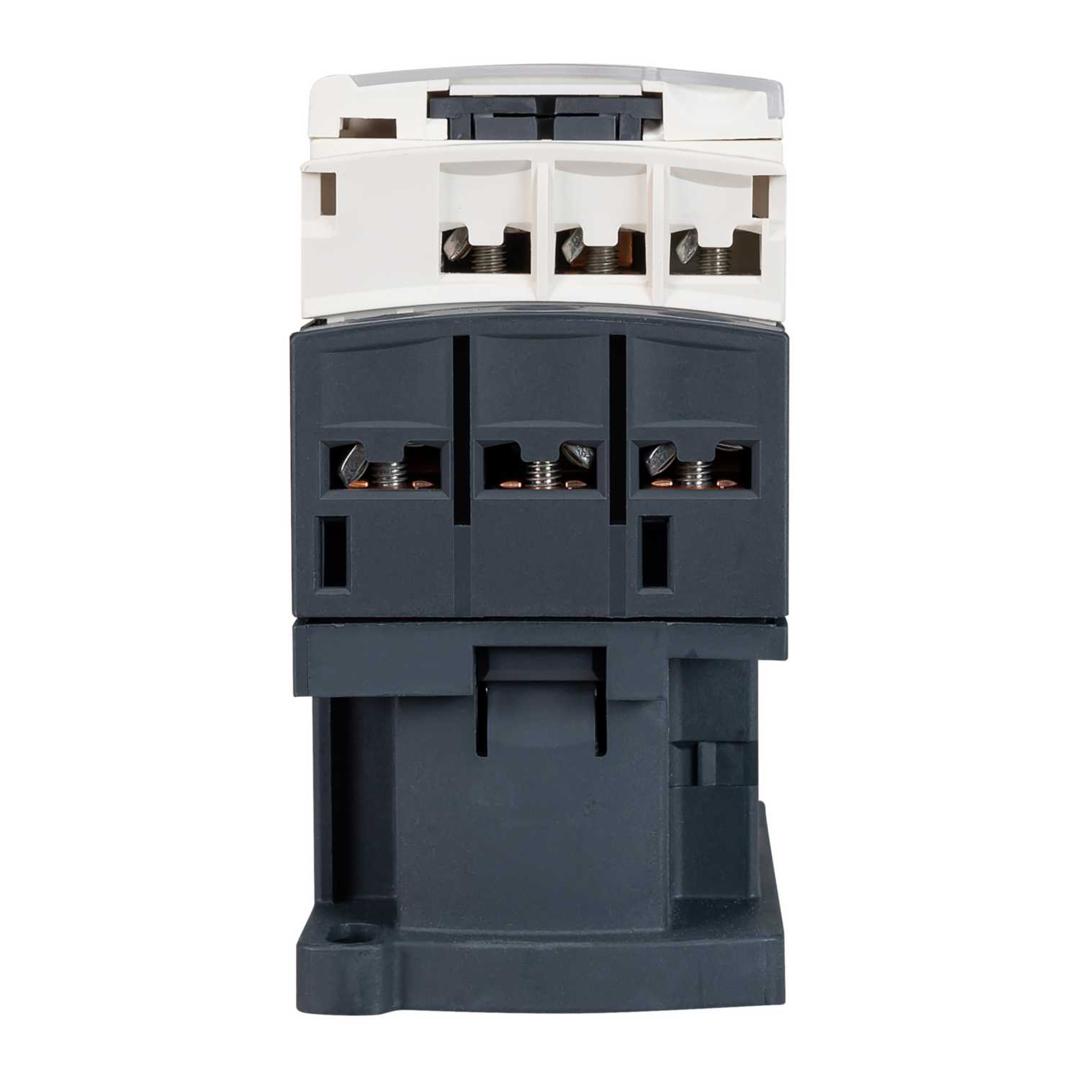

For motor control applications up to 18A/690V AC-3/3e (7.5kW at 400V)
Suitable for motors and resistive loads
Easier to install and operate with multi-standard screws
IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
Please note product colour may vary from the product image
Auxiliary Contact
1 NO 1 NC
Coil Voltage
415V AC
Colour
Dark Grey
Contact Configuration
3 NO
Current Rating Ac1
32A
Current Rating Ac3
18A
Depth
86mm
Dimensions
(H)77 mm x (W)45 mm x (D)86 mm
Frequency
50/60 Hz
Guarantee
18 Months
Height
77mm
IP Rating
IP20
Material
Plastic
Mounting
Panel or DIN Rail
Number Of Poles
3 Pole
Online Search Priority
1
Packaging Types
Each
Product Range
TeSys D
Standards
CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 60947-4-1
IEC 60335-1:Clause 30.2
IEC 60335-2-40:Annex JJ
UL 60335-2-40:Annex JJ
CSA C22.2 No 60947-4-1
