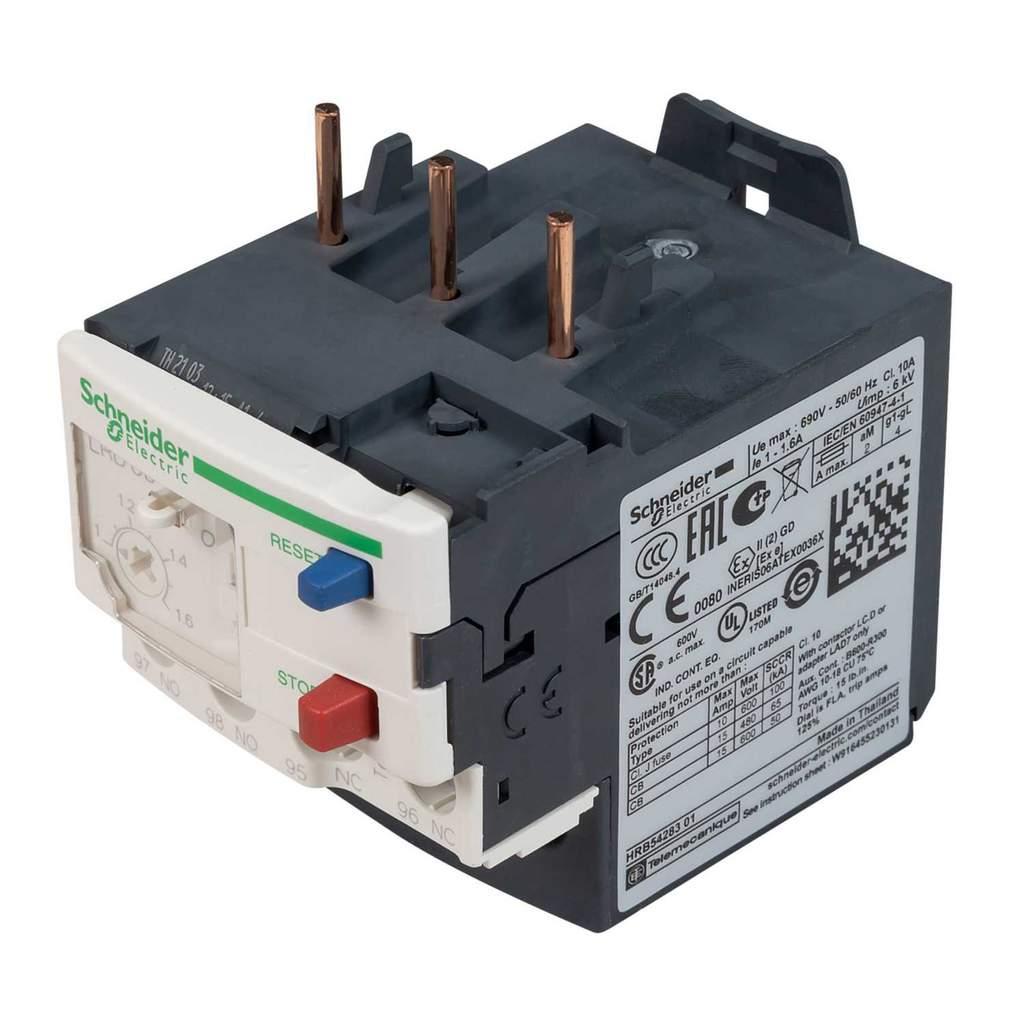

Schneider 1.0 to 1.6A TeSys D Thermal Overload Relay
Part Number: LRD06
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- TeSys LRD thermal overload relay
- Thermal setting range 1-1.6A, tripping class 10A, for protection of 3-phase motors 0.55kW at 400V
- Provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons and a flag indicator
- 1NO+1NC auxiliary contacts
- Connects directly to the bottom terminals of 3 pole contactors with references LC1D09 to D38
- Can be mounted on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately)
- Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine)
- Please note product colour may vary from the product image
- Colour
- Dark Grey
- Depth
- 70mm
- Dimensions
- (H)66 mm x (W)45 mm x (D)70 mm
- Frequency
- 0 - 400 Hz
- Guarantee
- 18 Months
- Height
- 66mm
- Ip Rating
- IP20
- Material
- Plastic
- Operating Temperature Range
- -20 - 60°C
- Overload Rating
- 1 - 1.6A
- Packaging Types
- Each
- Product Range
- TeSys D
- Standards
- EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495
- Type
- Thermal Overload Relay
- Weight
- 0.124kg
- Width
- 45mm
