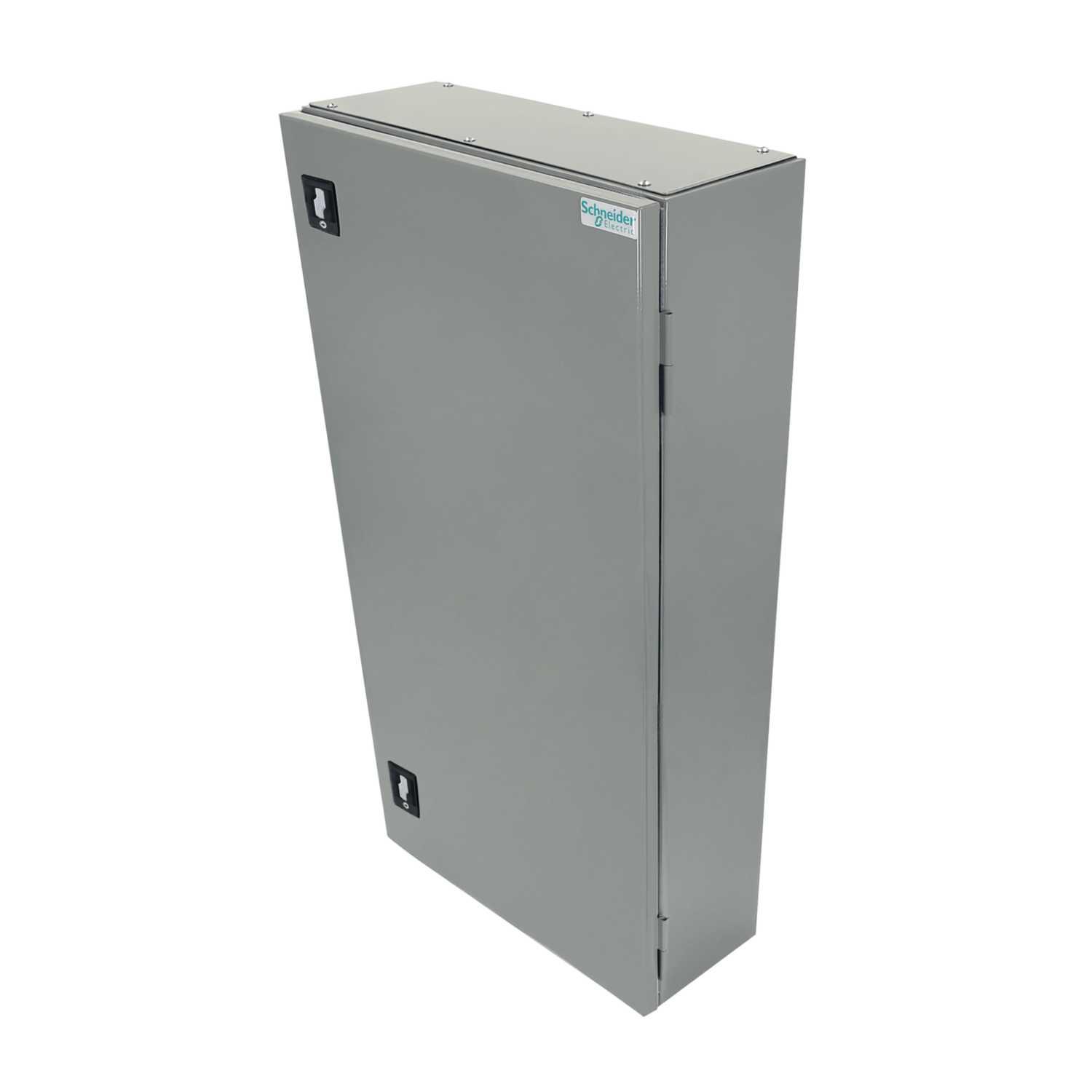

Schneider 96 Way 250A Main Switch Encapsulated Acti9 TPN Panelboard Grey
Part Number: MB296F32
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 phase distribution board constructed from sheet metal, powder coated N42 storm grey
- 250A isolator main switch
- 250A rated busbar
- Encapsulated Isobar chassis has a unique busbar disconnection system that allows unused outgoing poles to be mains isolated via slider switch
- 18 x 18mm modules of spare DIN space
- Plain hinged door with 2 x key lockable handles
- IP44 with door in closed position
- Removeable escutcheon
- Cable Entry
- Removable Gland Plate Bottom
- Colour
- Grey
- Current Rating
- 250A
- Depth
- 235mm
- Dimensions
- (H)1500 mm x (W)580 mm x (D)235 mm
- Door Type
- Hinged
- Finish
- Powder Coated
- Guarantee
- 18 Months
- Height
- 1500mm
- IP Rating
- IP44
- Lockable
- Yes
- Material
- Steel
- Mounting
- Surface
- Number Of Outgoing Ways Upto63 A
- 96
- Packaging Types
- Each
- Product Range
- Acti9
- Standards
- AS/NZS 61439
- Type
- Distribution Board
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 415V AC
- Weight
- 46kg
- Width
- 580mm
