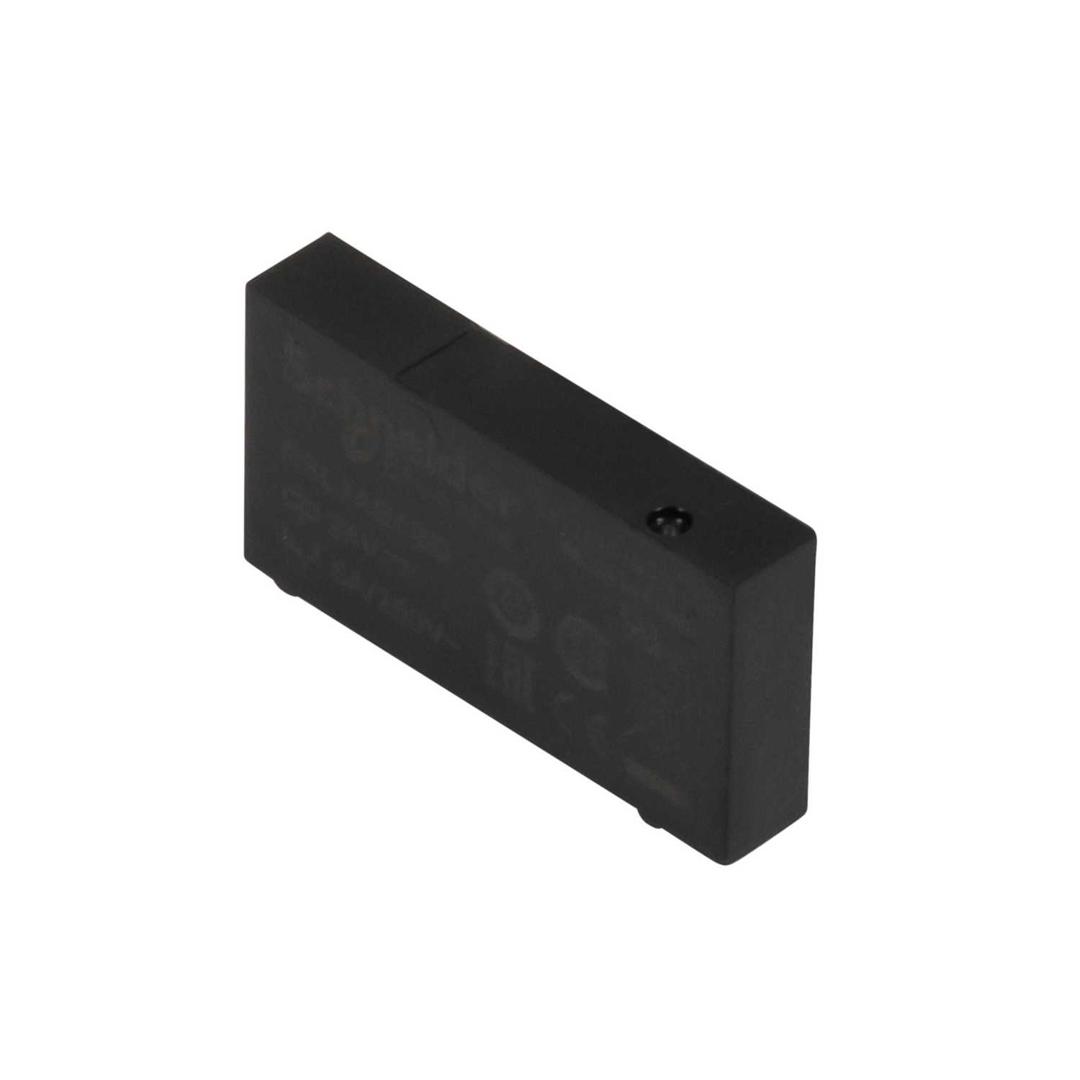

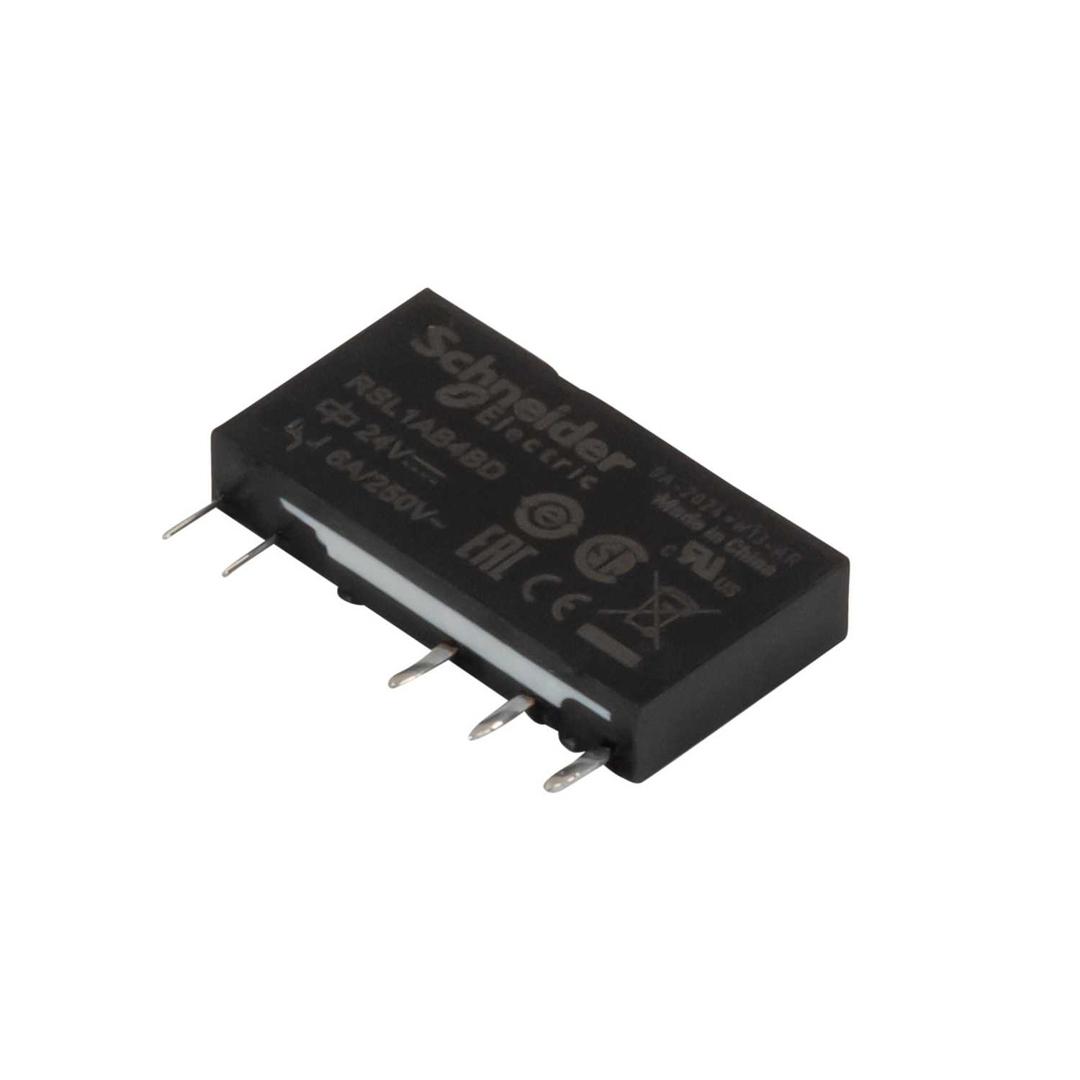

Schneider Harmony 1CO 24V DC 6.0A Slim Interface Electromechanical Relay
Part Number: RSL1AB4BD
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A
- Helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere
- One of the slimiest interface relay on the market, with 6mm width, it can be installed almost anywhere
- Easy installation and withdrawal the relay from its socket
- Compatible with high breaking capacity or low-level current application requirements
- Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)
- Status display with LED, clearly signal both in the day and night
- Colour
- Beige
- Current Rating
- 6.0A
- Dimensions
- (L)18.5 mm x (H)28 mm x (W)5.0 mm
- Guarantee
- 18 Months
- Height
- 28mm
- Indication Lamp
- Yes
- Length
- 18.5mm
- Material
- Self-Extinguishing Plastic
- Mounting
- Plug In
- Packaging Types
- Each
- Product Range
- Harmony
- Standards
- IEC 61810-1
- Type
- Plug In Relay
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 24V DC
- Weight
- 0.006kg
- Width
- 5.0mm
