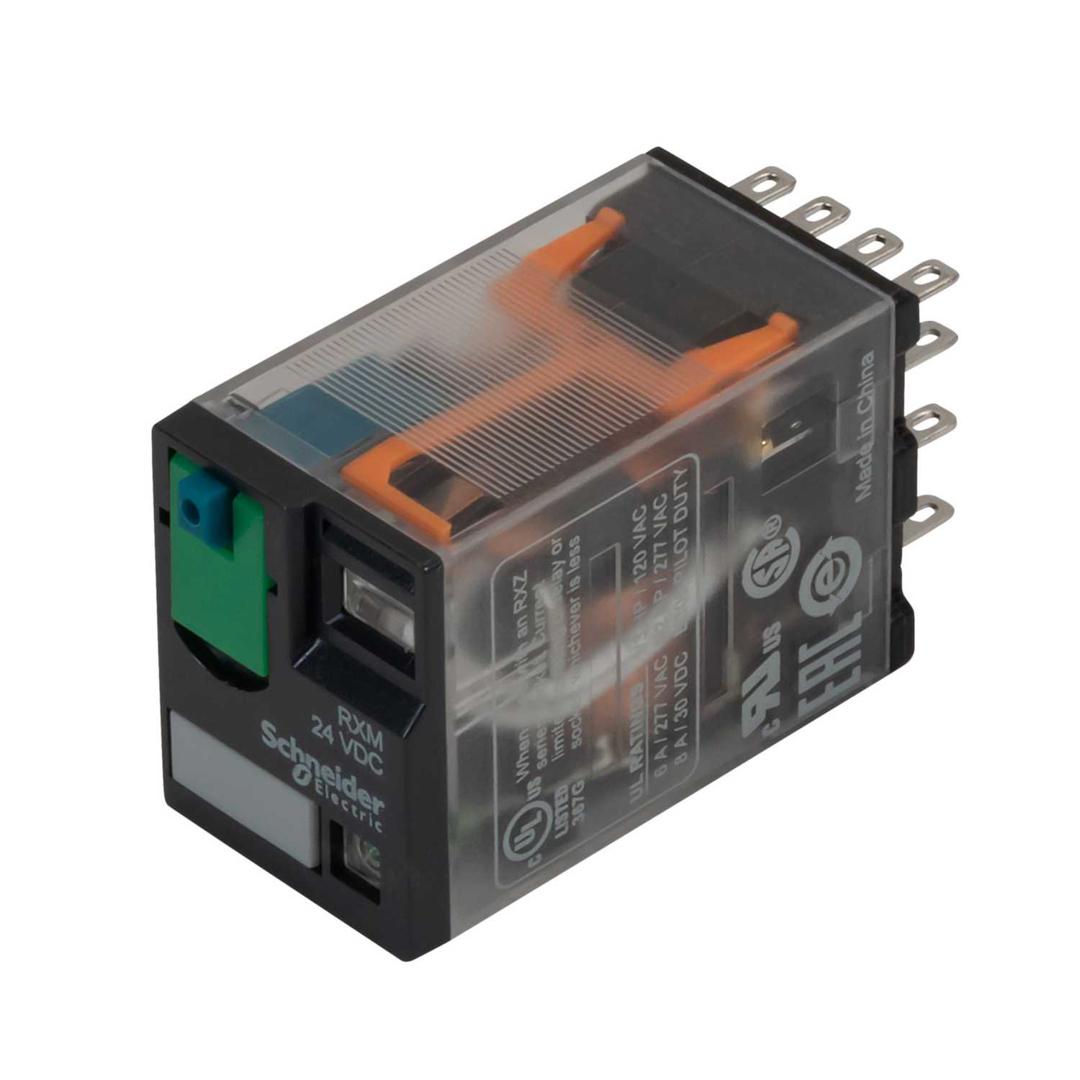

Schneider Harmony 4CO 24V DC 12A Mini Plug-in Relay with LED and Test Button
Part Number: RXM4AB2BD
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Plug-in relay to be mounted on a RXZE socket
- 4 C/O relay with current rating of 12A, control circuit voltage of 24 V DC
- Offers one-step lockable test button and mechanical indicator for contact status
- Test button is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green toggle
- Mechanical indicator is next to the test button, where an orange flag indicates the relay contact status
- Green LED on the front will illuminate when the relay is on, status display with LED clearly signal both in the day and night, its design is fit for industrial machines
- Suitable for packaging, textile, HVAC, automation control panels, low/medium voltage switch gear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls
- Designed for both simple and complex automation systems
- Changeover
- Yes
- Coil Voltage
- 24V DC
- Colour
- Transparent
- Contact Configuration
- 4 CO
- Current Rating
- 12A
- Depth
- 46mm
- Dimensions
- (H)27 mm x (W)21 mm x (D)46 mm
- Guarantee
- 18 Months
- Height
- 27mm
- IP Rating
- IP40
- Maximum Operating Temperature
- 55°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Plug-In

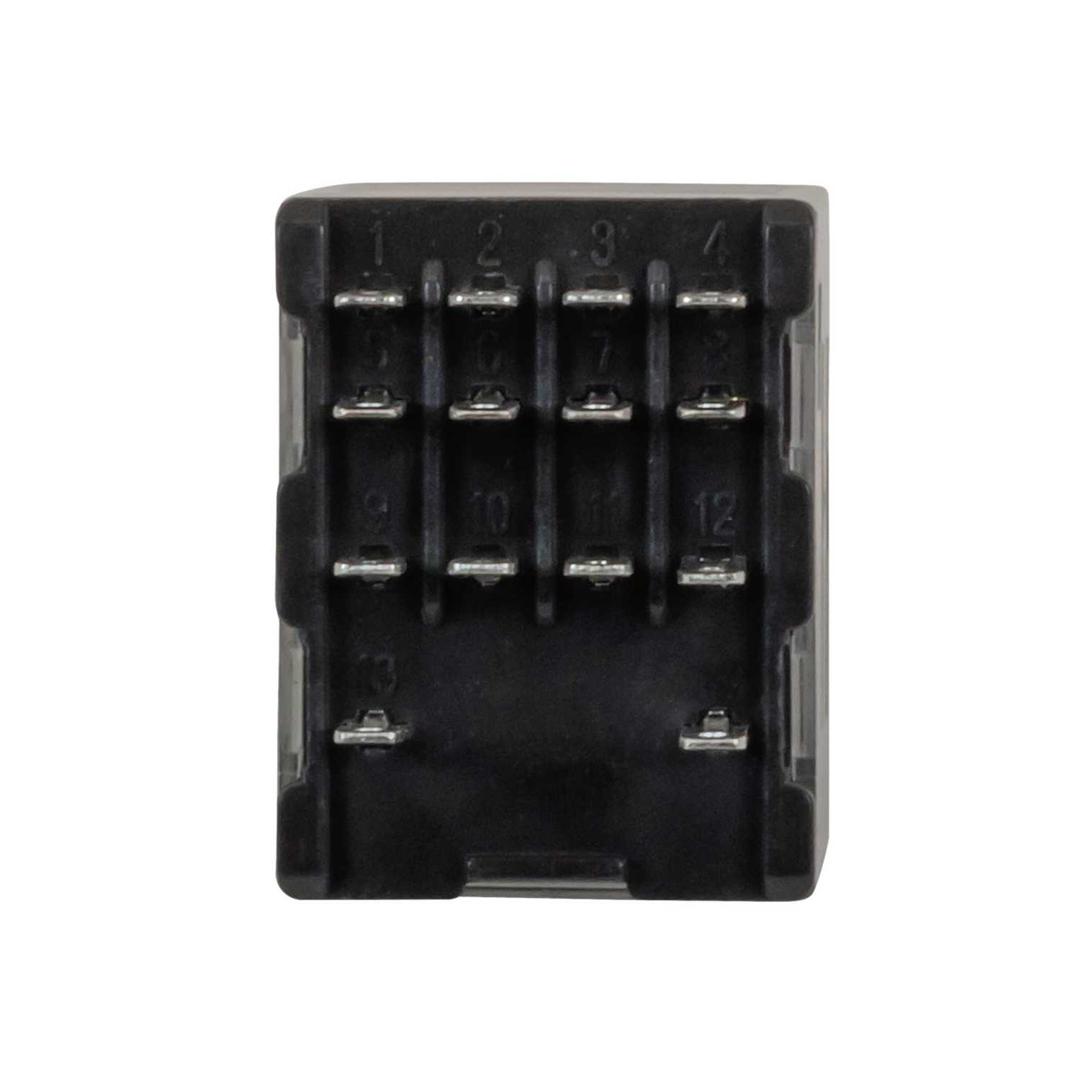

- Number Of Pins
- 14
- Number Of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- Harmony
- Standards
- IEC 61810-1
- Type
- Plug In Relay
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 24V DC
- Weight
- 0.036kg
- Width
- 21mm
