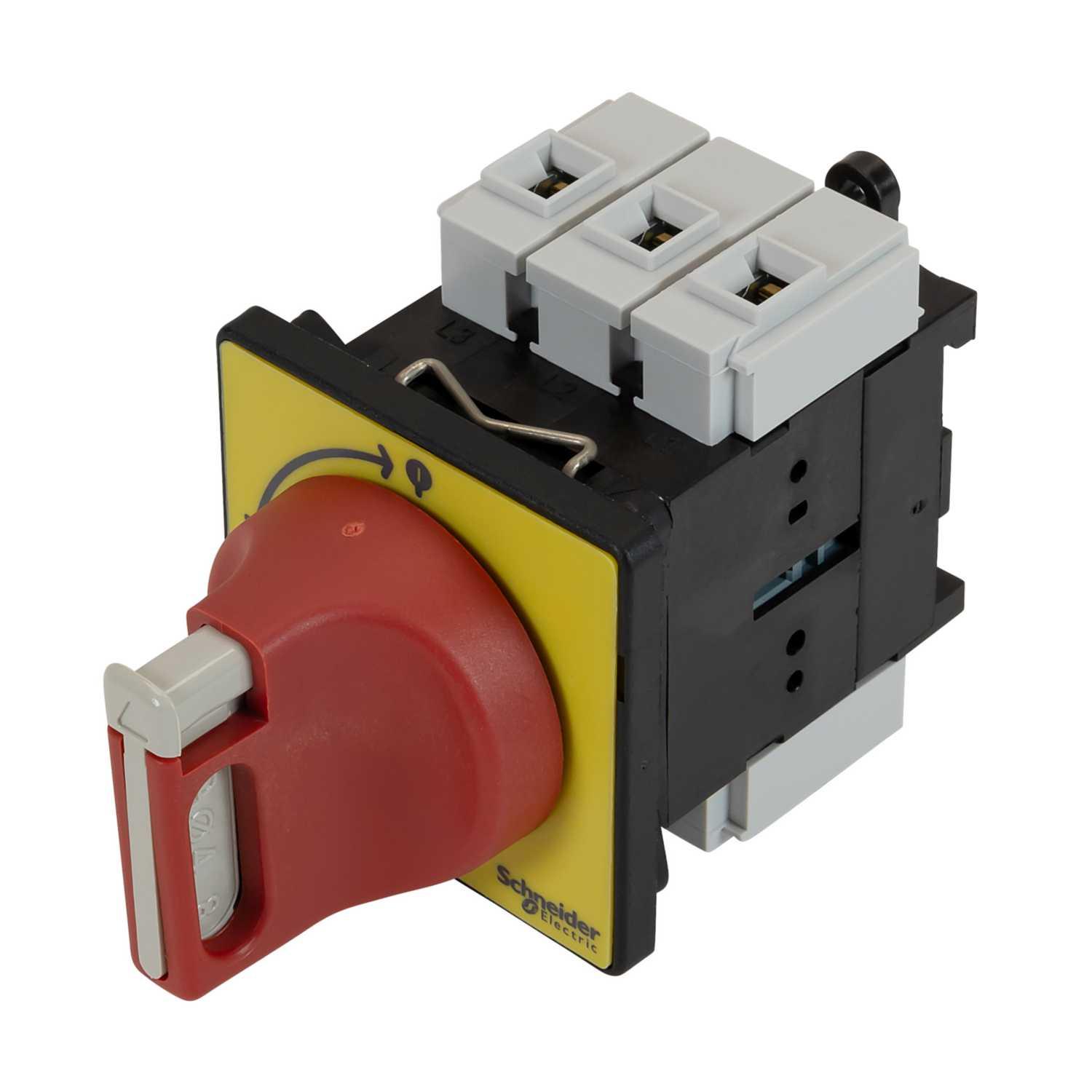

Schneider 32A Mini Vario On Door Emergency Stop Disconnector Switch
Part Number: VCF1
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- TeSys Vario switch disconnector for door mounting, 3 poles, 32A/690V, for motor switching applications up to 11kW@400V AC-23
- Unit composed of a switch body V1, a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage
- Padlockable handle, for 3 padlocks (to be ordered separately)
- Handle with 4 screws fixing on door, ensuring IP65 to the mounting
- Colour
- Red/Yellow/Black
- Current Rating
- 32A
- Dimensions
- (L)60 mm x (H)74 mm x (W)60 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 74mm
- Length
- 60mm
- Material
- Plastic
- Mounting
- On Door
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- Cam Switches
- Standards
- IEC 60947-3
- Terminal Type
- Screw
- Type
- Emergency Stop Disconnection Switch
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Voltage Rating
- 690V
- Weight
- 0.205kg
- Width
- 60mm
