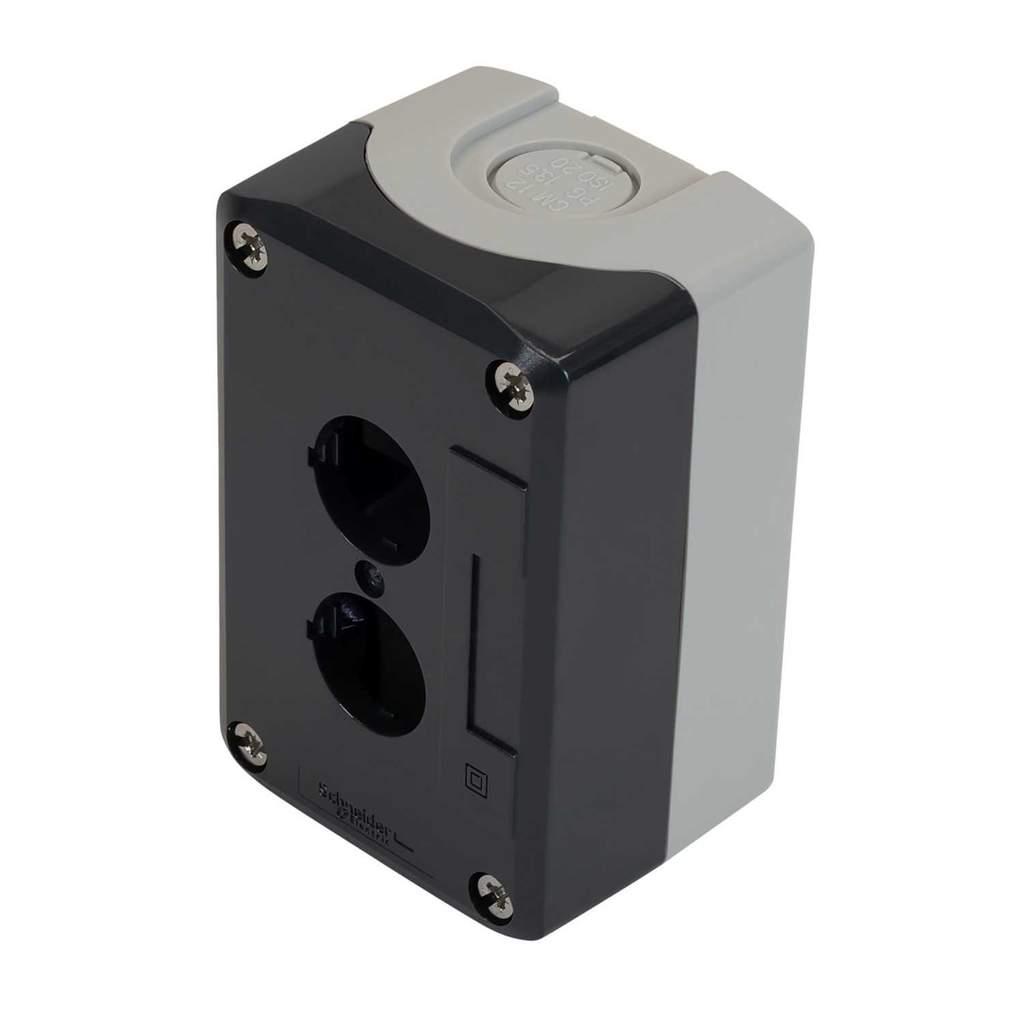

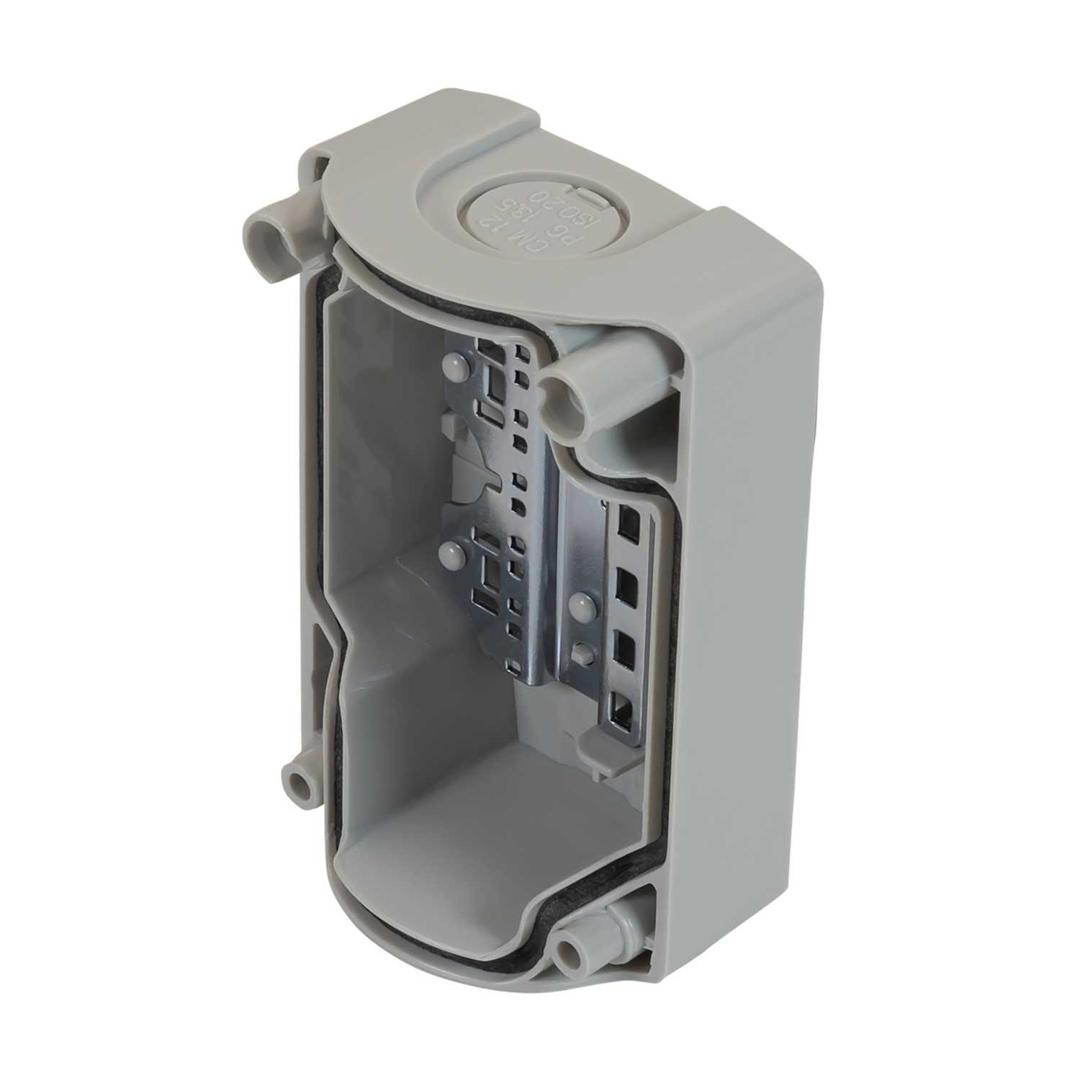

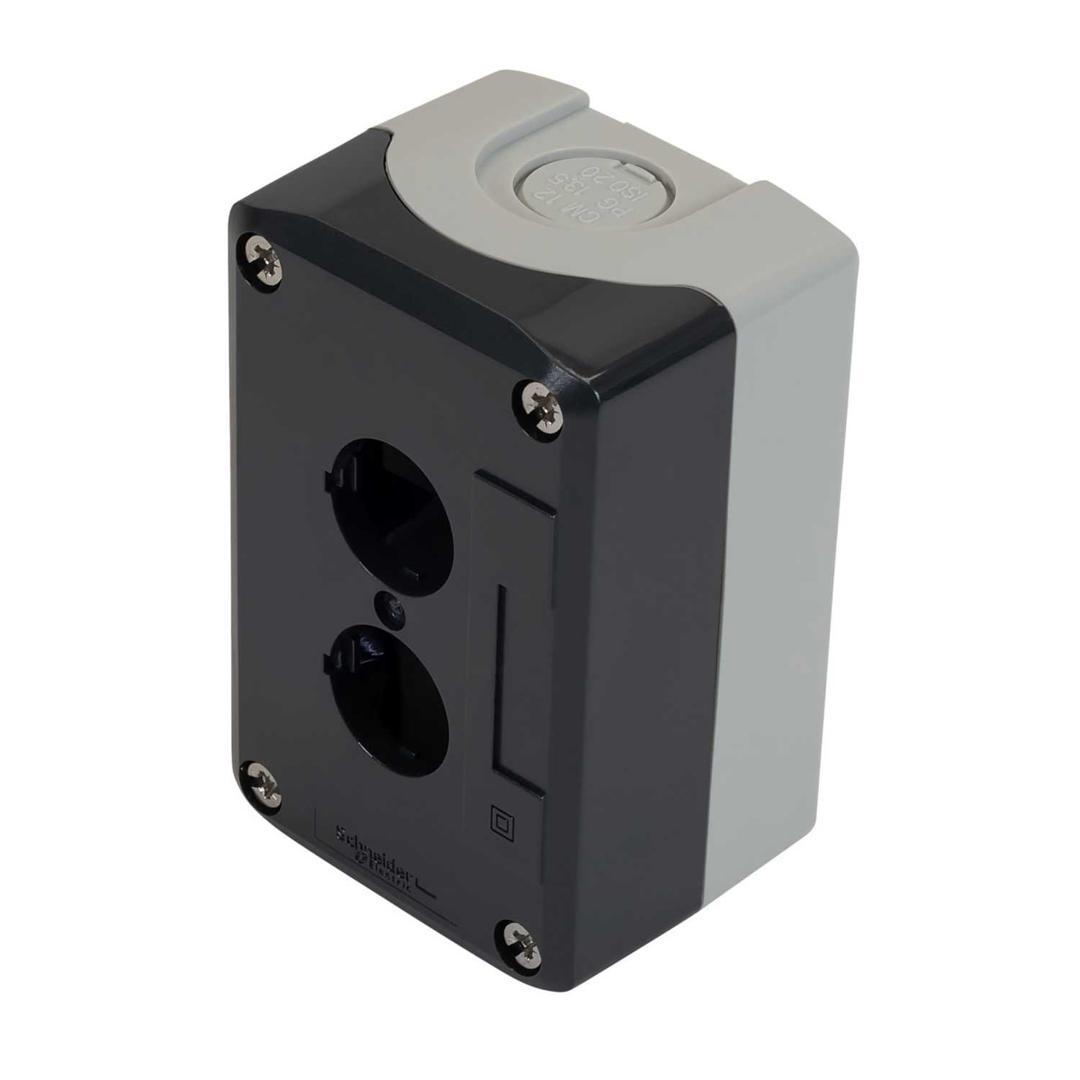

Schneider Harmony XALD 2 Hole Plastic Empty Control Station Grey
Part Number: XALD02
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Plastic empty control station for use with Harmony XB5 series Ø 22mm control and signalling units
- Light grey base with a dark grey cover for visual contrast in dark conditions
- 2 x 22.5mm holes in vertical arrangement
- 2 knock-outs for cable entry, clamping capacity: 14mm 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12mm
- IP66, IP67, IP69 and IP69k when appropriate glands and Harmony XB5 products are installed correctly
- Mechanical impact protection IK03
- Cable Entry
- 2 Knock-outs for Cable Entry 2 Knock-outs for Pg 13 Cable Gland and ISO M20
- Colour
- Black/Grey
- Cut Out
- 22.5mm
- Depth
- 53mm
- Dimensions
- (H)106 mm x (W)68 mm x (D)53 mm
- Guarantee
- 18 Months
- Height
- 106mm
- IP Rating
- IP66 / IP67 / IP69
- Material
- Polycarbonate
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Surface
- Number Of Ways
- 2
- Packaging Types
- Each
- Product Range
- Harmony XALD
- Standards
- IEC 60947-5-5 IEC 60947-5-4 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-5-1 IEC 60947-1 UL 508 JIS C8201-1
- Type
- Empty Control Station
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 0.161kg
- Width
- 68mm
