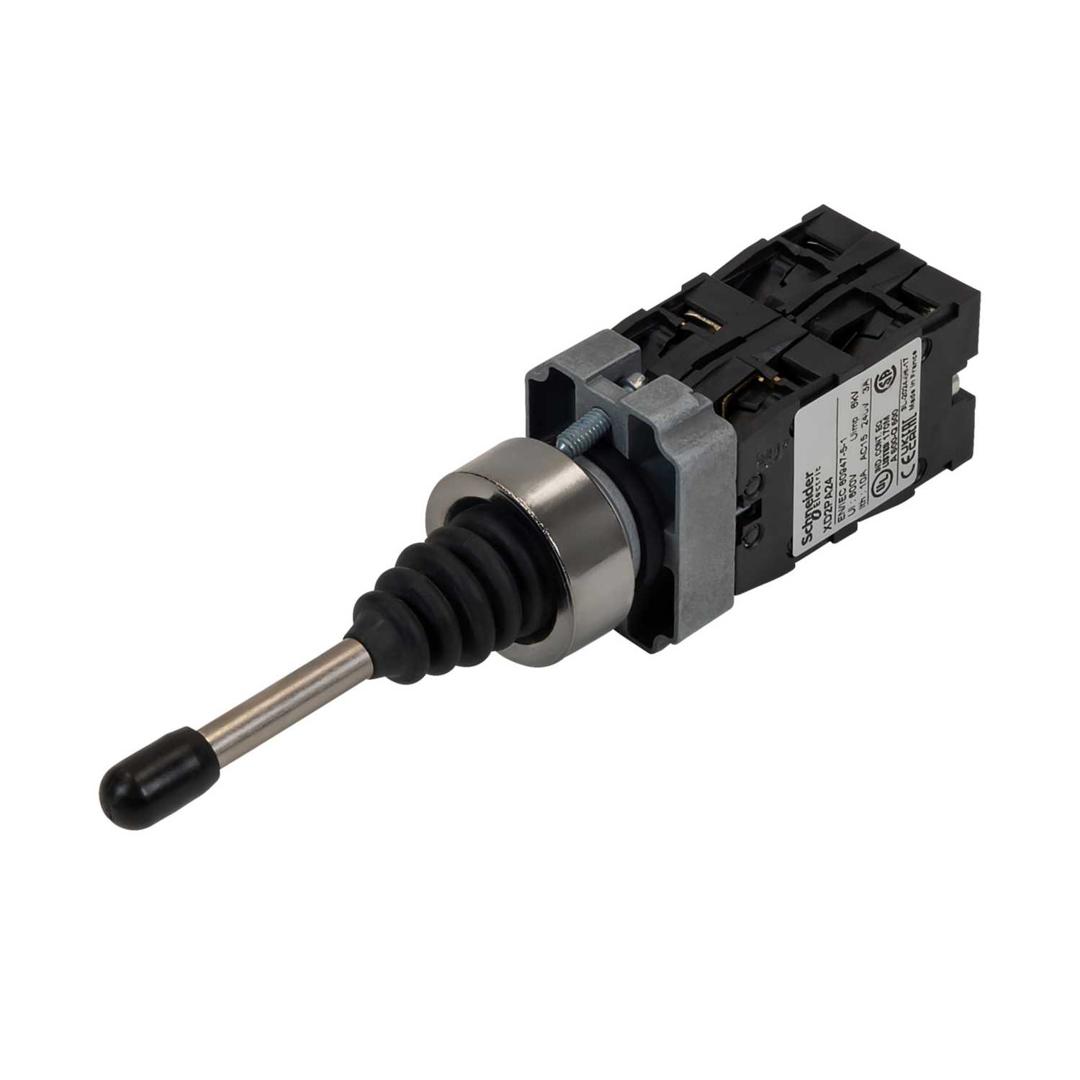

Schneider Harmony XD2 4 Direction Spring Return to Zero Joystick Controller
Part Number: XD2PA24
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Complete joystick controller, spring return to zero

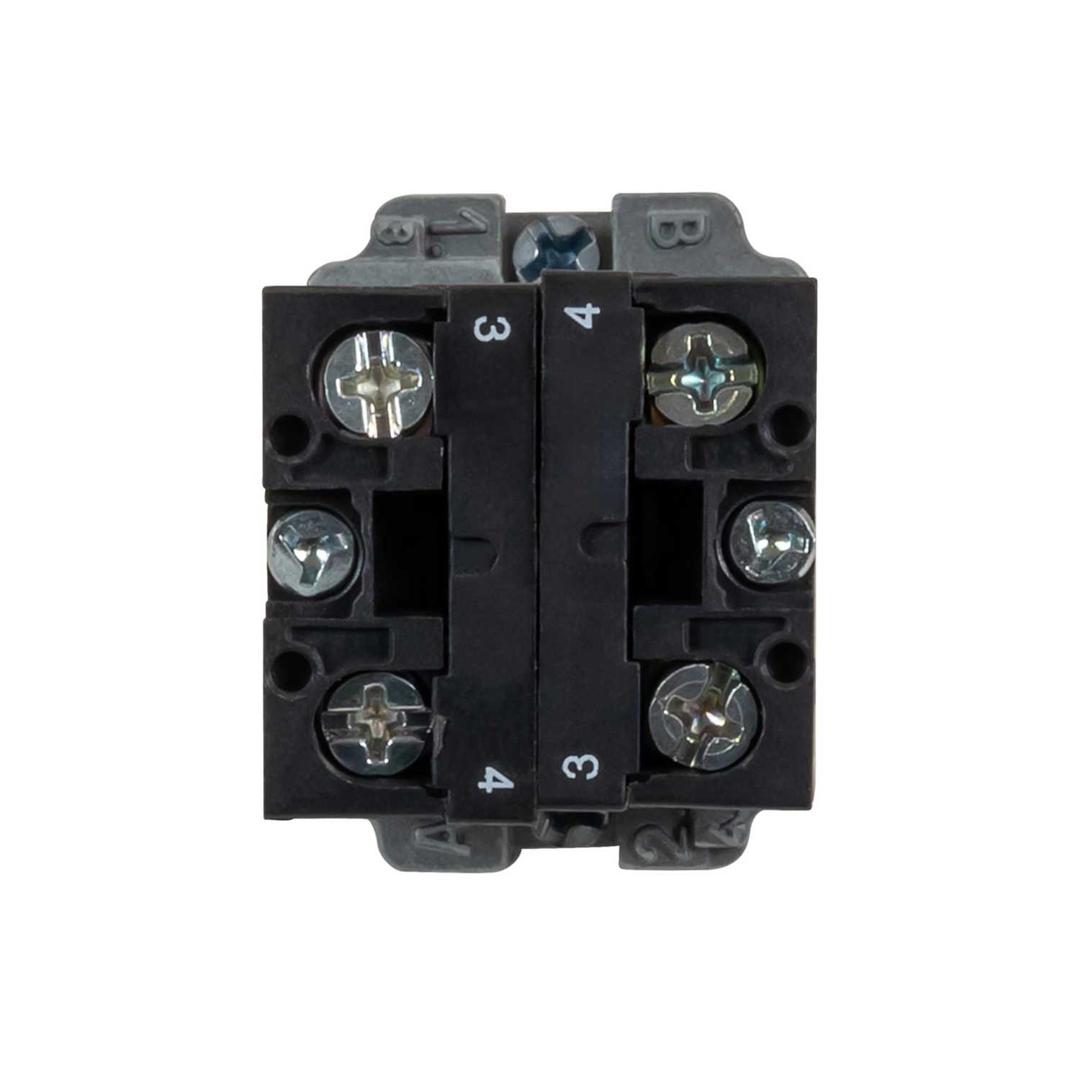

- 4 directions with one NO contact per direction and screw connection type
- Easily installed into a standard 22.5mm diameter cut-out
- Chrome plated metal bezel and metal fixing collar
- Colour
- Black/Chrome
- Contact Configuration
- 4 NO
- Cut Out
- 22.5mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (H)146 mm x (W)30 mm
- Guarantee
- 18 Months
- Height
- 146mm
- Ip Rating
- IP66
- Joystick Directions
- 4
- Material
- Metal
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Notches Per Direction
- 1
- Number Of Positions
- 5
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony XD2
- Standards
- IEC 60947-5-4 IEC 60947-5-5 IEC 60947-1 IEC 60947-5-1
- Type
- Joystick
- Unspsc V18
- 39122227
- Unspsc V24
- 39122227
- Weight
- 0.155kg
- Width
- 30mm
