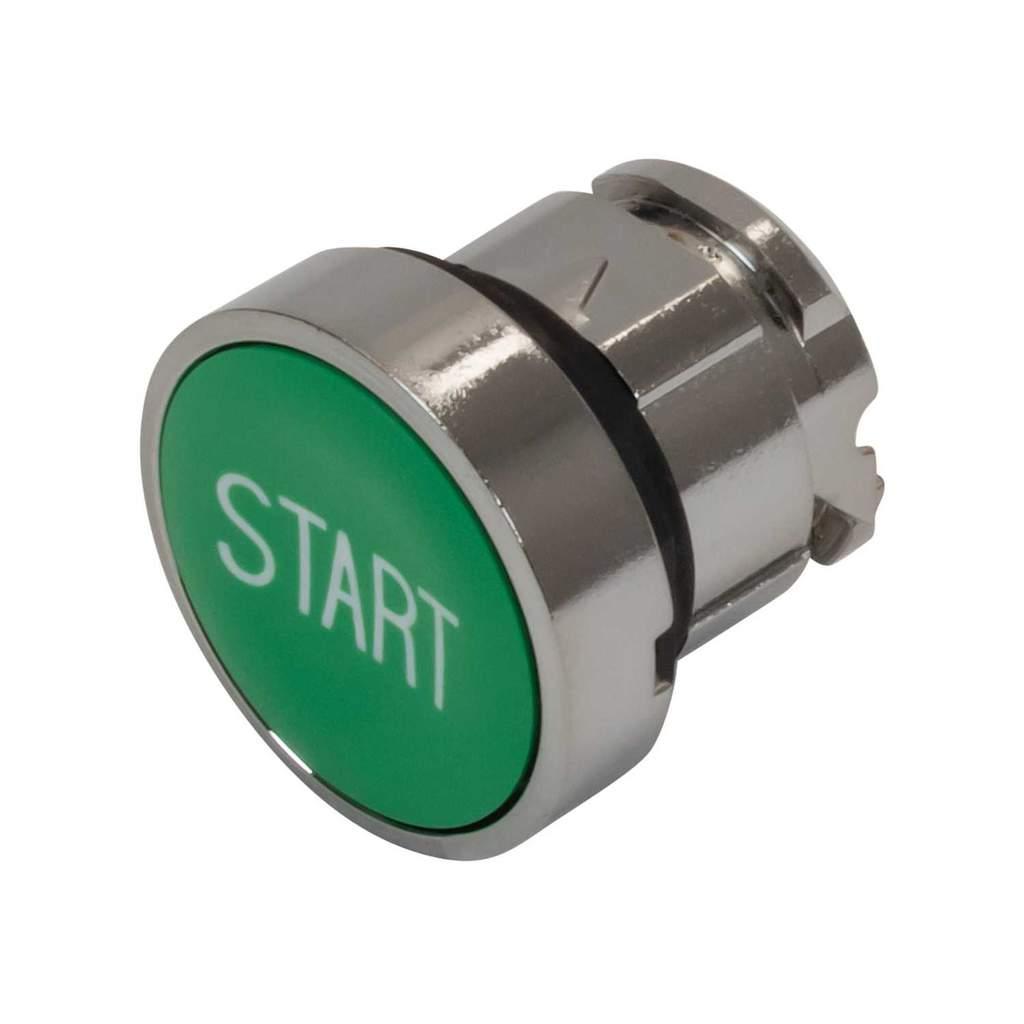

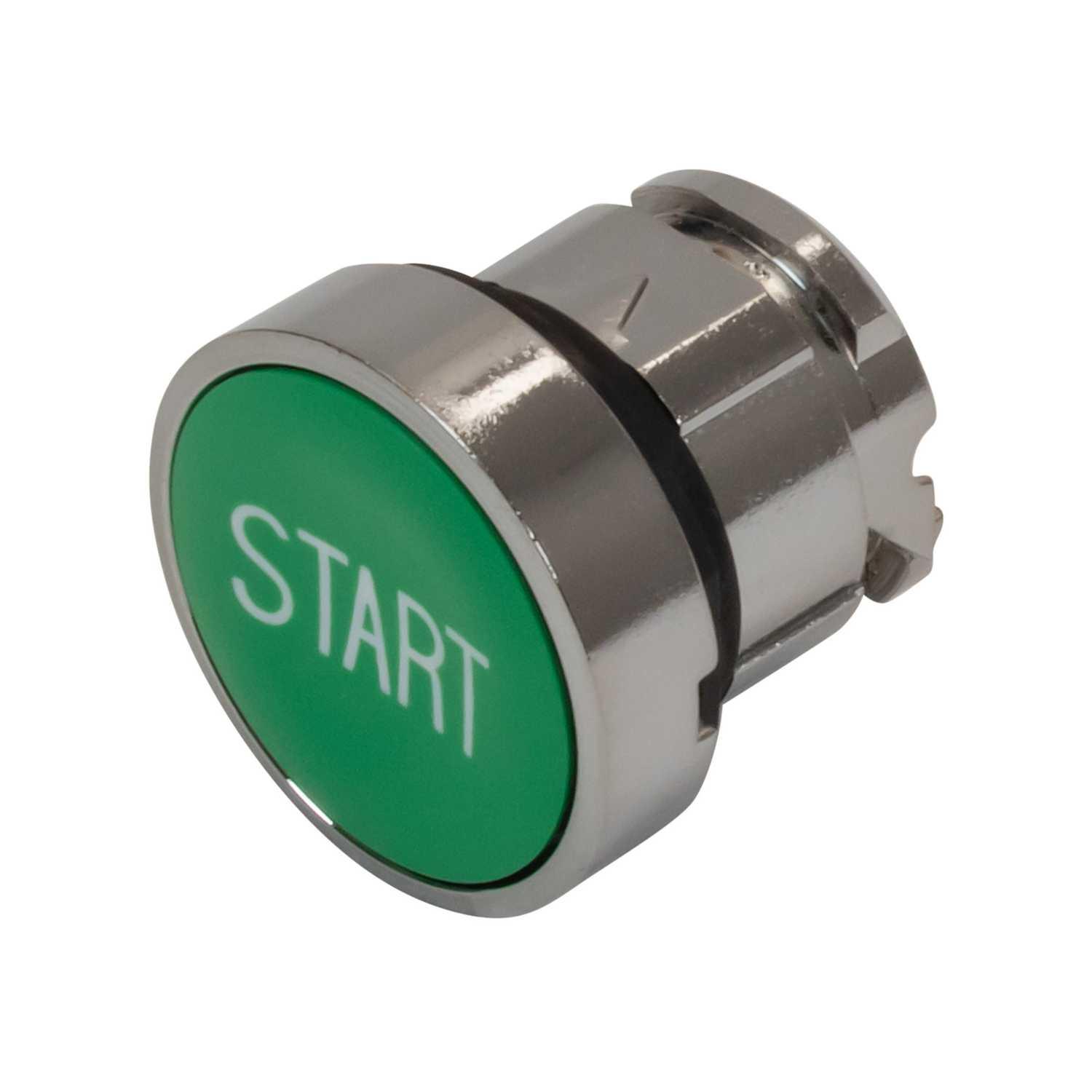

Schneider Harmony XB4 Spring Return Metal Bezel Pushbutton Head Marked START Green
Part Number: ZB4BA333
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Head only for non-illuminated pushbutton
- Momentary modular pushbutton that operates with a spring return / impulse mechanism
- For installation in standard 22.5mm diameter panel cut-outs
- Chromium plated metal bezel with flush pushbutton marked with START
- Impact, dust, water and vibration resistant
- Colour
- Green
- Cut Out
- 22.5mm
- Depth
- 28mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)29 mm x (D)28 mm
- Finish
- Chromium Plated
- Guarantee
- 18 Months
- Head Type
- Standard
- Ip Rating
- IP66 / IP67 / IP69
- Legend
- START
- Material
- Metal, Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Panel
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Standards
- CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-4 IEC 60947-5-1 IEC 60947-5-5 UL 508 JIS C8201-5-1 JIS C8201-1
- Type
- Pushbutton Head
- Unspsc V18
- 39122221
- Unspsc V24
- 39122221
- Weight
- 0.028kg
- Width
- 29mm
