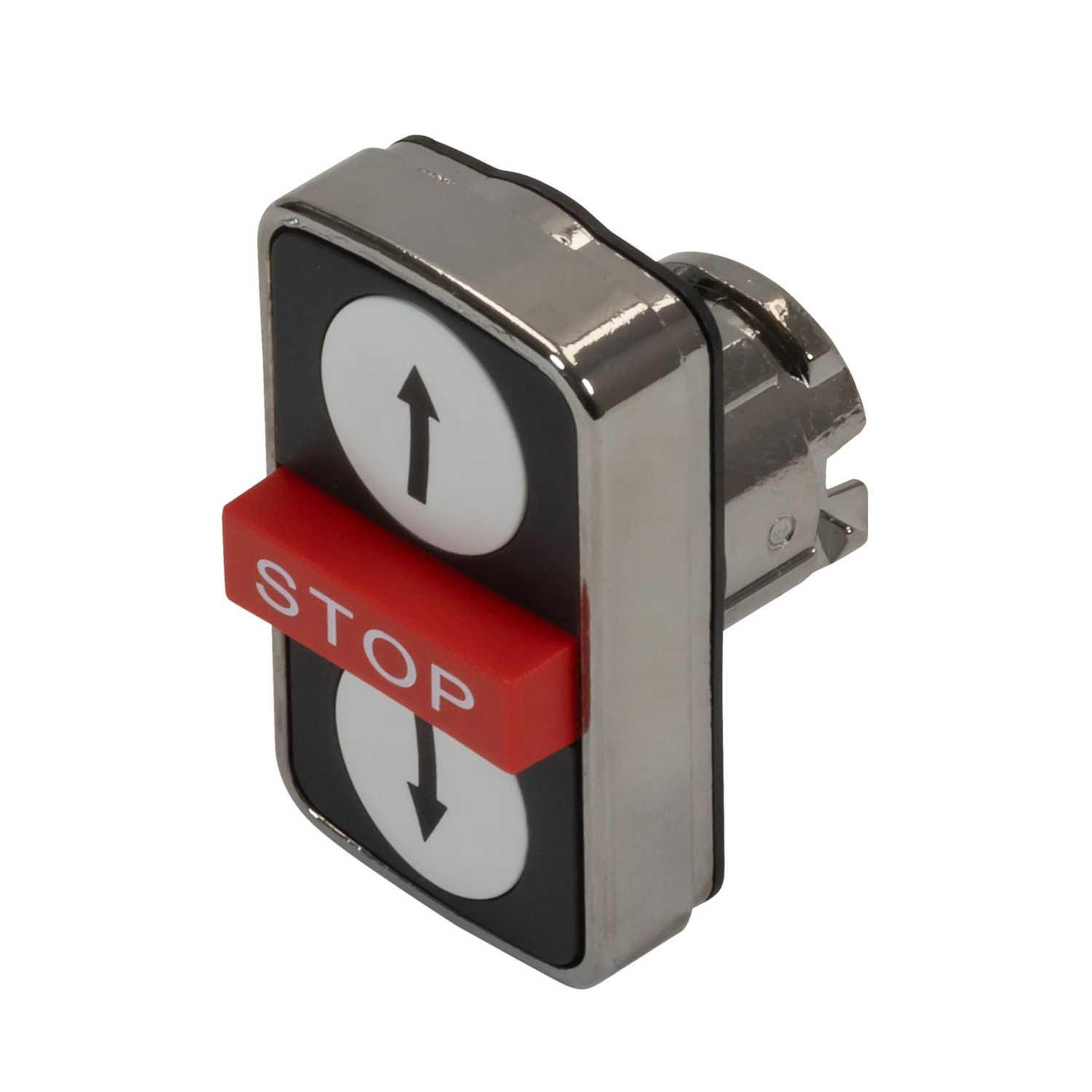

Schneider Harmony XB4 Triple Headed Marked UP DOWN Pushbutton Head Projecting Stop
Part Number: ZB4BA71114
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Operator profile: 2 flush - 1 central projecting STOP pushbuttons
- Operators description: white "up arrow" black "down arrow"
- Triple head has 1 red and 2 white buttons, operates with a spring return / impulse mechanism
- 3-function head provides a complete 3 button interface to your machines with a single panel cut-out
- Easily installed into a standard 22.5mm diameter cut-outs and assembled with a collar and contact blocks to fulfill a large variety of functions
- Impact resistant, dust resistant, water resistant and vibration resistant
- Designed to fit in a standard 22.5mm cut-out, ensuring compatibility when installing in pre-existing machinery
- Button Profile
- 2 Flush + 1 Projecting
- Colour
- Black/Red
- Cut Out
- 22.5mm
- Depth
- 35mm
- Dimensions
- (H)50 mm x (W)30 mm x (D)35 mm
- Guarantee
- 18 Months
- Height
- 50mm
- Illuminated
- No
- Ip Rating
- IP66 / IP67 / IP69K
- Legend
- "↑" and "↓"
- Material
- Metal / Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Standards
- IEC 60947-1 IEC 60947-5-1 IEC 60947-5-4 IEC 60947-5-5
- Storage Temperature Range
- -40-70°C
- Type
- Pushbutton Head
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.058kg
- Width
- 30mm
