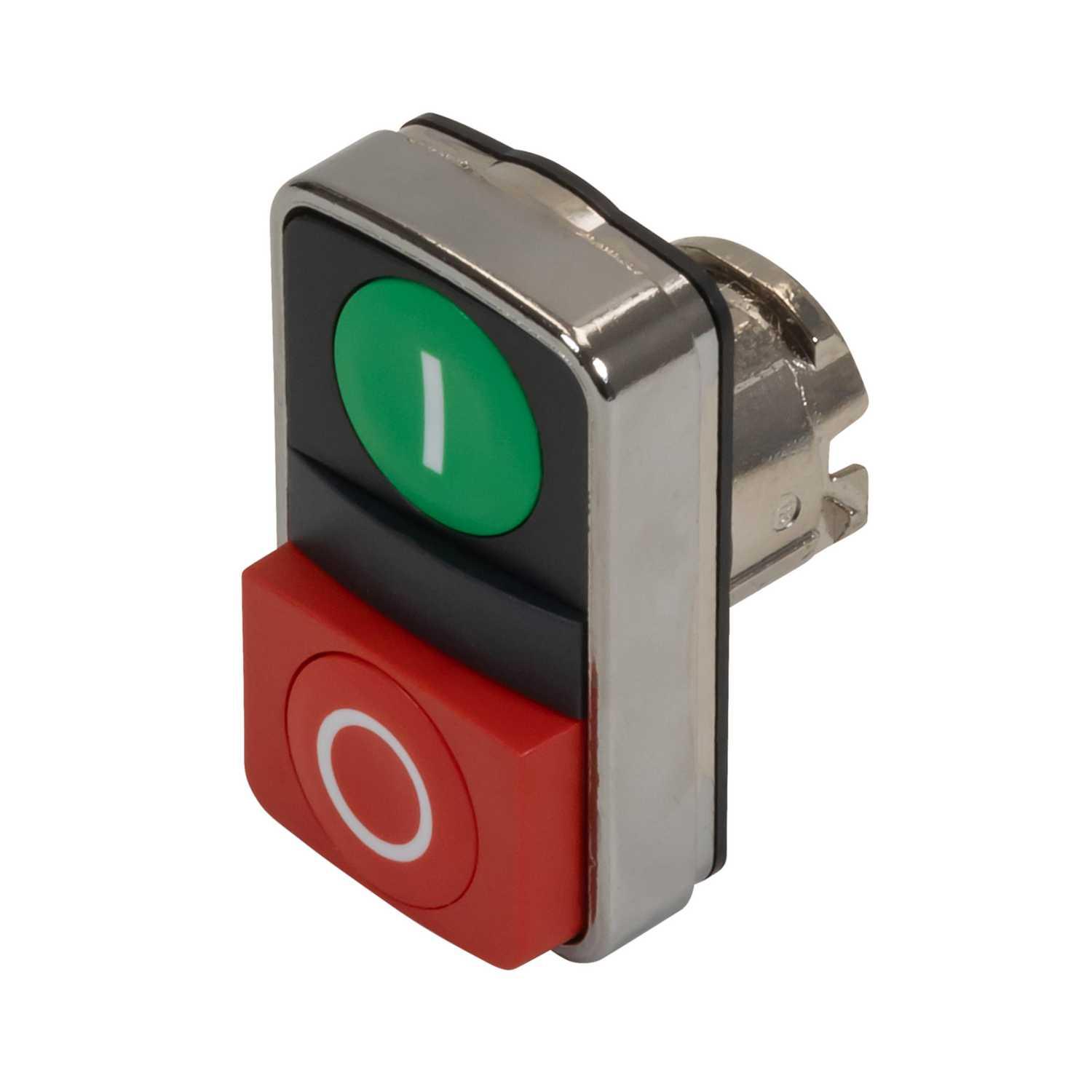

Schneider Harmony XB4 Double Headed Marked IO Pushbutton Head Projecting Stop
Part Number: ZB4BL7341
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Operator position information: 1 flush - 1 projecting push-buttons
- Double head has 1 red and 1 green button, operates with a spring return mechanism
- Operators description: Green "l" Red "O"
- Provides a versatile interface for controlling your machines
- Easily installed and replaced on compatible complete pushbutton units and contact blocks via snap-fit assembly
- Clearly distinguishable visually at a distance
- Impact resistant, dust resistant, water resistant and vibration resistant
- Designed to fit in a standard 22.5mm cut-out, ensuring compatibility when installing in pre-existing machinery
- Button Profile
- 1 Flush + 1 Projecting
- Colour
- Green/Red
- Cut Out
- 22.5mm
- Depth
- 31mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (H)50 mm x (W)30 mm x (D)31 mm
- Guarantee
- 18 Months
- Height
- 50mm
- Illuminated
- No
- Ip Rating
- IP66 / IP67 / IP69K
- Legend
- "l" and "0"
- Material
- Metal / Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Panel
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Standards
- IEC 60947-5-4 IEC 60947-1 IEC 60947-5-1 IEC 60947-5-5
- Storage Temperature Range
- -40-70°C
- Type
- Pushbutton Head
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.058kg
- Width
- 30mm
