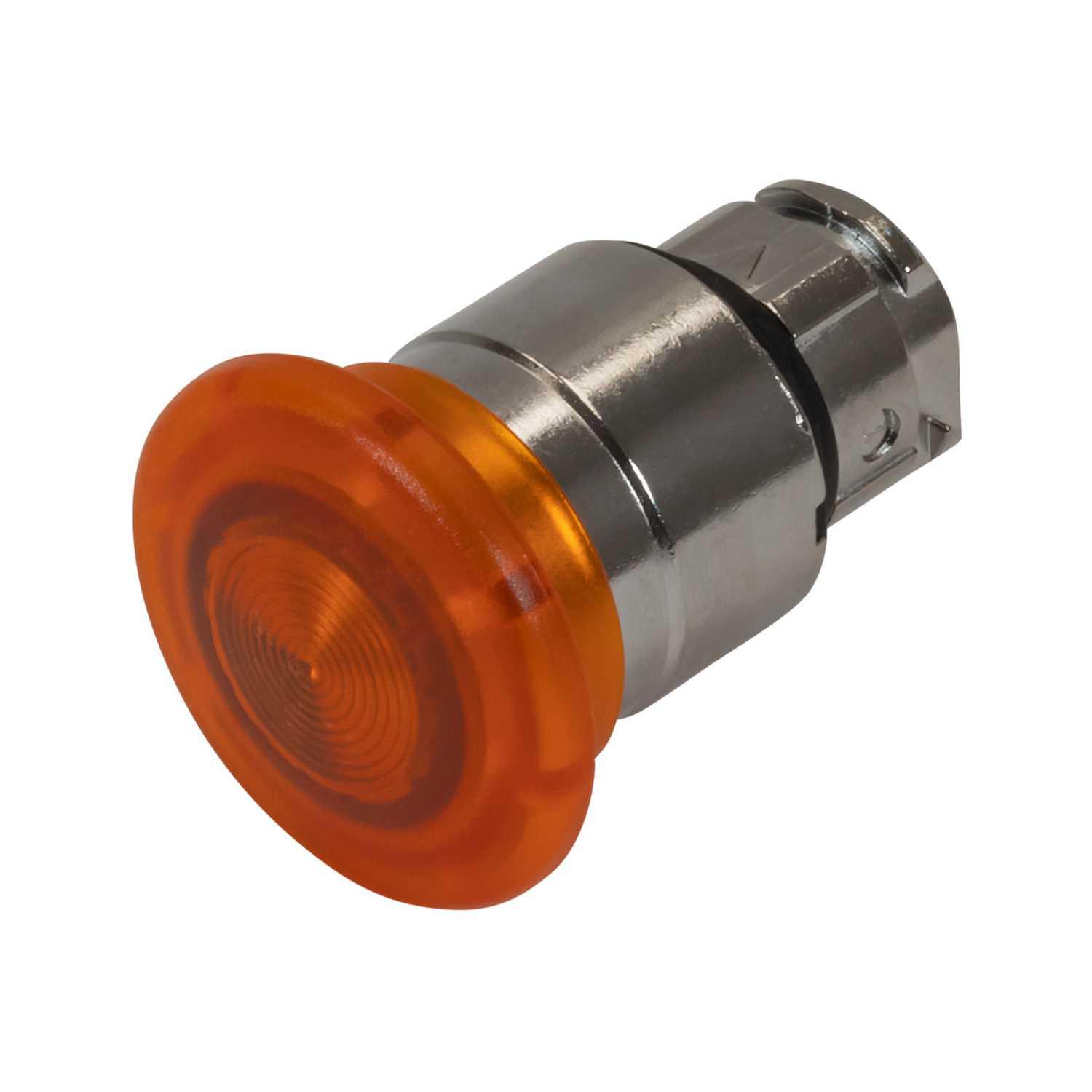

Schneider Harmony XB4 40mm Mushroom Illuminated Latching Pushbutton Head Orange
Part Number: ZB4BW653
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Head only for illuminated pushbutton
- Chrome plated metal bezel
- Stay put operation with pull release
- Mushroom button, unmarked
- Plain lens
- Compatible with universal LED block to be used for all colours
- Colour
- Orange
- Cut Out
- 22.5mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)40 mm
- Finish
- Chromium Plated
- Guarantee
- 18 Months
- Head Type
- Mushroom
- IP Rating
- IP66 / IP69
- Illuminated
- Yes
- Lamp Included
- No
- Material
- Metal
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Panel
- Operation Type
- Latching Push - Pull
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Standards
- CSA C22.2 No 14 JIS C8201-5-1 UL 508 IEC 60947-1 IEC 60947-5-1 IEC 60947-5-5 IEC 60947-5-4 JIS C8201-1 IEC 62262 IEC 60529 IEC 60536
- Storage Temperature Range
- -40-70°C
- Type
- Mushroom Pushbutton Head
- Unspsc V18
- 39122221
- Unspsc V24
- 39122221
- Weight
- 0.051kg
- Width
- 40mm
