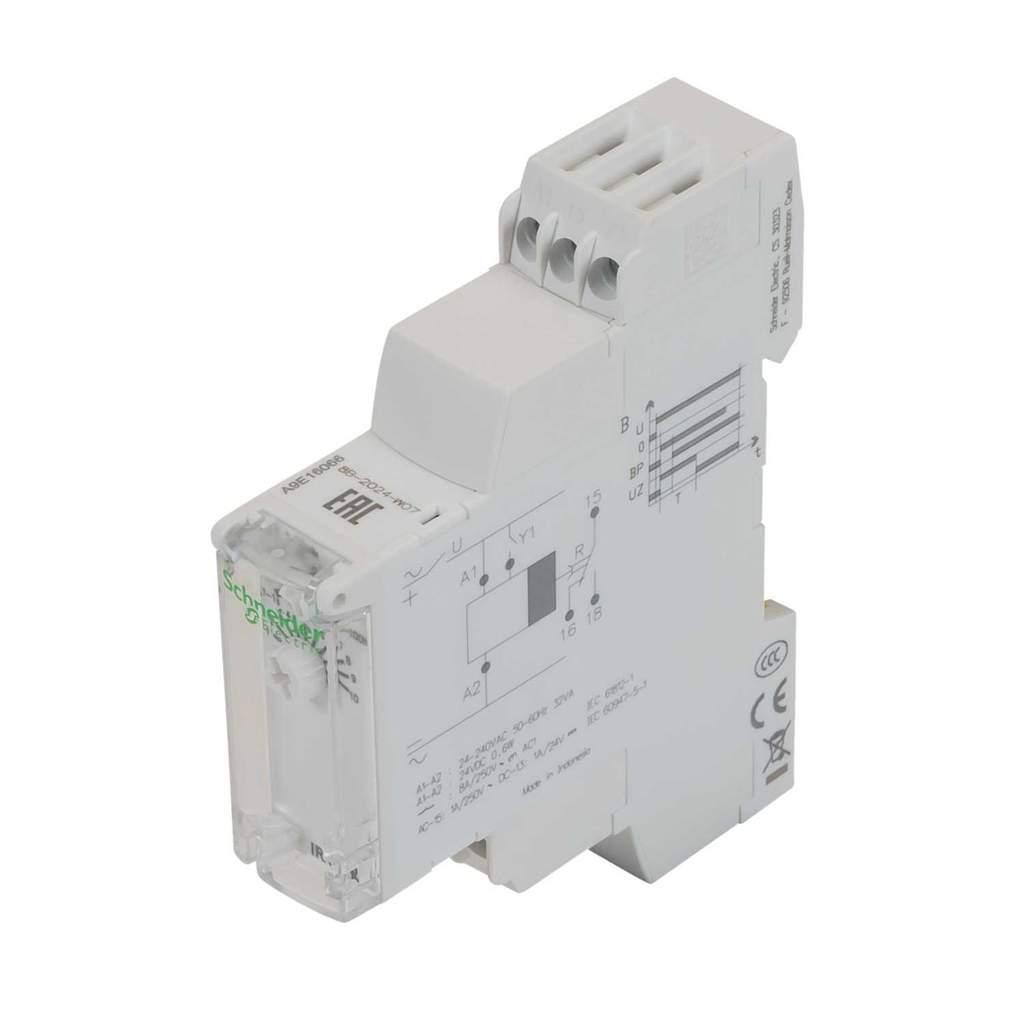

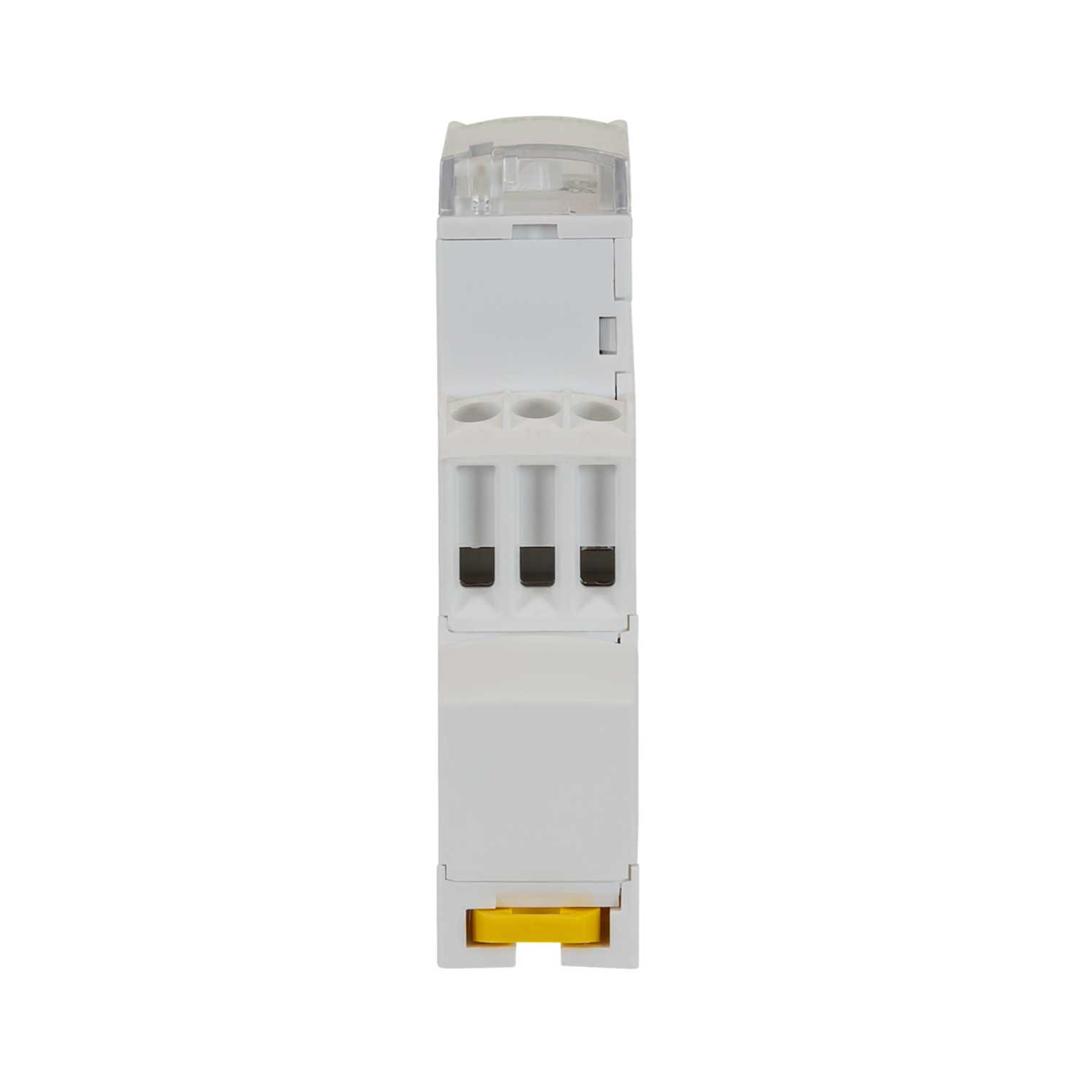

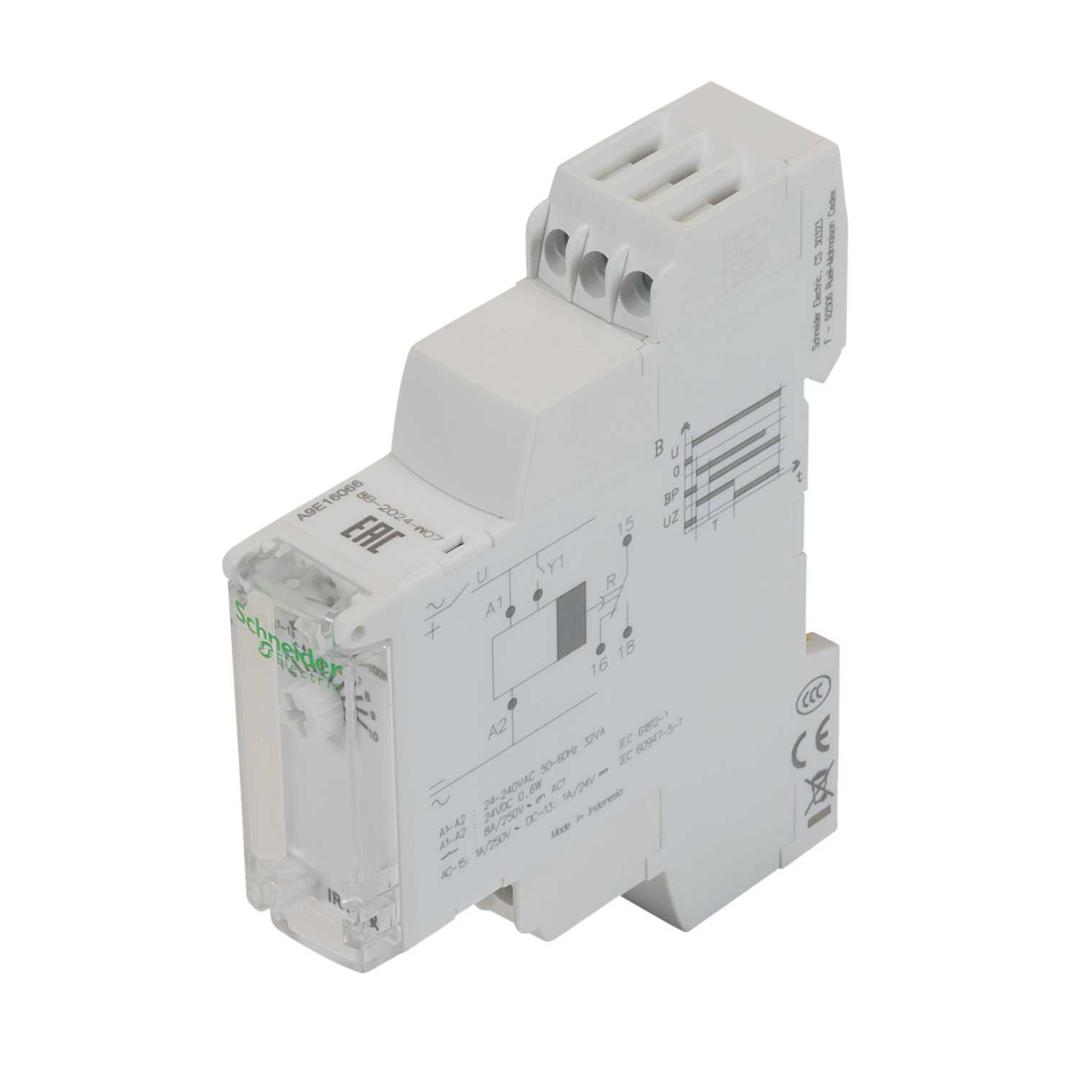

Schneider 24-240VAC/24V DC IRTB Time Delay Relay Acti9
Part Number: A9E16066
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Delays de-energizing of a load upon closing of an auxiliary contact (pushbutton)
- Load is de-energized at the end of time delay T
- Single time delay cycle starts at closing of an auxiliary contact (pushbutton)
- Time delay range: 0.1s to 100h
- 21A (AC1) rated at 250VAC
- DIN rail mounted
- Battery Back Up
- No
- Colour
- White/Green
- Contact Configuration
- 1 CO
- Current Rating
- 21A
- Depth
- 72mm
- Dimensions
- (H)93 mm x (W)18 mm x (D)72 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 93mm
- Manual Override
- No
- Material
- Plastic
- Minimum Switching Time
- 0.1s
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Operating Temperature Range
- -5 - +55°C
- Packaging Types
- Each
- Product Range
- Acti9
- Type
- Time Delay Switch
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 250V AC
- Weight
- 0.066kg
- Width
- 18mm
