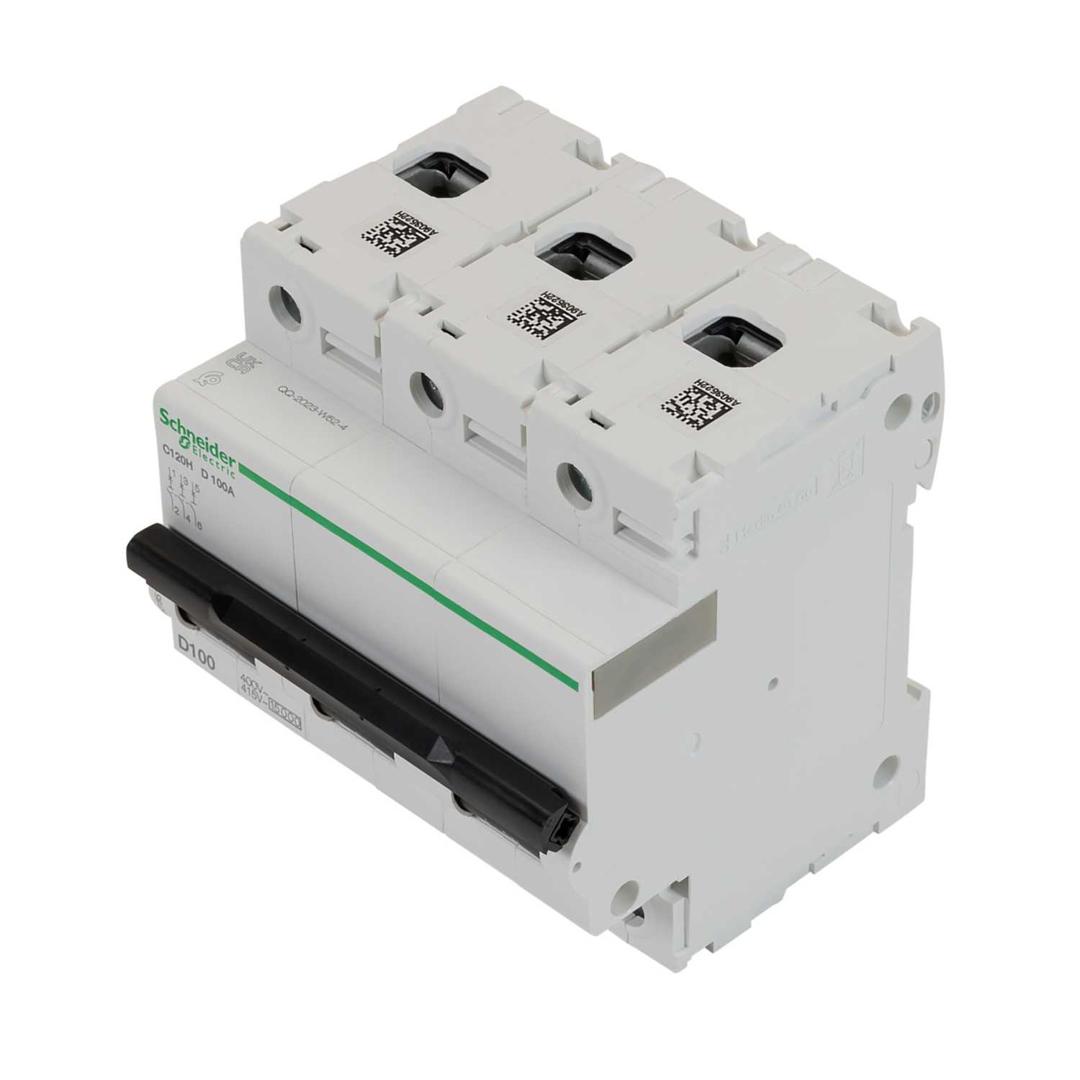

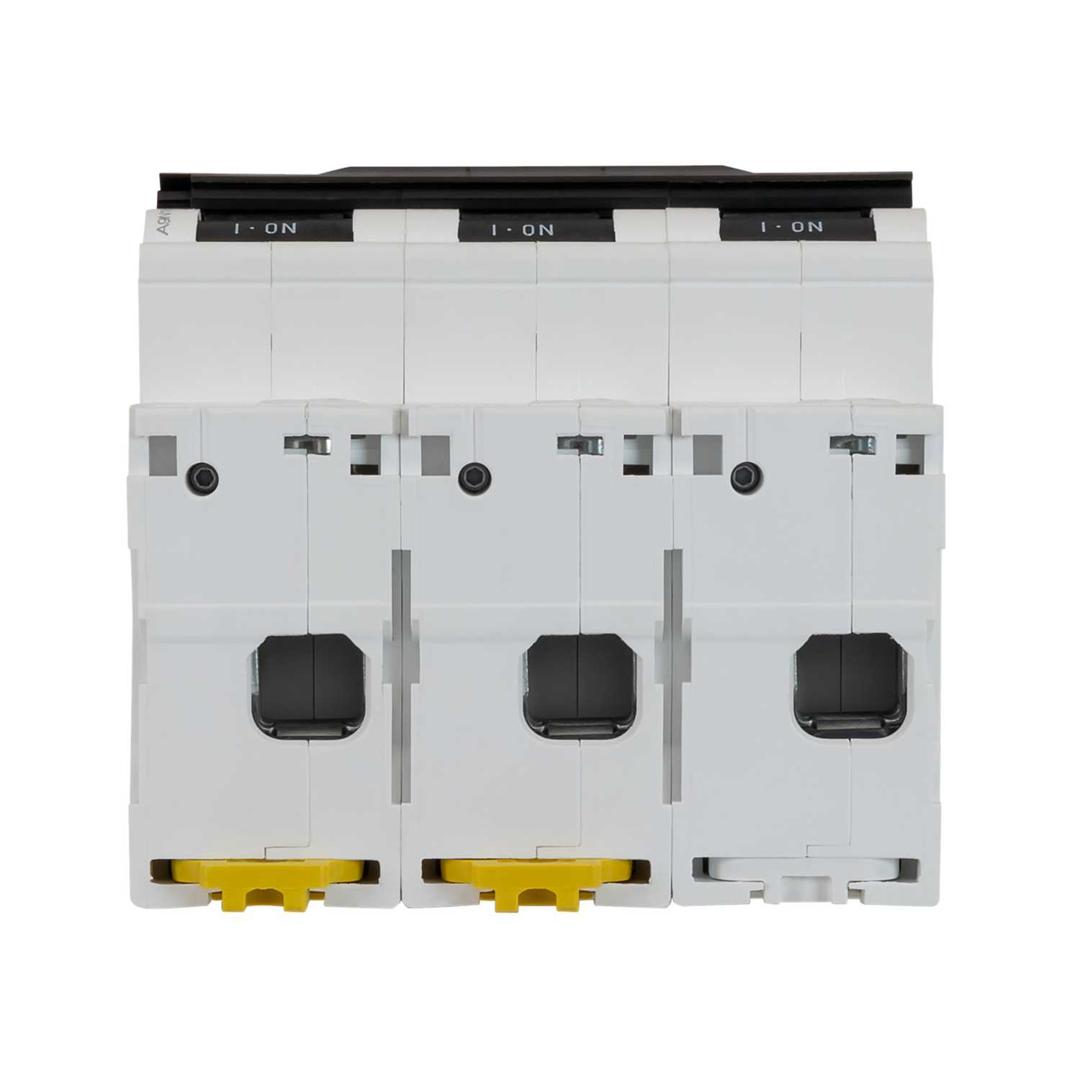

Schneider 100A 3 Pole 15kA D Curve Acti9 C120H MCB
Part Number: A9N18513
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 phase miniature circuit breaker, 4.5 modules wide
- Thermal-magnetic tripping for overload and short circuit protection
- Positive contact and trip indication
- 3.5 N m tightening torque on connections
- Provision for padlocking
- Suitable for industrial isolation, according to IEC/EN 60947-2 standard
- Colour
- White/Green
- Current Rating
- 100A
- Depth
- 73mm
- Dimensions
- (H)81 mm x (W)81 mm x (D)73 mm
- Guarantee
- 18 Months
- Height
- 81mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 4.5
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- Acti9
- Short Circuit Rating
- 15kA
- Standards
- EN/IEC 60898-1 EN/IEC 60947-2 IEC 60529 IEC 60068-1
- Tripping Characteristics
- D Curve
- Type
- MCB
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 400V AC
- Weight
- 0.577kg
- Width
- 81mm
