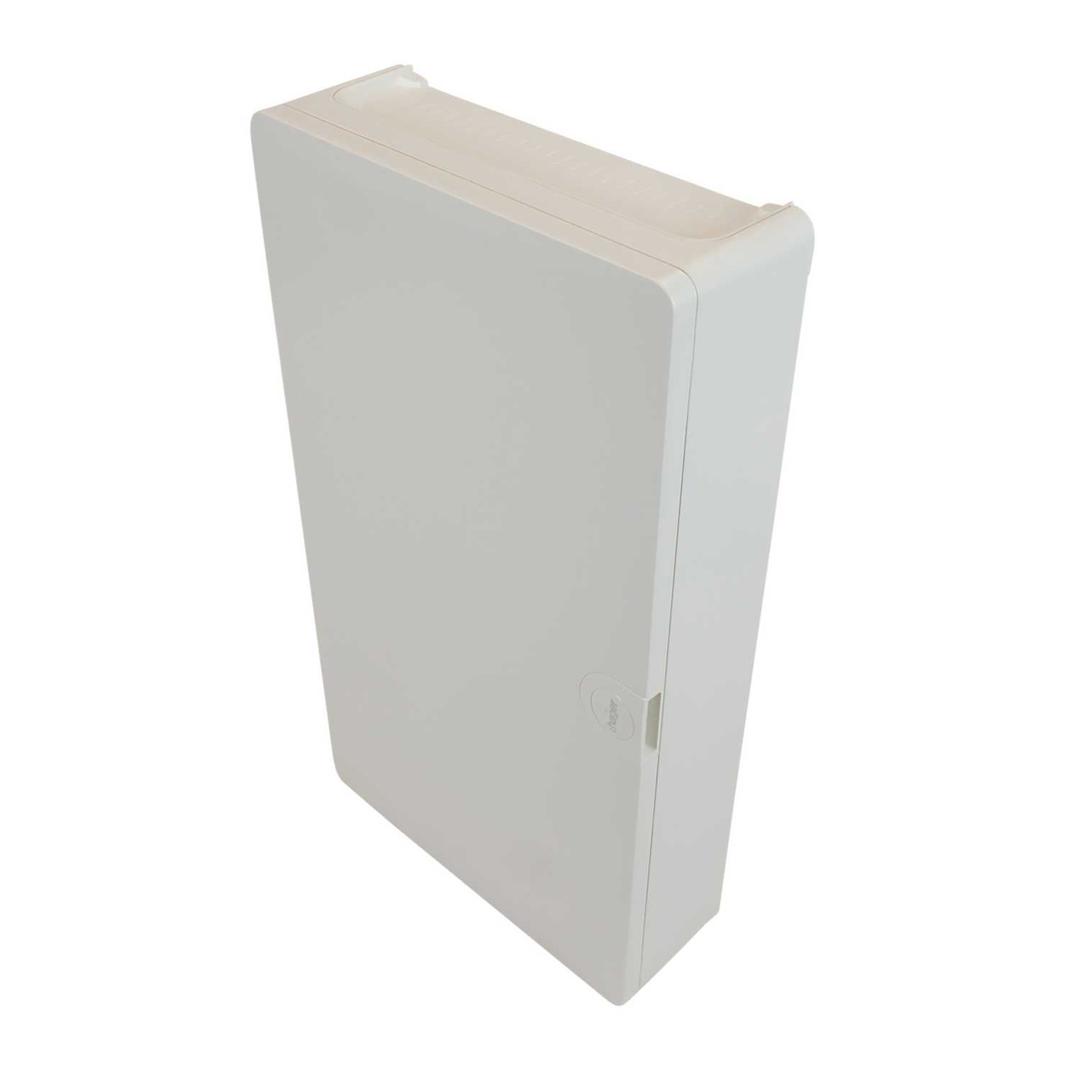

Hager 36 Way Surface Mount Loadcentre Plain Door
Part Number: VS312PT
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

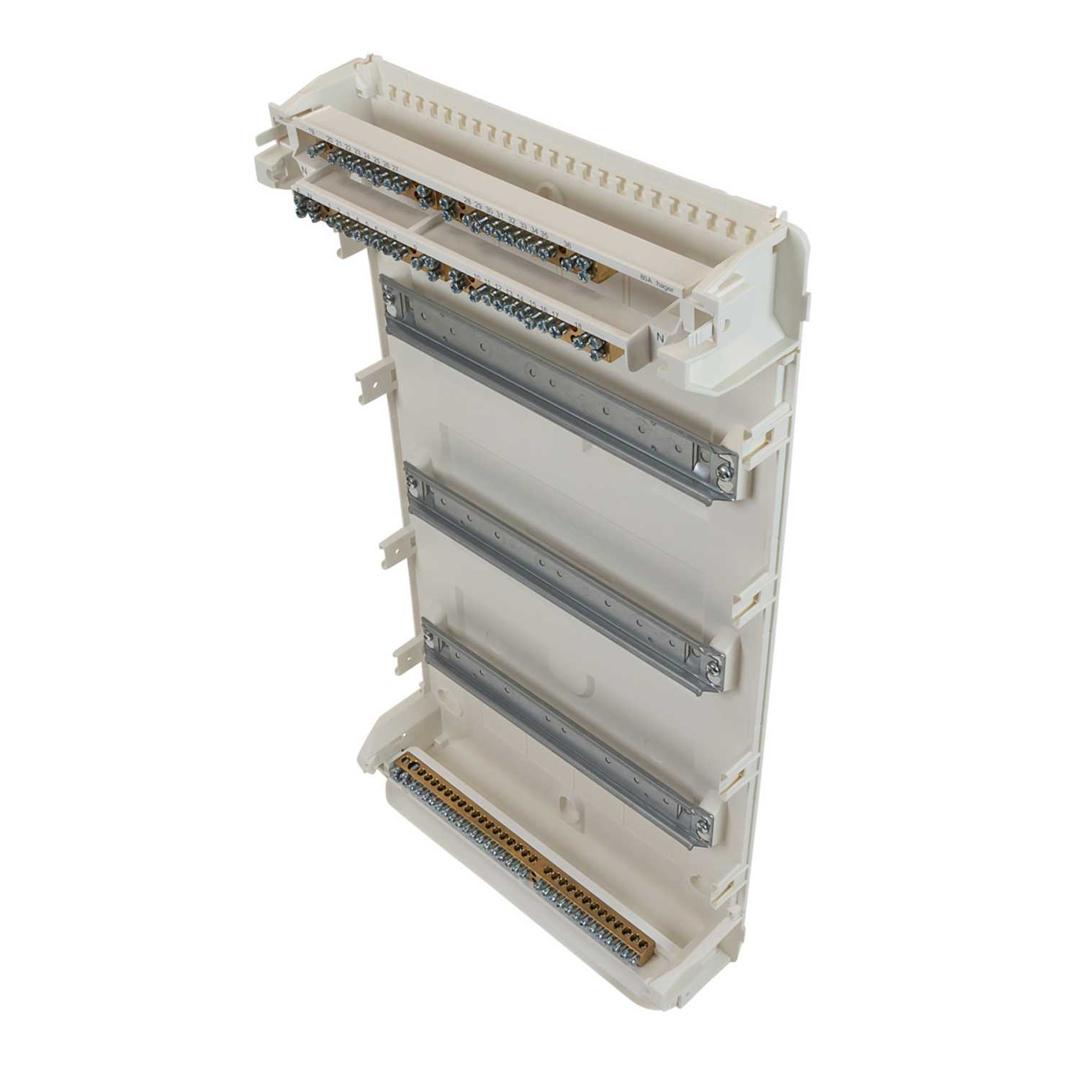

- 36 module switchboard enclosure
- 3 rows of 12 modules complete with single phase busbar to suit
- Suitable for all Hager modular circuit protection and for devices up to 70mm installation depth
- Removable neutral and earth bars rated at 80A

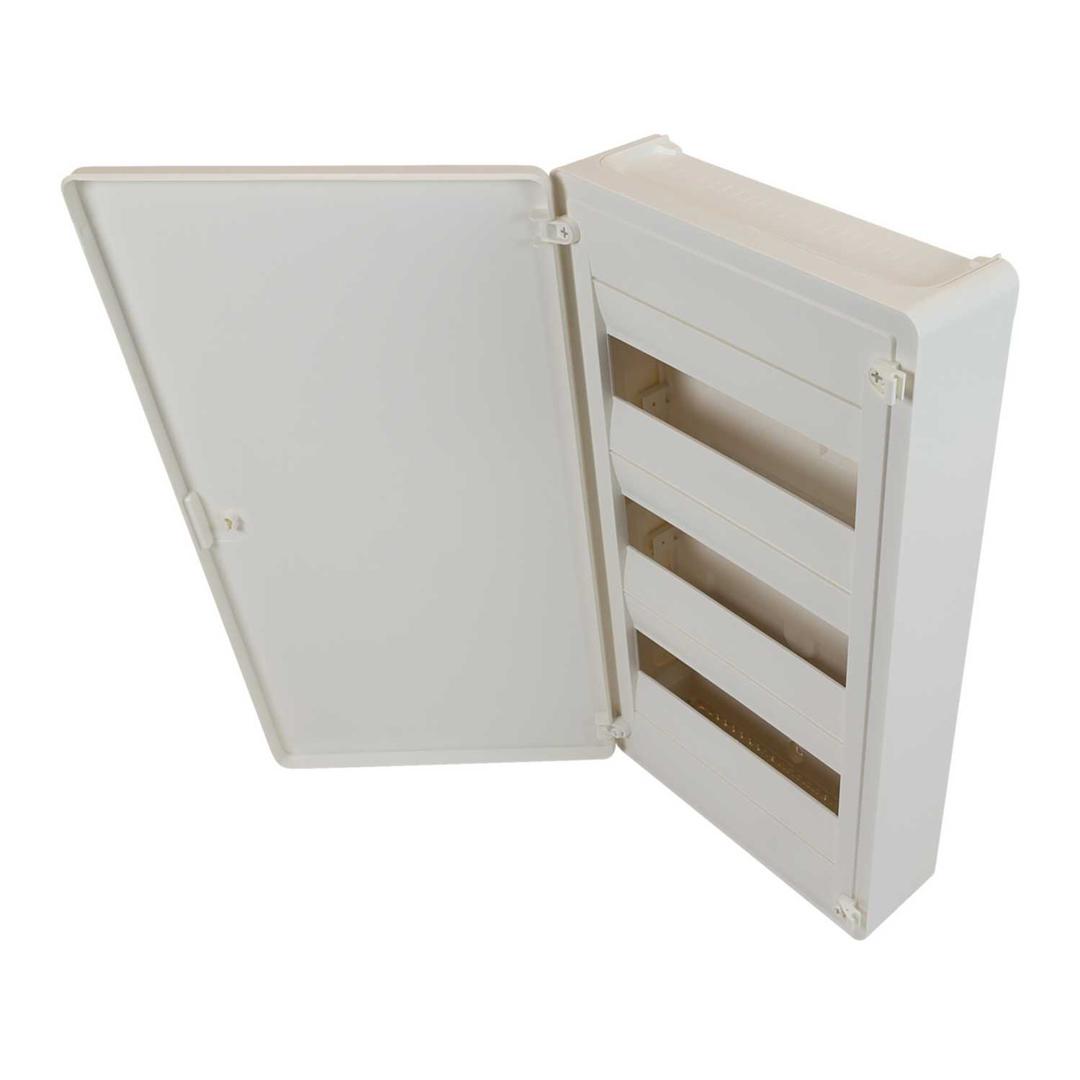

- Plain hinged door, can be fitted on right or left and opens up to 180°
- Optional lock and keys (purchased separately)
- IP40 with door closed
- Class II double insulated
- Supplied with pole fillers and circuit identification
- Colour
- White
- Current Rating
- 80A
- Depth
- 99mm
- Dimensions
- (H)500 mm x (W)282 mm x (D)99 mm
- Guarantee
- 2 Years
- Height
- 500mm
- Ip Rating
- IP30
- Material
- Plastic
- Mounting
- Surface
- Number Of Modules
- 36
- Packaging Types
- Each
- Product Range
- Golf
- Standards
- AS/NZS 61439-3 AS/NZS 5112
- Type
- Loadcentre
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 400V AC
- Weight
- 2.917kg
- Width
- 282mm
