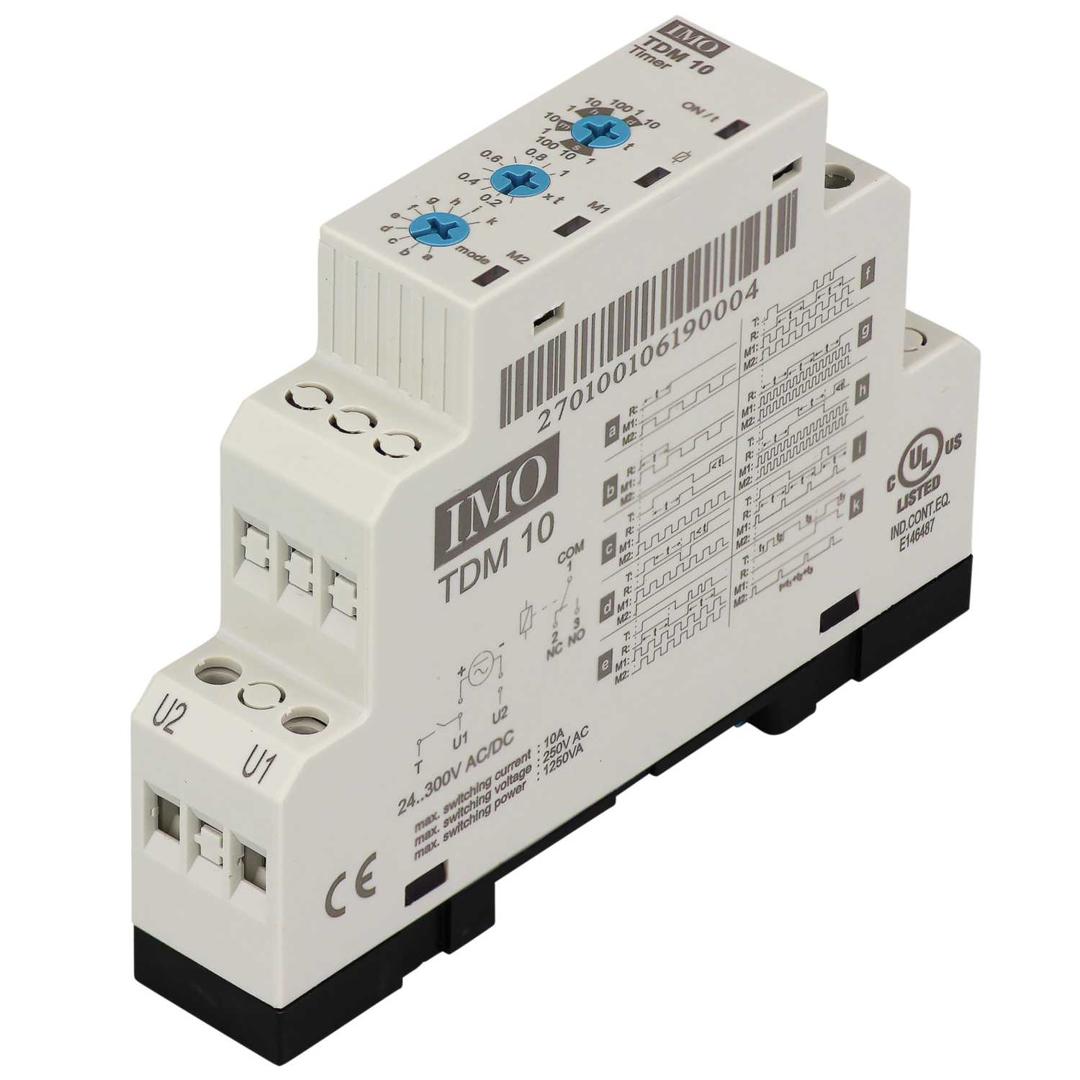

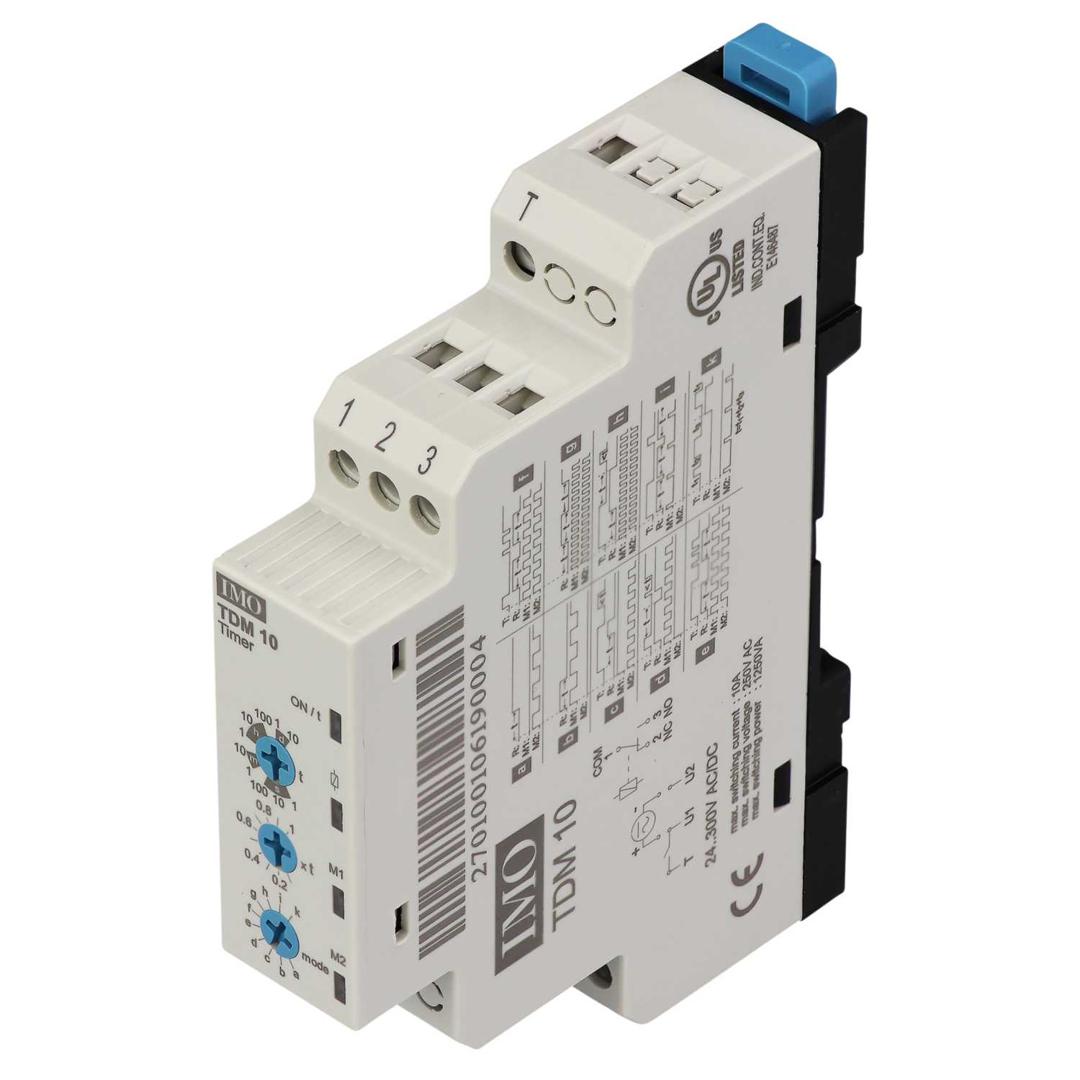

IMO 1 Pole DIN Mount 24-230V AC/DC 10 Functions Multifunction Timer
Part Number: TM34C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Compact modular electronic timer
- Timer range of 0.1sec to 10 days
- Multiple supply voltage 24-300V AC/DC
- Protection against overvoltage and reverse polarity
- Self-extinguishing plastic housing
- IMO model number TDM10
- Battery Back Up
- No
- Colour
- Grey
- Contact Configuration
- 1 CO
- Current Rating
- 10A
- Depth
- 62mm
- Dimensions
- (H)90.4 mm x (W)17.5 mm x (D)62 mm
- Frequency
- 45/65 Hz
- Guarantee
- 2 Years
- Height
- 90.4mm
- IP Rating
- IP20
- Material
- Self-extinguishing Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Operation Type
- Multifunction
- Packaging Types
- Each
- Standards
- EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-4-11 EN 61000-6-1 EN 61000-6-3 EN 55011
- Timer Configuration
- 0.1 sec - 10 days
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Rating
- 250V AC
- Weight
- 0.09kg
- Width
- 17.5mm
