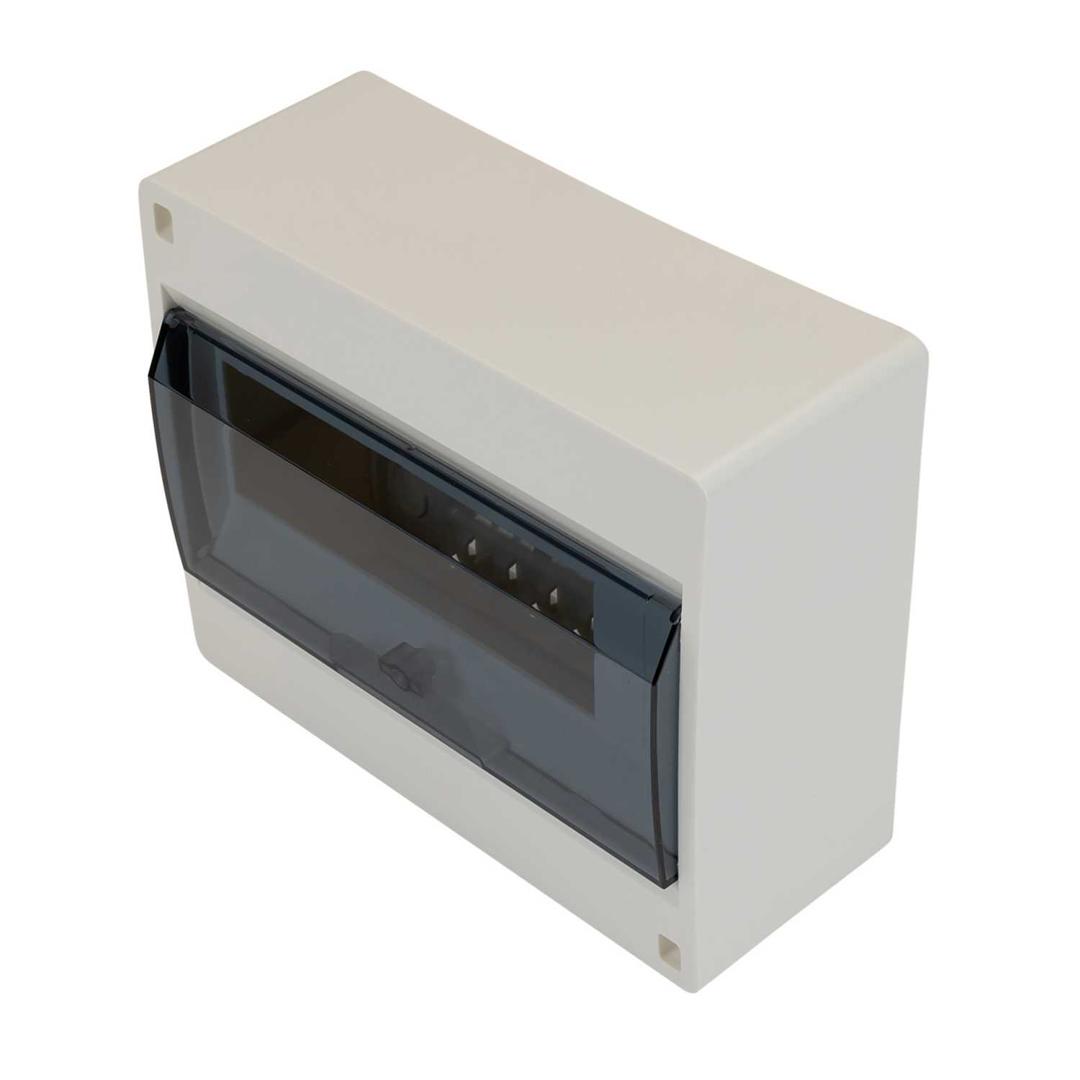

Hager 10 Module PVC Surface Mount Enclosure with Transparent Door
Part Number: VD110TT
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Suitable as pole covers and small loadcentres for DIN mounted devices up to 70mm installation depth
- Multiple mounting and cable entry positions

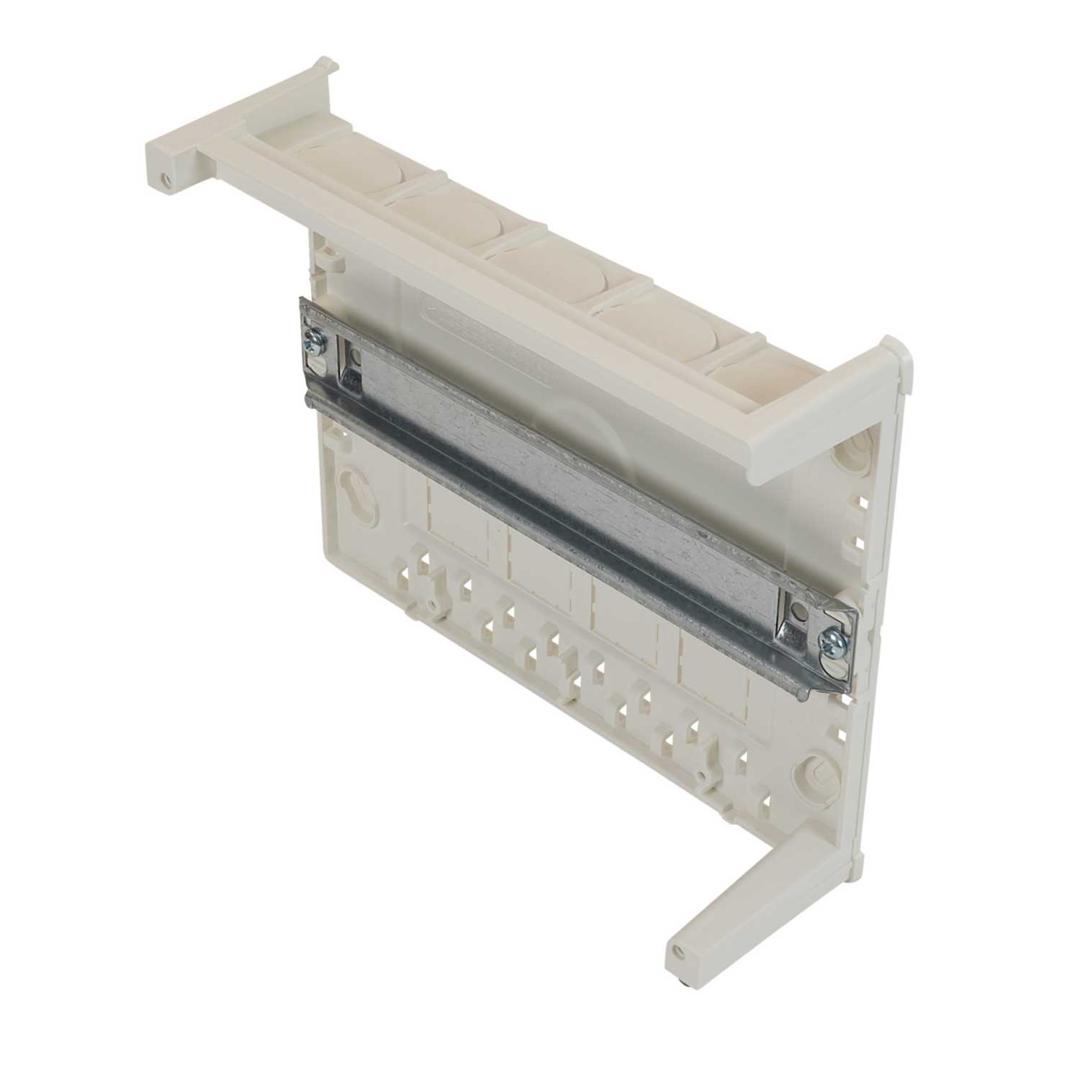

- Includes DIN section
- Transparent door, hinged at top
- Can be tamper sealed with wire
- 80A neutral and earth bars included
- Colour
- White
- Compliance
- IK07
- Current Rating
- 63A
- Depth
- 91mm
- Dimensions
- (H)170 mm x (W)206.5 mm x (D)91 mm
- Din Rail
- Yes
- Door Type
- Hinged
- Guarantee
- 2 Years
- Height
- 170mm
- Ip Rating
- IP30
- Material
- Plastic
- Mounting
- Surface
- Number Of Modules
- 10
- Packaging Types
- Each
- Product Range
- VD Series
- Standards
- AS/NZS 5112 AS/NZS 61439-3
- Type
- Switchboard Enclosure
- Unspsc V18
- 39121318
- Unspsc V24
- 39121318
- Voltage Rating
- 400V AC
- Weight
- 0.699kg
- Width
- 206.5mm
