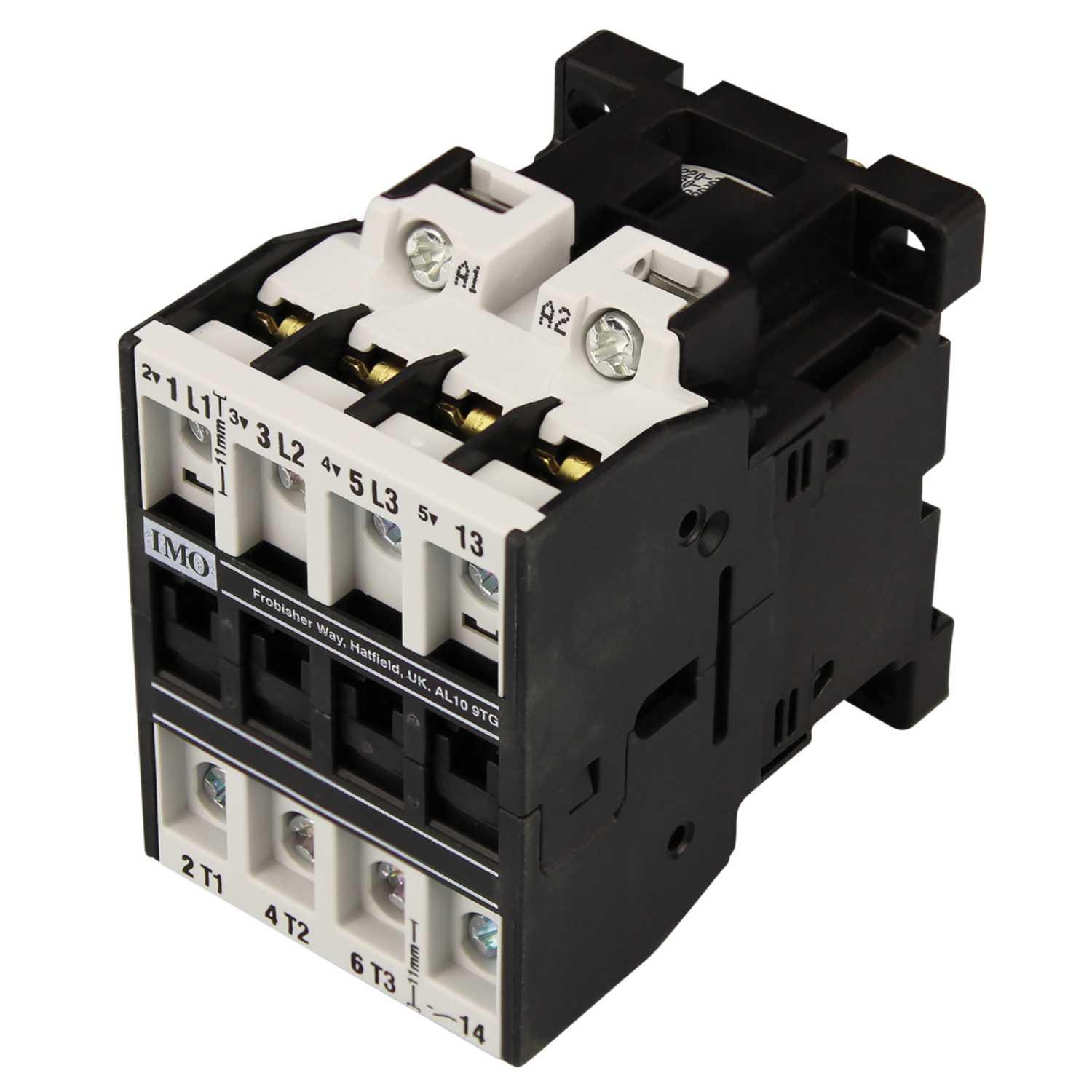

IMO 7.5kW AC3 400V AC Coil 3 Pole DIN Mounted Contactor with 1NO Auxiliary
Part Number: CR04C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Simple and robust construction
- High mechanical and electrical life
- Coil fitted as standard
- DIN or panel mounting
- IMO model number MC18N-S-10400AC
- Auxiliary Contact
- 1 NO
- Coil Voltage
- 400V AC
- Colour
- Black/Grey
- Contact Configuration
- 3 NO
- Current Rating Ac1
- 32A
- Current Rating Ac3
- 18A
- Depth
- 65.5mm
- Dimensions
- (H)64.5 mm x (W)45 mm x (D)65.5 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 64.5mm
- K W Rating
- 7.5kW
- Material
- Metal/Plastic
- Mounting
- DIN Rail or Screw Mounting
- Number Of Poles
- 3 Pole
- Operating Temperature Range
- -40 - 40°C
- Packaging Types
- Each
- Standards
- EN 60947-4-1
- Storage Temperature Range
- -50 - 90°C
- Suitable For
- Heating Motor and Lighting Loads
- Voltage Rating
- 690V
- Weight
- 0.25kg
- Width
- 45mm
