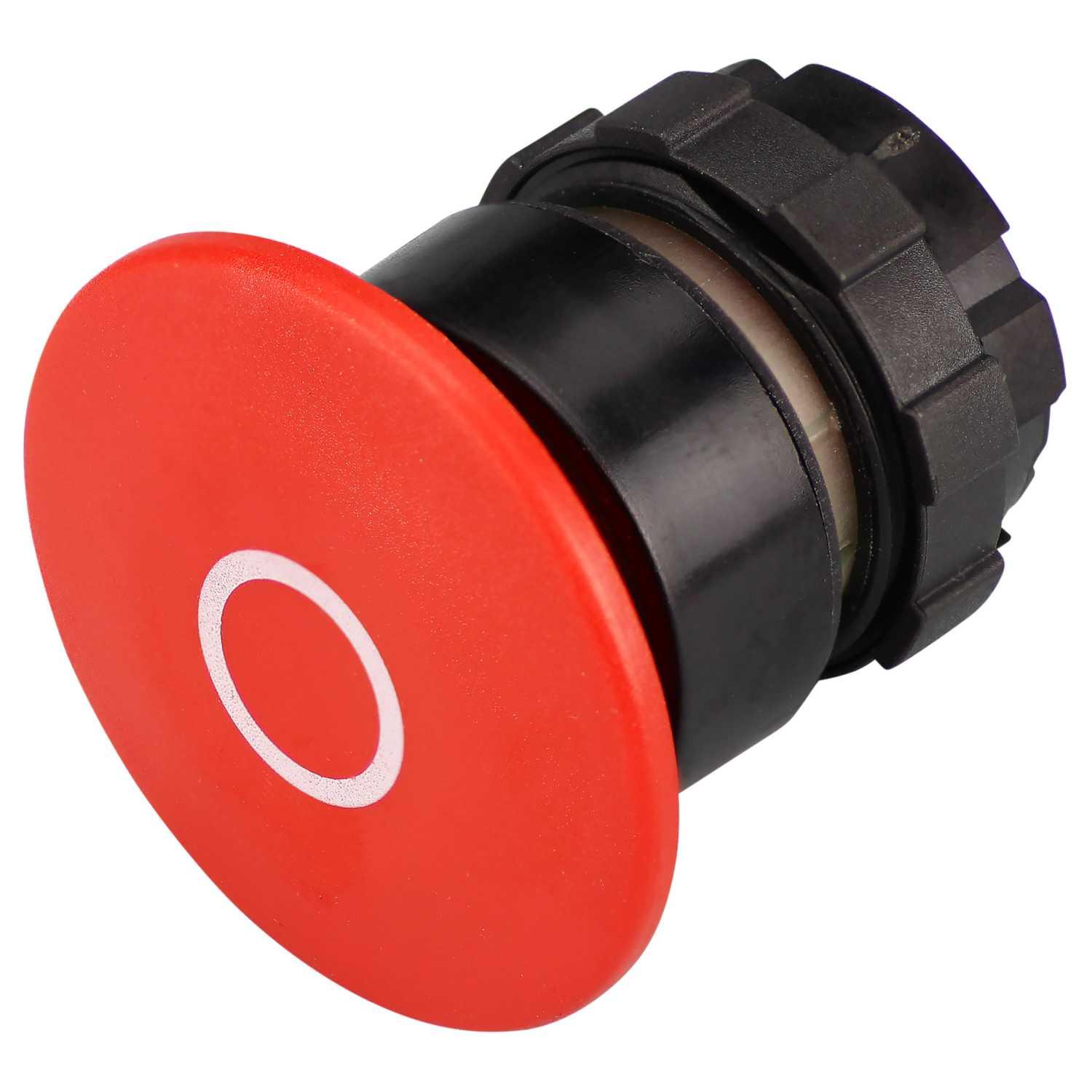

IMO 40mm Momentary Spring Return Emergency Stop Pushbutton
Part Number: PB09C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Red mushroom pushbutton head only
- Momentary contact spring release
- Non latching
- Snap on mounting collar and contact blocks supplied separately
- Flame retardant material construction
- IMO model number BS3P14RED-O
- Colour
- Red/Black
- Cut Out
- 22.5mm
- Depth
- 24mm
- Diameter
- 40mm
- Dimensions
- (Dia)40 mm x (D)24 mm
- Guarantee
- 1 Year
- Head Type
- Mushroom
- Ip Rating
- IP65
- Material
- Plastic
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- -20°C
- Mounting
- Panel
- Operation Type
- Momentary
- Packaging Types
- Each
- Standards
- EN 60947-5-1
- Weight
- 0.04kg
